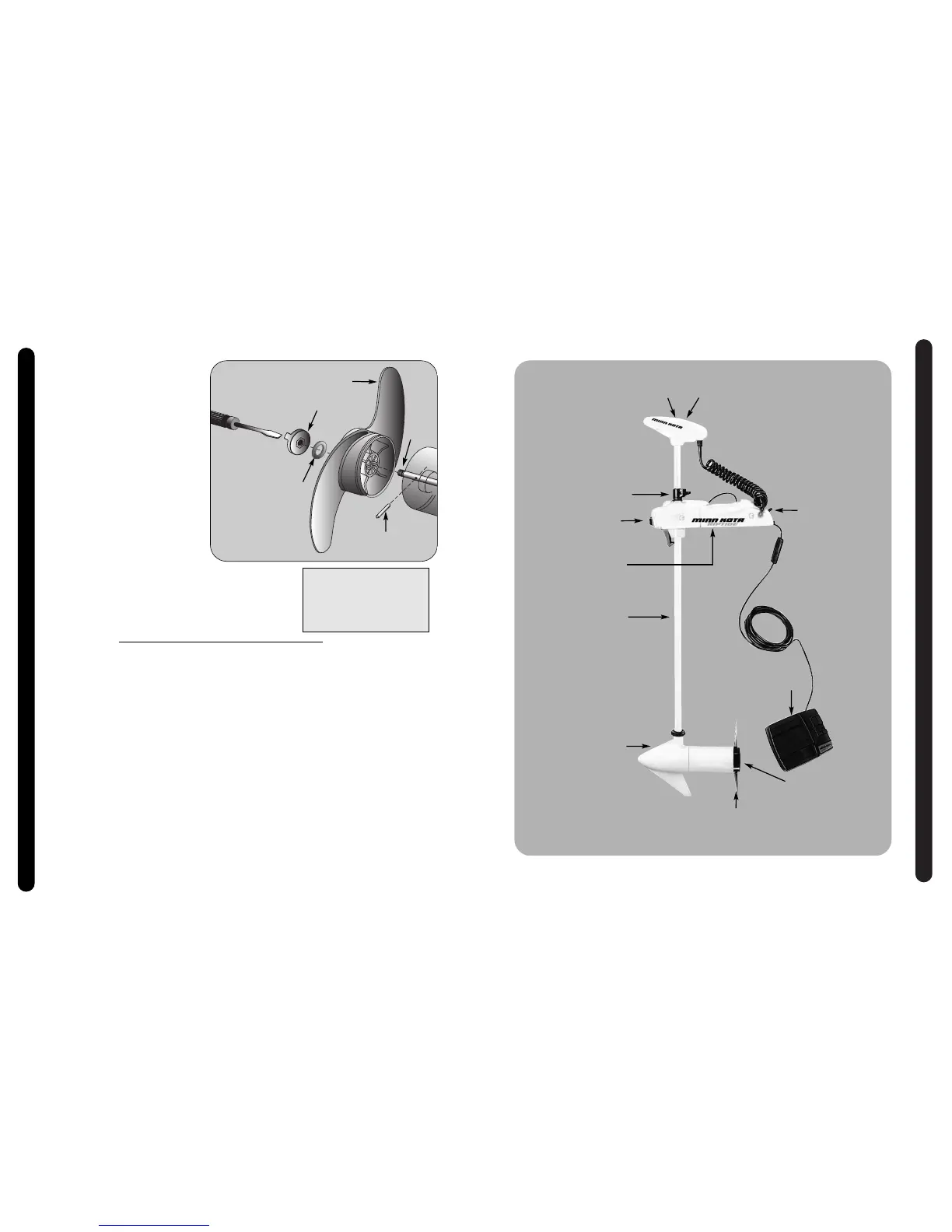

FFEEAATTUURREESS
3
Flexible
LLiiffeettiimmee WWaarrrraannttyy
Composite Shaft
Depth / Drive Collar
Maximizer /
Permanently
Sealed Electronics
AAddvvaanncceedd SSaallttwwaatteerr
CCoorrrroossiioonn PPrrootteeccttiioonn::
3-mil acrylic paint
E-coated epoxy
Chromate conversion coat
7-step cleaning process
Premium marine alloy
AutoPilot ON /
OFF Switch
AutoPilot ON /
OFF LED
Weedless Wedge™
Propeller
Replaceable
Sacrificial Anode
Extends Protection
Against Galvanic
Corrosion
Tilt Lock Lever
Allows Easy
Retraction To
Storage Position
Cool Running
Permanent Magnet
Motor
Grip Glide Lever
Low Profile
Foot Pedal
PPRROOPPEELLLLEERR RREEPPLLAACCEEMMEENNTT::
1. Hold the propeller and loosen the
anode/nut with a pliers or a wrench.
2. Remove anode/nut and washer. If the
drive pin is sheared/broken,
you will need to hold the shaft steady
with a screwdriver blade pressed
into the slot on the end of the shaft.
3. Turn the old prop to horizontal ( as
illustrated ) and pull it straight off.
If drive pin falls out, push it back in.
4. Align new propeller with drive pin.
5. Install prop washer and anode/nut .
6. Tighten anode/nut 1/4 turn past snug or
to 25-35 inch lbs. Be careful, over tight-
ening the anode/nut can damage the
prop.
NNOOTTEE::
The weedless wedge propeller is designed to provide
absolute weed free operation with very high efficiency. To
maintain top performance, the leading edge of the blades
must be kept smooth. If this edge is rough or nicked,
restore to smooth by sanding with fine sandpaper.
PPRROOPPEELLLLEERR RREEPPLLAACCEEMMEENNTT TTRROOUUBBLLEESSHHOOOOTTIINNGG
TTRROOUUBBLLEESSHHOOOOTTIINNGG::
1. Motor fails to run or lacks power:
• Check battery connections for proper polarity.
• Make sure that the terminals are clean and
corrosion free.
• Check the battery water level. Add water
if needed.
2. Motor loses power after a short running time:
• Check battery/batteries charge, if low, restore
to full charge.
3. Motor does not steer.
• Make sure the drive/depth collar is tight and
fully engaged with the drive motor.
4. Motor does not respond to foot pedal commands.
• Make sure the cable connector plugs at the
drive mount are secure.
5. Control head vibrates during normal operation:
• Remove and rotate the prop 180°. See removal
instructions in prop section.
6. No automatic steering.
• Check that the AutoPilot switch is ON.
• Turn the AutoPilot switch OFF then On to reset
the system.
7. Erratic automatic steering.
• Observe motor head for excessive vibration.
Inspect prop and prop shaft for damage.
• Make sure the motor is mounted within 5°of
level. The internal compass must be level to
rotate freely.
CAUTION: DISCONNECT
THE MOTOR FROM THE
BATTERY BEFORE BEGIN-
NING ANY PROP WORK OR
MAINTENANCE.
WEEDLESS
PROPELLER
DRIVE PIN
ANODE / NUT
WASHER
SLOT
10
