Dowel Drill Manual

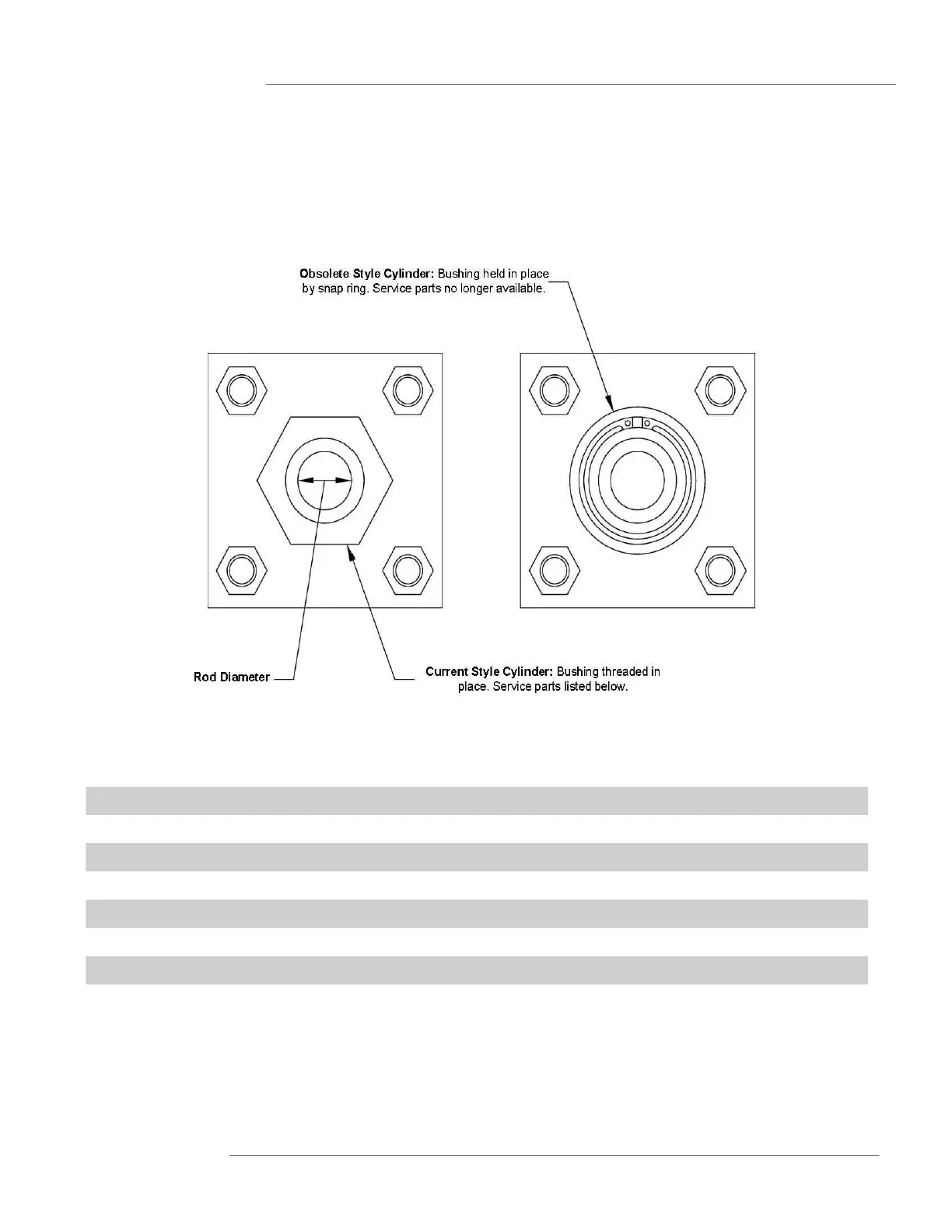

CYLINDER INFORMATION
1.50” (3.81 cm) Bore 5/8” (1.59 cm) A12899-1.500
2.50” (6.35 cm) Bore 1” (2.54 cm) A12895-2.500 5/8” (1.59 cm) A12899-2.500
3.25” (8.26 cm) Bore 1 3/8” (3.49 cm) A12895.3.250 1” (2.54 cm) A12899-3.250
4.00” (10.16 cm) Bore 1” (2.54 cm) A12899-4.000
5.00” (12.70 cm) Bore 1” (2.54 cm) A12899-5.000
6.00” (15.24 cm) Bore 1 3/8” (3.49 cm) A12899-6.000
7.00” (17.78 cm) Bore 1 3/8” (3.49 cm) A12899-7.000
Rod Diameter Service Kit Part # Rod Diameter
Oversize Rod Cylinders (Feed) Standard Rod Cylinders
