Minshine T24-V2 - Technical Data T24 Serials

Smart eBike Drive system v2.101
5

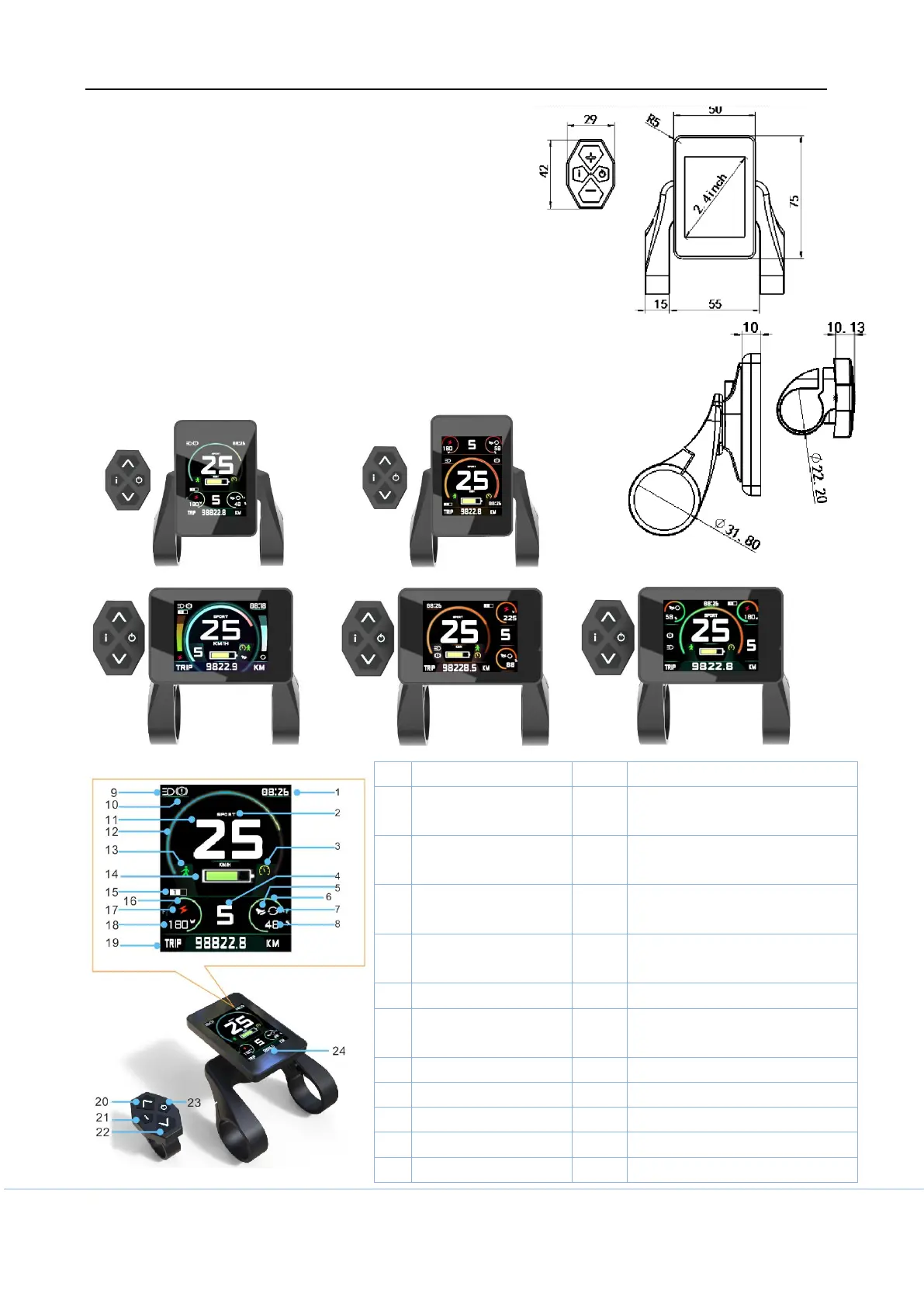

3 Technical Data(T24 Serials)
◆ Power: 15 - 60VDC /60 ma
◆ Screen: 2.4” Colorful TFT
◆ Button: Transparent silicon rubber
with LED Backlight
◆ Fix Position: Middle
◆ Communication: UART/TS232/CAN
◆ Material: ABS
◆ Ingress Protection: IP54
(dust and splash water protected)
◆ Customization :Valiable
T24-V1 T24-V2
T24-H1 T24-H2 T24-H3
1
Colock
13
Walk Assistance Indicator
2
Riding mode
Indicator
14
Battery Indicator
3
Cruise indicator
15
Double battery system
indicator
4
Assistance level
indicator
16
Power indicator
5
PAS activated
indicator
17
Power indicator
6
Drive indicator
18
Power value
7
Throttle activated
indicator
19
Information indicator
8
Input Drive Value
20
UP button
9
Light indicator
21
INFO button
10
Brake indicator
22
DOWN button
11
Bike speed
23
POWER button
12
Bike speed
24
Light sensor
