Minuteman SCV2832E - 6 Side Squeegee Adjustment (Cylindrical)

6. Side Squeegee Adjustment
SCV2426 & SCV2832E Only
Cylindrical Decks
The side squeegees on the
cylindrical decks can be
adjusted by loosening the two
SCV2426
&
SCV2832E
Only
adjusted
by
loosening
the
two
black knobs and moving the
squeegee assemble up or
down.
B
E
The brush assembly may be
accessed by removing the
yellow knob C. The squeegee
assembly is hinged at D
E
assembly
is
hinged
at
D
.
Remove the three wing nuts
that mount the brush idler
bearing assembly E and
bearing
assembly
E
and
remove the brush roll.
Repeat the process on both
sides of the machines

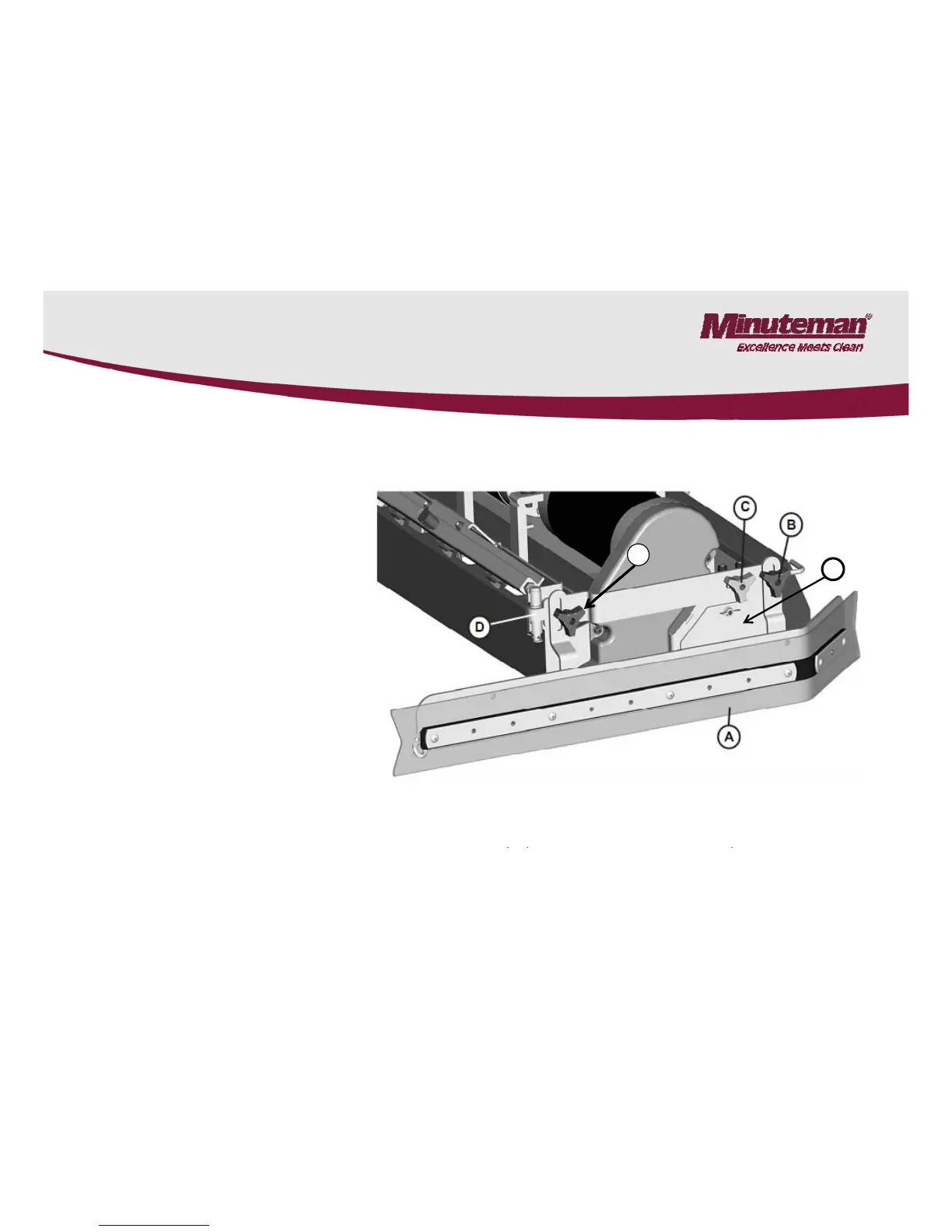

A-Side Squeegee
B-Black Adjustment Knob
C
-
Yellow Brush Access Knob
sides
of
the
machines
C
Yellow
Brush
Access
Knob
D-Side Squeegee Hinge
E-Bush Access Plate
