Mirage IVEH121A - Page 41

41

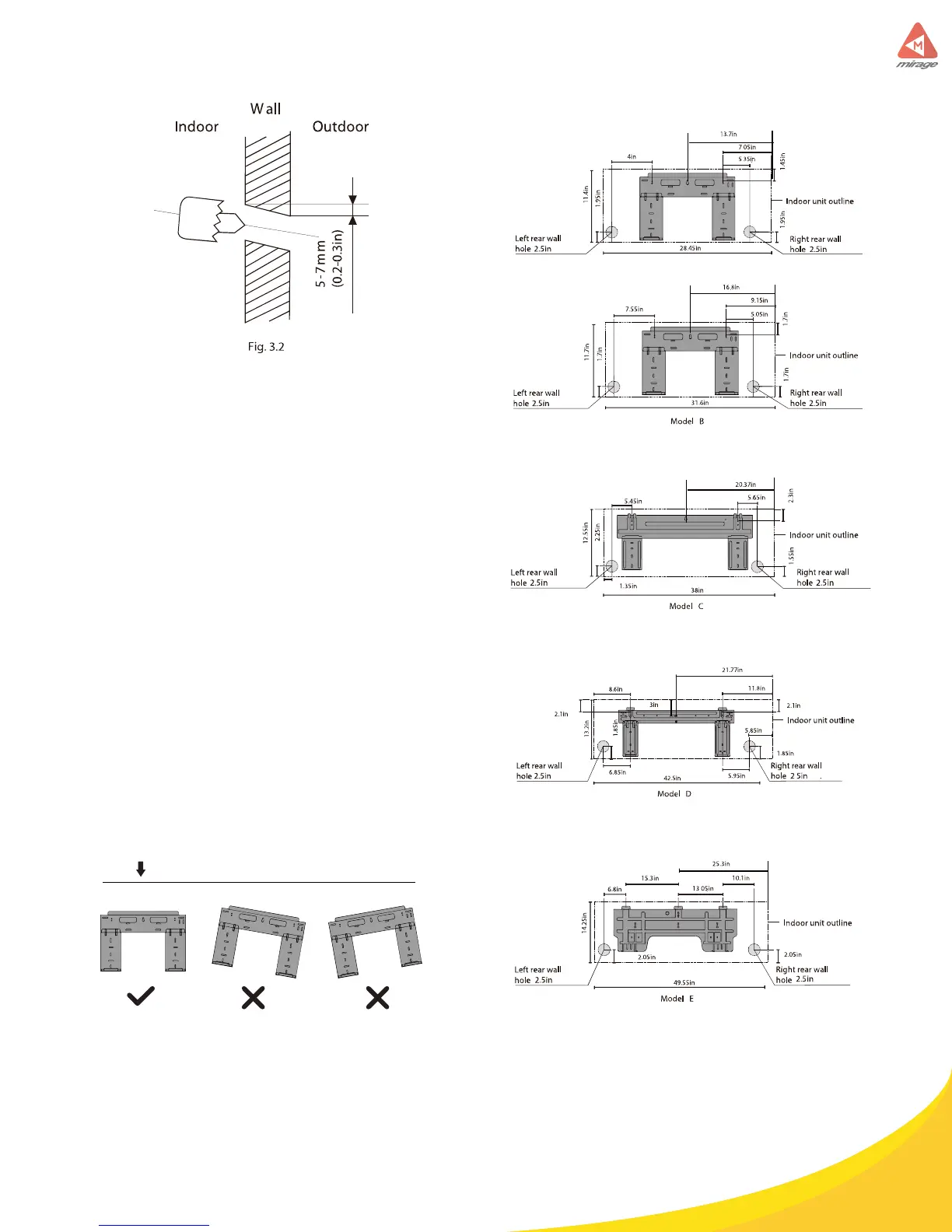

MOUNTING PLATE DIMENSIONS
Di󰀨erent models have di󰀨erent mounting plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
show di󰀨erent types of mounting plates along
with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• Width of indoor unit relative to plate
• Height of indoor unit relative to plate
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Correct orientation of Mounting Plate
