MIRI AD2006+ User Manual

Page 1 of 5
Miri Technologies, 2 Fellowship Road, Gnangara, Western Australia 6077 | Tel: +61 89 409 8998 | www.miri.com.au
1. Specifications
Each module is DIN rail mounting so as to negate the
need for additional DIN rail mounting terminals.
Overall dimensions - 160L x 60W x 50H

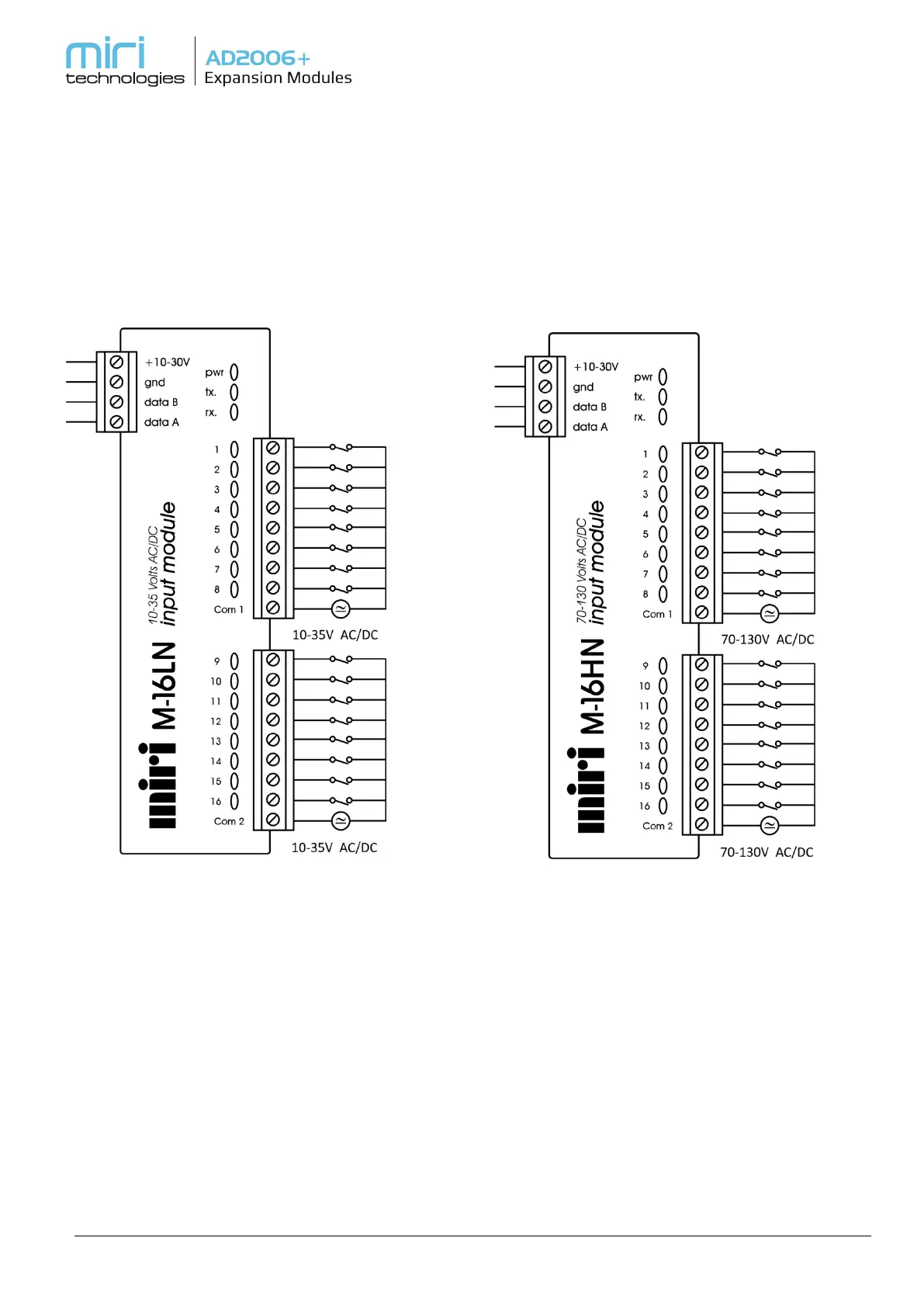

M-16LN Input Module
10-35 Volts AC/DC
Inputs per Module 16 Optically Isolated
Input Voltage Range 10-35 Volts AC or DC
Input Impedance 4k7 Ohms
Commons per Module 2 Separate groups of 8
Isolation 3.5kV
Supply Voltage 10-30VDC
Module Power Drain No Inputs Driven - 200mW
All Inputs Driven - 1.2W
M-16HN Input Module
70-130 Volts AC/DC
Inputs per Module 16 Optically Isolated
Input Voltage Range 70-130 Volts AC or DC
Input Impedance 27k Ohms
Commons per Module 2 Separate groups of 8
Isolation 3.5kV
Supply Voltage 10-30VDC
Module Power Drain No Inputs Driven – 200 mW
All Inputs Driven - 1.2 W
