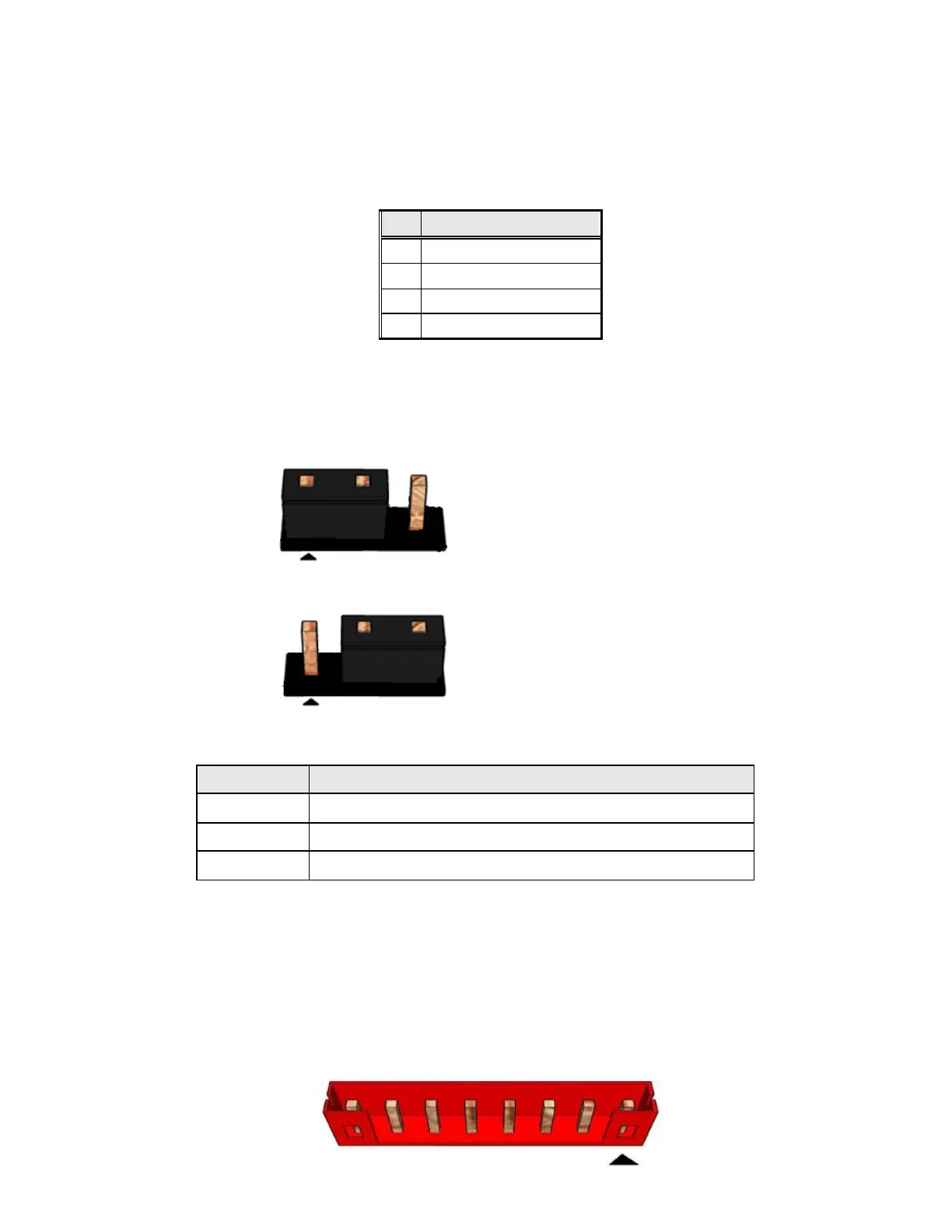

F i gu re 7 P roce s s or f a n h ea de r pi n -ou t
Pin
Signal
1
Ground
2
+12V
3
CPU_FAN_TACH
4
CPU_FAN_CTRL
T A B L E 7 P R O C E S S O R F A N H E A D E R
Inverter power voltage selection header
Pins 1&2: jumper position for 12V
Pins 2&3: jumper position for 19V
F i gu re 8 I n v e rt e r pow e r vol t a ge se l e cti on
Pin
Signal Name
1
12VDUAL_HDMI
2
BKLT_PWR
3
+19V_A
T A B L E 8 I N V E R T E R P O W E R V O L T A G E S E L E C T I O N H E A D E R
LVDS inverter power header
