5. Set Up and Connection to Other Devices
This amplifier is designed to be connected to speakers for audio playback and other audio source devices such as a CD player
or tuner. There are two ways of connecting: analog and digital. You may use either depending on the capability of the device
you wish to connect.

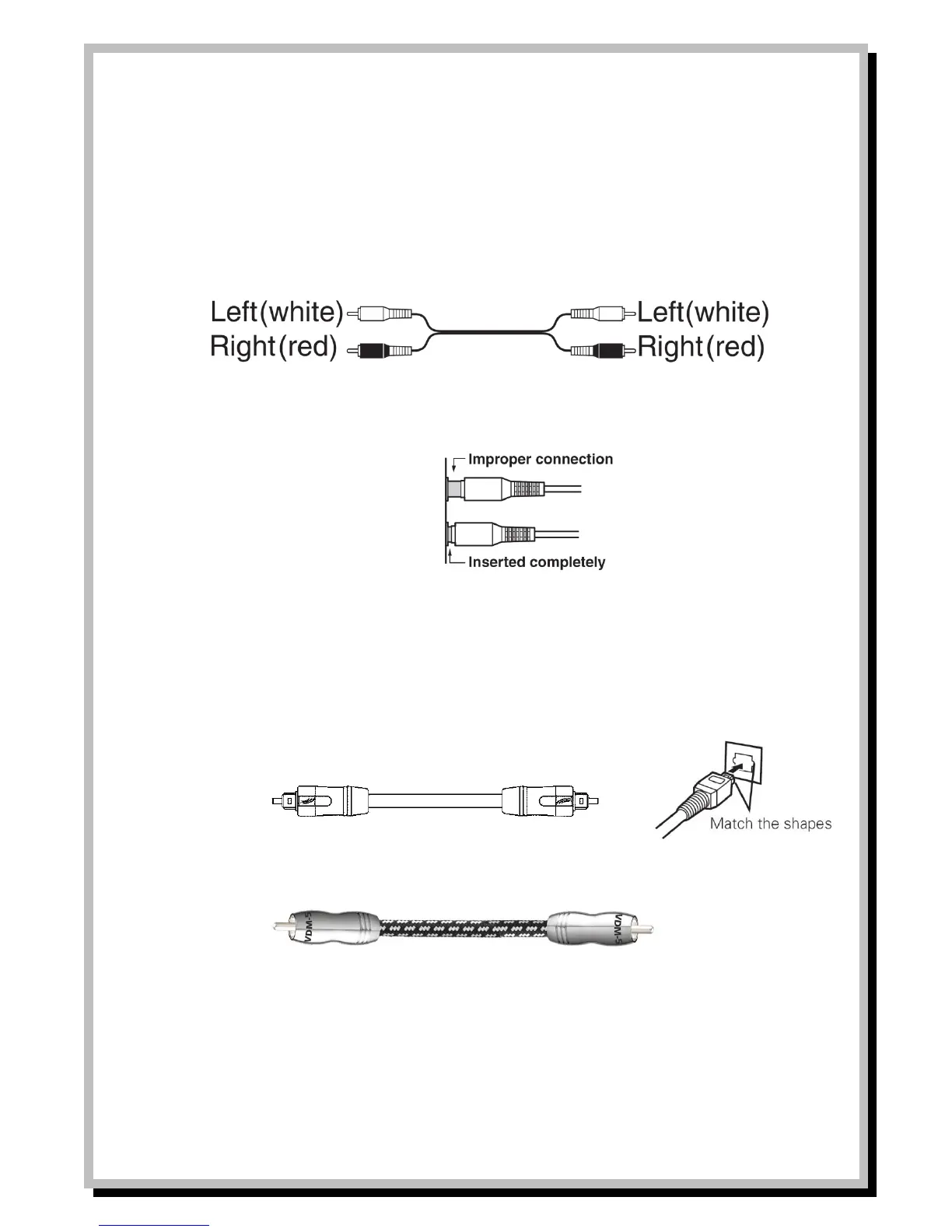

Correct Connection of Analog RCA Audio Cables
- Pay attention to the plug colours and the left and right channels when connecting RCA audio cables.
- Ensure a good connection by making sure to insert plugs completely. Failure to insert fully can cause noise or
malfunctions.
- To prevent unwanted interference keep audio cables as far apart from power cables as possible.
Correct Connection of Digital Cables
- There are two types of digital audio connection terminals
o OPTICAL
and
o COAXIAL
- Follow the instructions for the device you wish to connect to ensure the correct cable is used.
