Mitchell MIT6501 - Display Stored Data (Log Display)

-12-
(E) Display the data stored (LOG Display) ─ Function 3
1. Switch
⑪
the function rotary switch to turn on power and
no meter which function selected (Main page)
2. Press
⑥
SELECT button to enter the minor function
selection.
3. Press
⑦
(value-add) "up" or
⑧
(value-reduce) "down" to

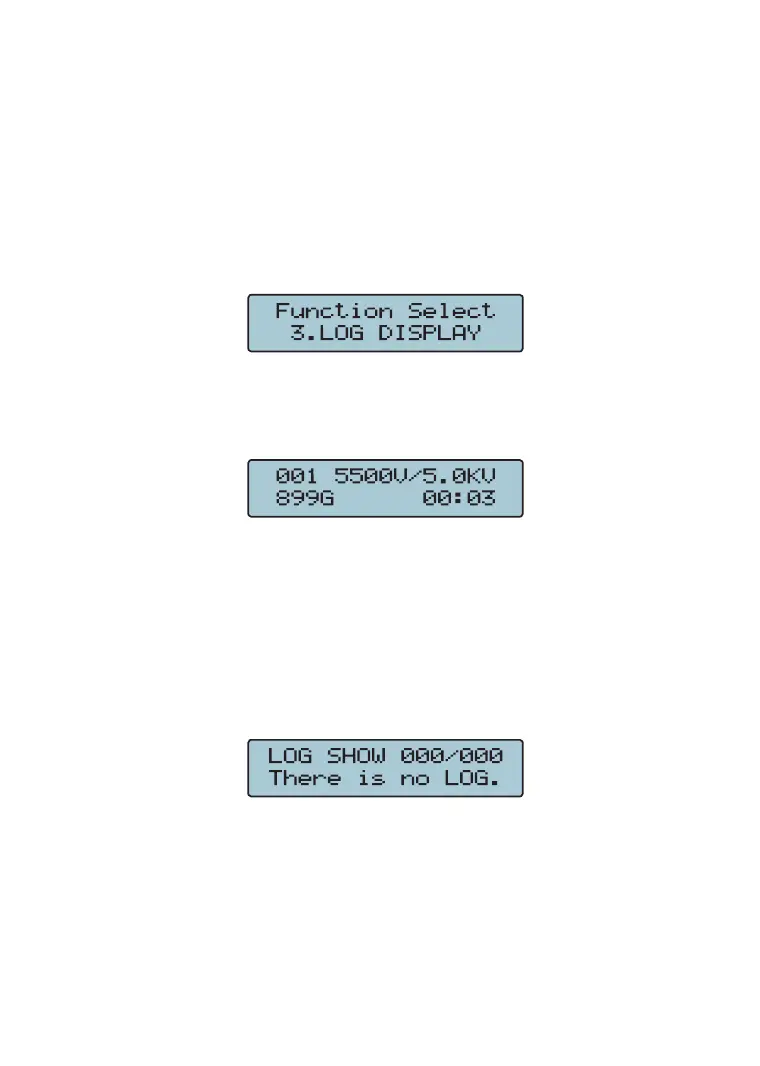

nd the displaying of data stored, LCD display the
following pictures respectively:
4. Press
⑨
(ENTER/SAVE), LCD displays the picture shown
in below:
5. Press
⑨
(ENTER/SAVE) to query the subpage of data
(include Resistance value, testing voltage, PI, DAR,
Saving Date & Time).
6. Press
⑦
(value-add) "up" or
⑧
(value-reduce) "down" to
select the required data value. If no data available, LCD
displays the picture shown in below:
7. After the query is over, press
⑩
(ESC) return back to the
minor function selection.
8. Press
⑩
(ESC) again to return back to the main page.
