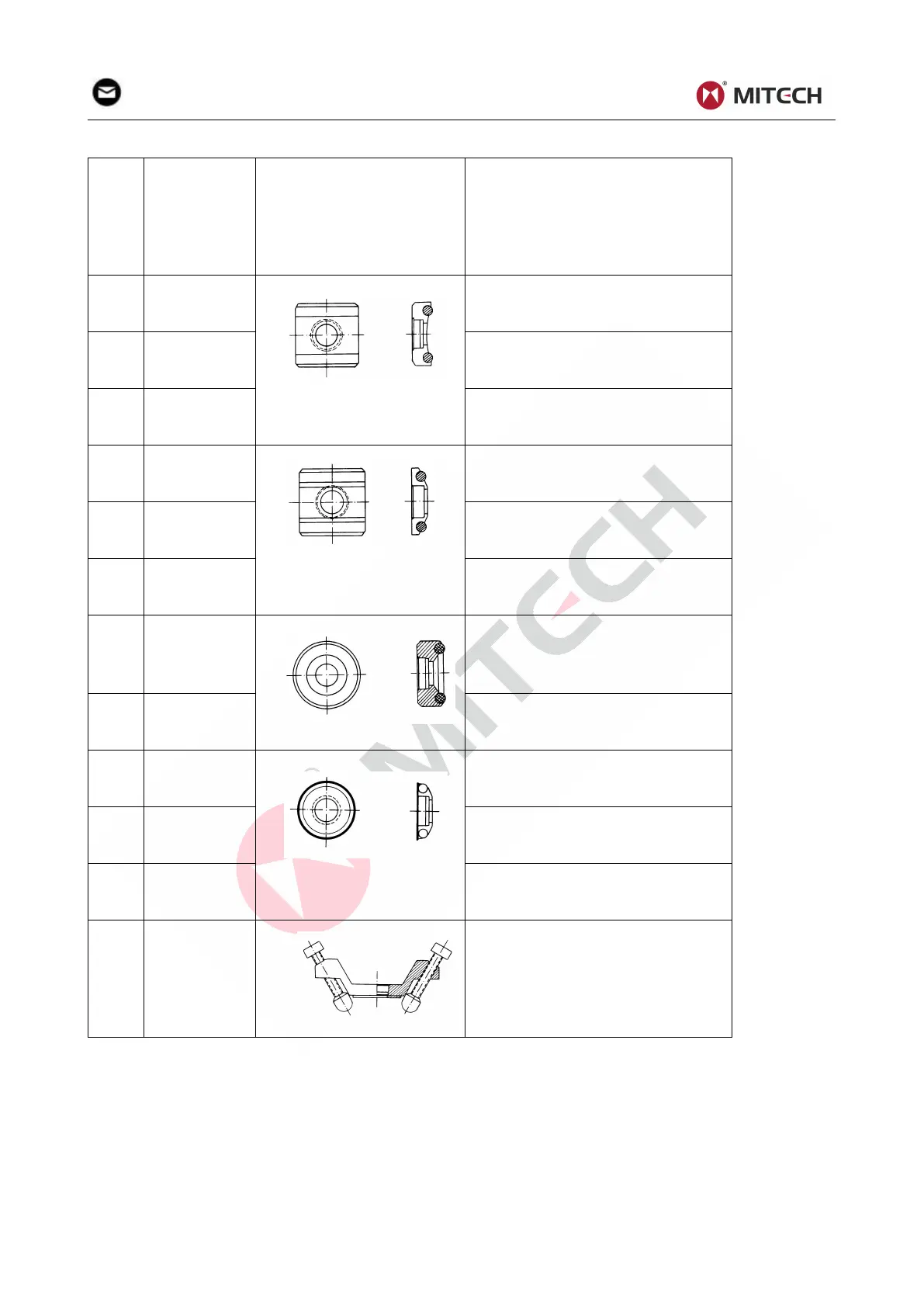

Table 4
No.
Type
Sketch of
non-conventional
Supporting ring
Remarks
1
Z10-15
For testing cylindrical outside
surface R10～R15
2
Z14.5-30
For testing cylindrical outside
surface R14.5～R30
3
Z25-50
For testing cylindrical outside
surface R25～R50
4
HZ11-13
For testing cylindrical inside
surface R11～R13
5
HZ12.5-17
For testing cylindrical inside
surface R12.5～R17
6
HZ16.5-30
For testing cylindrical inside
surface R16.5～R30
7
K10-15
For testing spherical outside
surface SR10～SR15
8
K14.5-30
For testing spherical outside
surface SR14.5～SR30
9
HK11-13
For testing spherical inside surface
SR11～SR13
10
HK12.5-17
For testing spherical inside surface
SR12.5～SR17
11
HK16.5-30
For testing spherical inside surface
SR16.5～SR30
12
UN
For testing cylindrical outside
surface,radius adjustable R10～∞
