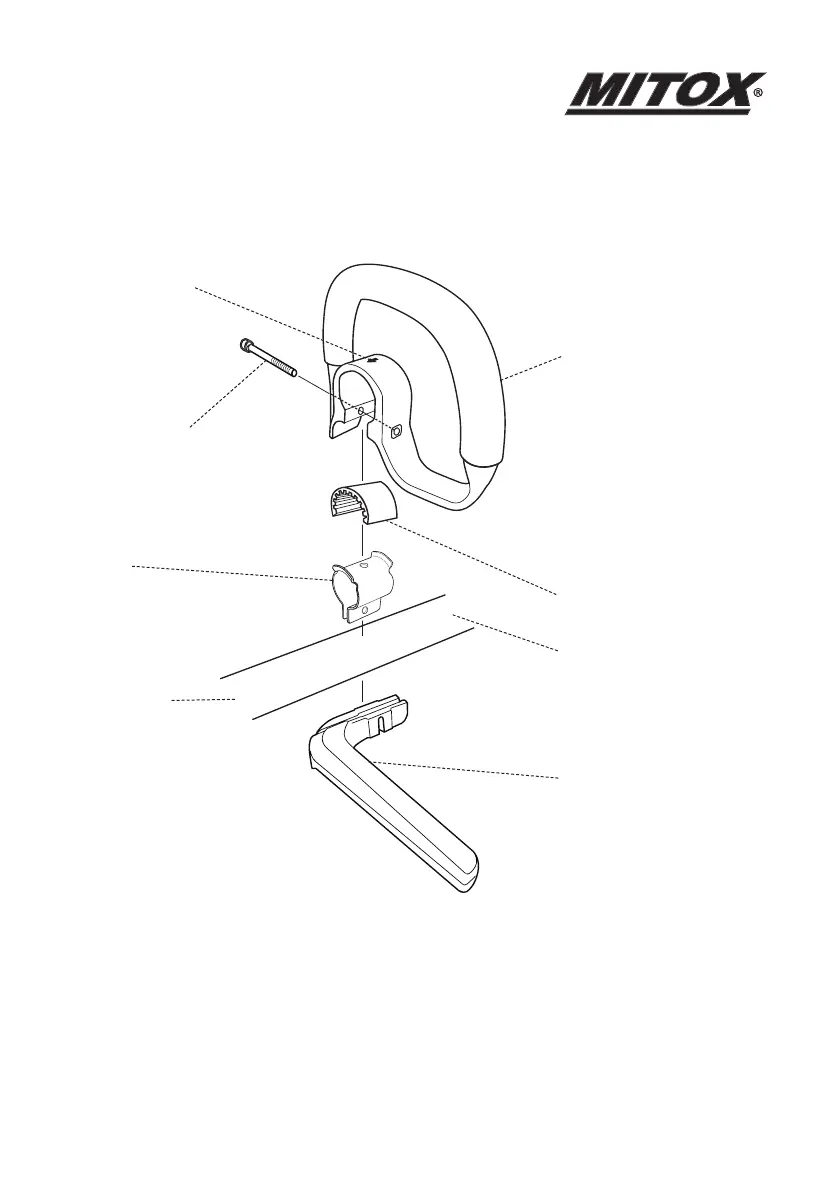

Installing the Loop Handle Assembly (LX Models)
• FixtheClamptotheDriveShaft,thenpinchtheatlugstogetherontheundersideof
the Clamp and slide them into the slot in the Lower Handle.
• FittheRubberBlockandUpperHandleovertheClamp,ensuringthearrowonthe
Upper Handle points towards the Cutter Head.
• InserttheFixingScrewthroughtheUpperHandle,LowerHandleandClamp,donot
tighten.
• AdjustthehandletoacomfortableworkingpositionthentightentheFixingScrew.
Upper Handle
Rubber Block
Fixing Screw
Clamp
Lower Handle
Drive Shaft To
Cutter Head
Drive Shaft
To Engine
Ensure Arrow
Points Towards
Cutter Head
