Mitox 260LX - Page 19

260LX/UX, 330LX/UX, 430UX, 530 UX
Brushcutter
19
Original Instructions Version August 13
Installing the U Handle Assembly (UX Models)
• RemovetheupperbracketfromtheassemblybyundoingtheLockscrew.
• InstalltheUhandleassembly,reassemblethebracketassemblyandsecureusingthe
Lockscrew.
• Ensurethatthecontrolsarelocatedontherightandadjustthehandleformaximum
comfort before securing.

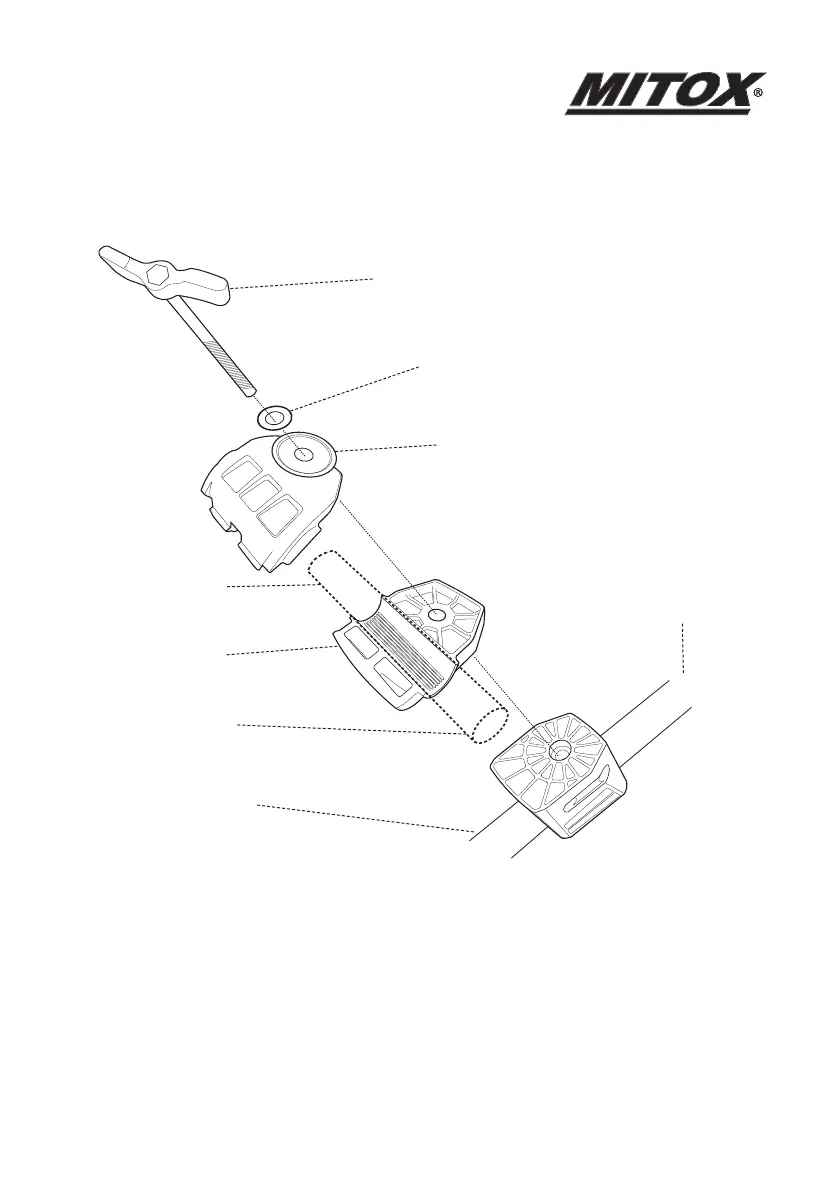

Lockscrew
Upper Bracket
To Left handle
To Right handle
Lower Bracket
Drive Shaft To
Cutter Head
Drive Shaft
To Engine
Washer
