260LX/UX, 330LX/UX, 430UX, 530 UX
Brushcutter
20
Original Instructions Version August 13
Operation
Keep clear of the cutter head as it may start moving when the engine starts.
Starting the Engine
CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when
the cord is extended, this can damage the starter mechanism.
Cold Engine Starting
Rest the unit on a flat, firm surface. Keep the cutting head o the ground and clear of surrounding
objects as it may start moving when starting the engine.

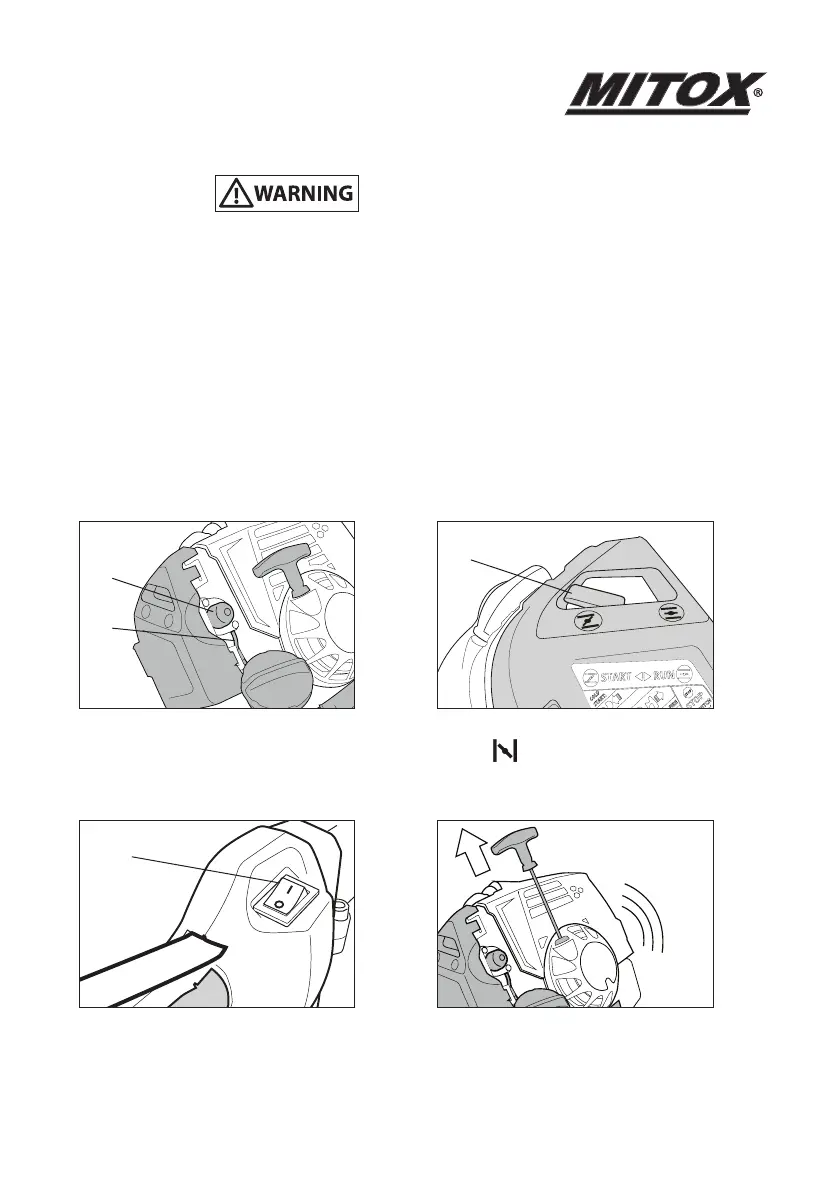

Fig 4 - While holding the unit, pull out
the starter rope firmly until engine fires
(indicated by a ‘cough’ from the engine).
Fig 3 - Set the ignition switch (d) to the
START (I) position.
Fig 2 - Move the choke lever (c) to the
closed ( ) position.
Fig 1 - Push the air purge bulb (a) until
fuel is visible in the clear return fuel
line (b)
(a)
(b)
ST
A
RT
RUN
ONCE RUNNING:
W
A
IT 6-10 SECONDS,
SQUEEZE THROTTLE.
HOT ST
A
RT:
STOP
SWITCH
‘O’
1
2
STOP
3
5
PRIME x7
CHOKE ST
A
RT PULL UNTIL FIRE
CHOKE RUN PULL TO RUN
COLD
ST
A
RT:
(c)
(d)
