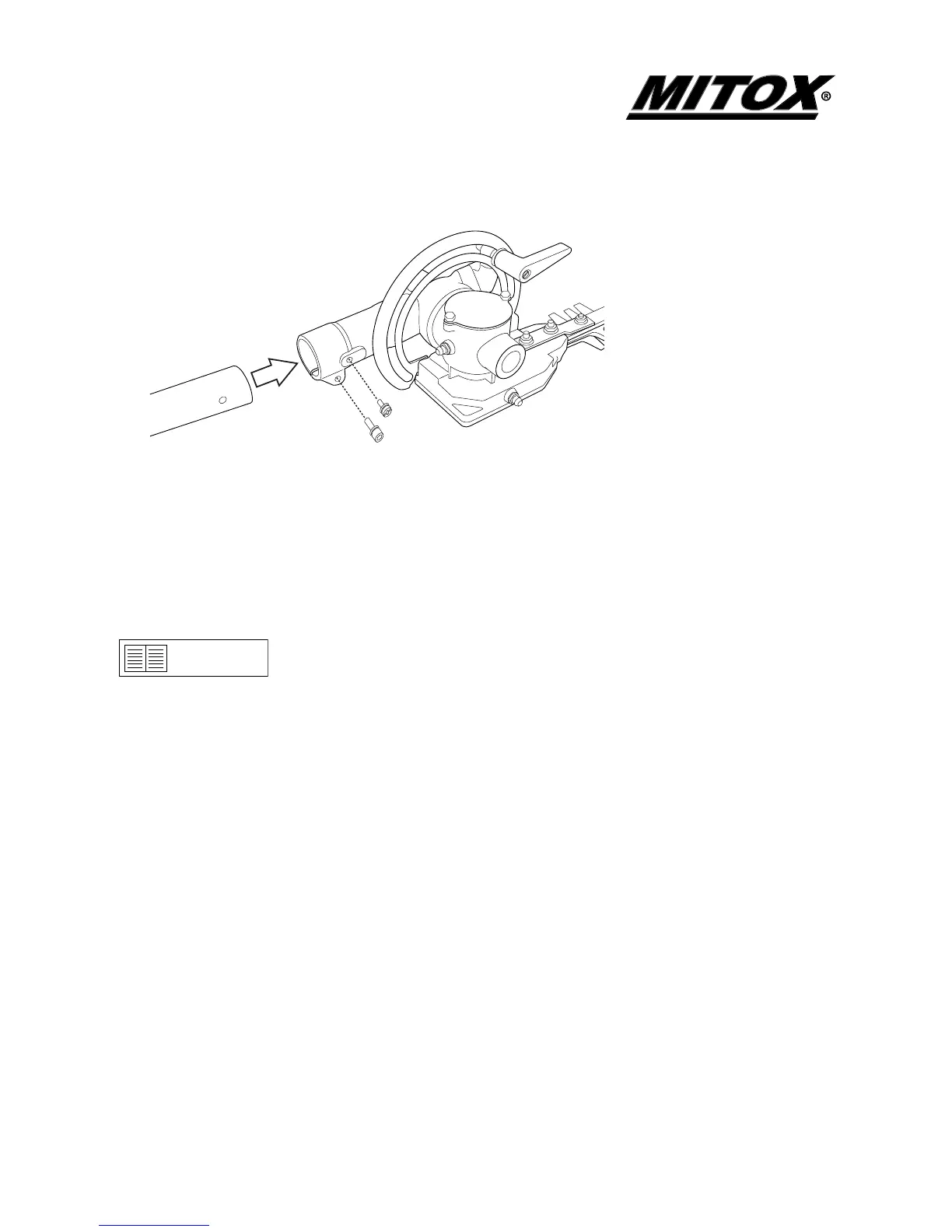

Assembly of the Hedge Trimmer
1. Remove the locating screw (1).
2. Using a 4mm Allen key, loosen the clamping bolt (2).
3. Slide the drive shaft (3) into the hedge trimmer gearbox (4) until the locating hole (5) in
the drive shaft is visible though the locating hole (6) in the gearbox.
4. Insert the locating screw (1) into the gear box (6) and tighten.
5. Using a 4mm Allen key, tighten the clamping bolt (2).
The thickness of fresh growth (green branches), which may be cut using this hedge trimmer, is
limited to up to approximately 10mm. Never try to cut branches thicker than this, as doing so may
result in damage to the hedge trimmer.
Operation
Adjusting the angle of the cutting blades
1. Stop the engine.
2. Turn the clamp bolt located on the top of the trimming mechanism counter-clockwise to
loosen it.
3. Adjust the angle of the blades to the desired angle, and then tighten the bolt rmly
back into place.
4. Always wear gloves when adjusting the blades.
NOTE
1
2
3
4
5
6
