Mitox 28MT - Assembly and Maintenance; Installing the Loop Handle Assembly

28MT Multi-Tool
13
Original Instructions Version June 16
28MTa_160616
Installing the Loop Handle Assembly

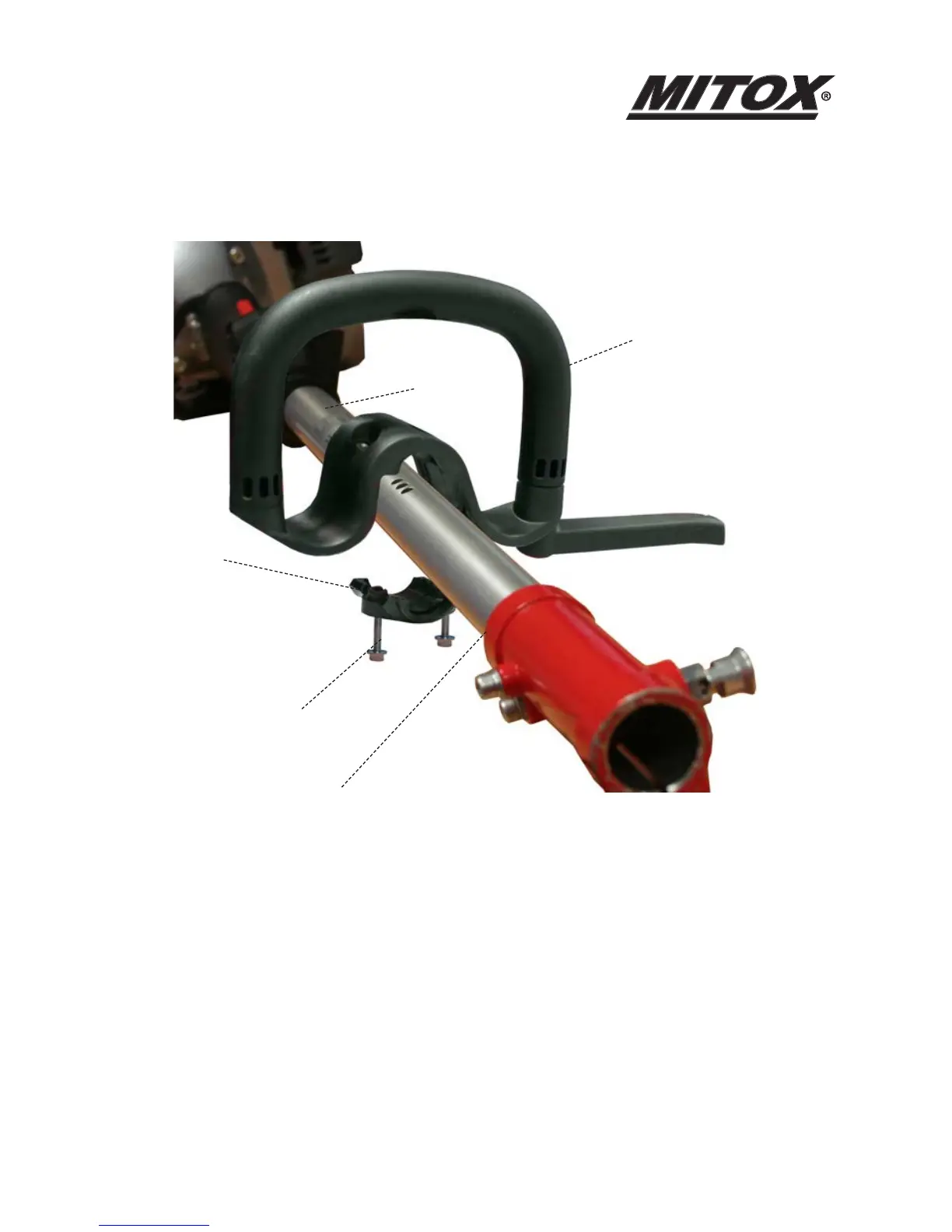

• Fit the upper handle to the shaft using the fixing holes to locate the handle to the
desired position (smooth side of the handle facing away from the engine).
• Fit the lower handle clamp and secure using the 2 Torx bolts.
Upper Handle
Torx Bolt
Clamp
Drive Shaft To
Cutter Head
Drive Shaft
To Engine
