Operation

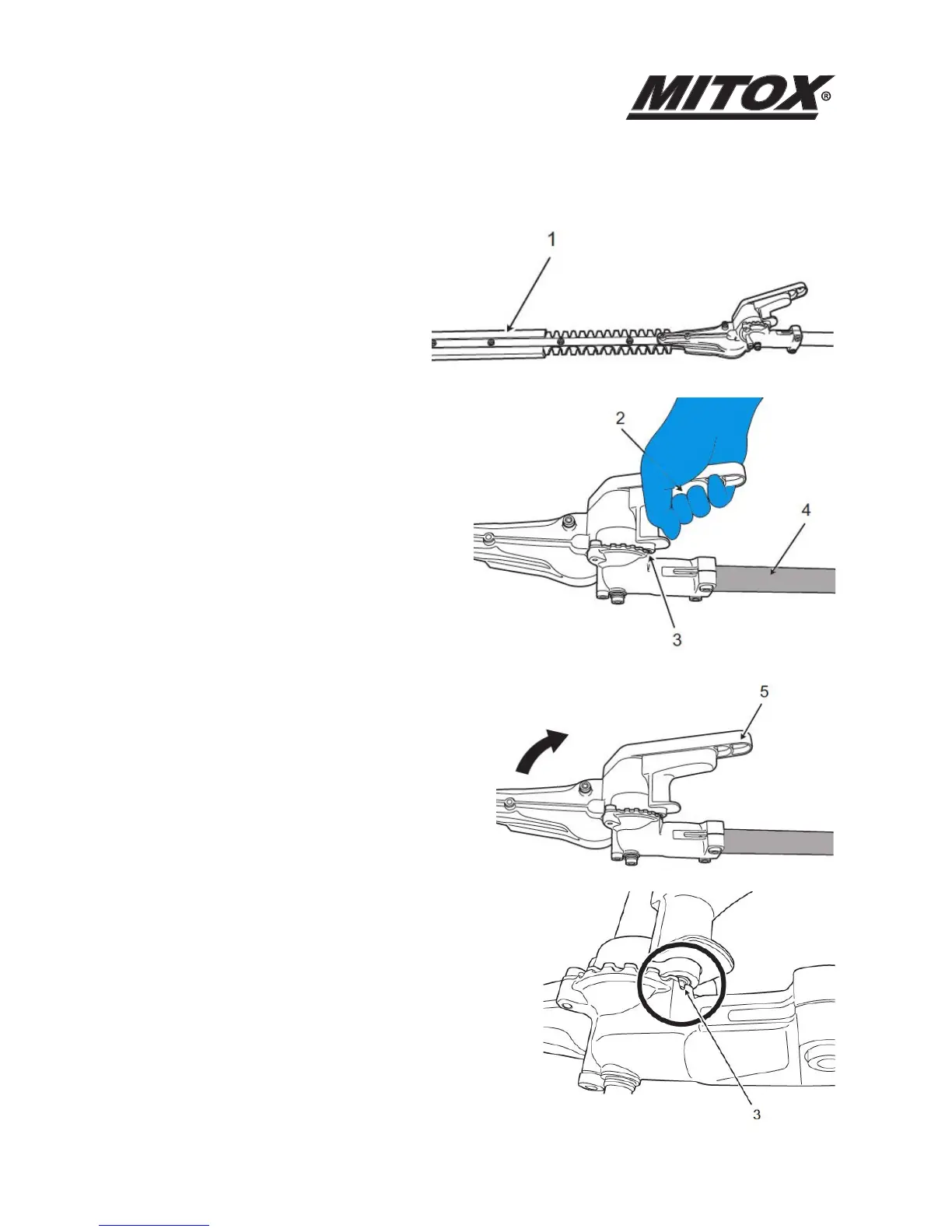

Adjusting the angle of the cutting blades
1. Stop the engine.
2. Always wear gloves when adjusting
the blades.
3. Lay the hedgetrimmer flat on the
ground and set the guard (1) to the
trimmer blade .
4. Squeeze the red locking lever (2) into the
black handle (5) to release the locking pin (3).
5. While holding the shaft (4), move the cutting
head to the desired position.
6. Release the red locking lever and ensure the locking
pin engages with the quadrant.
