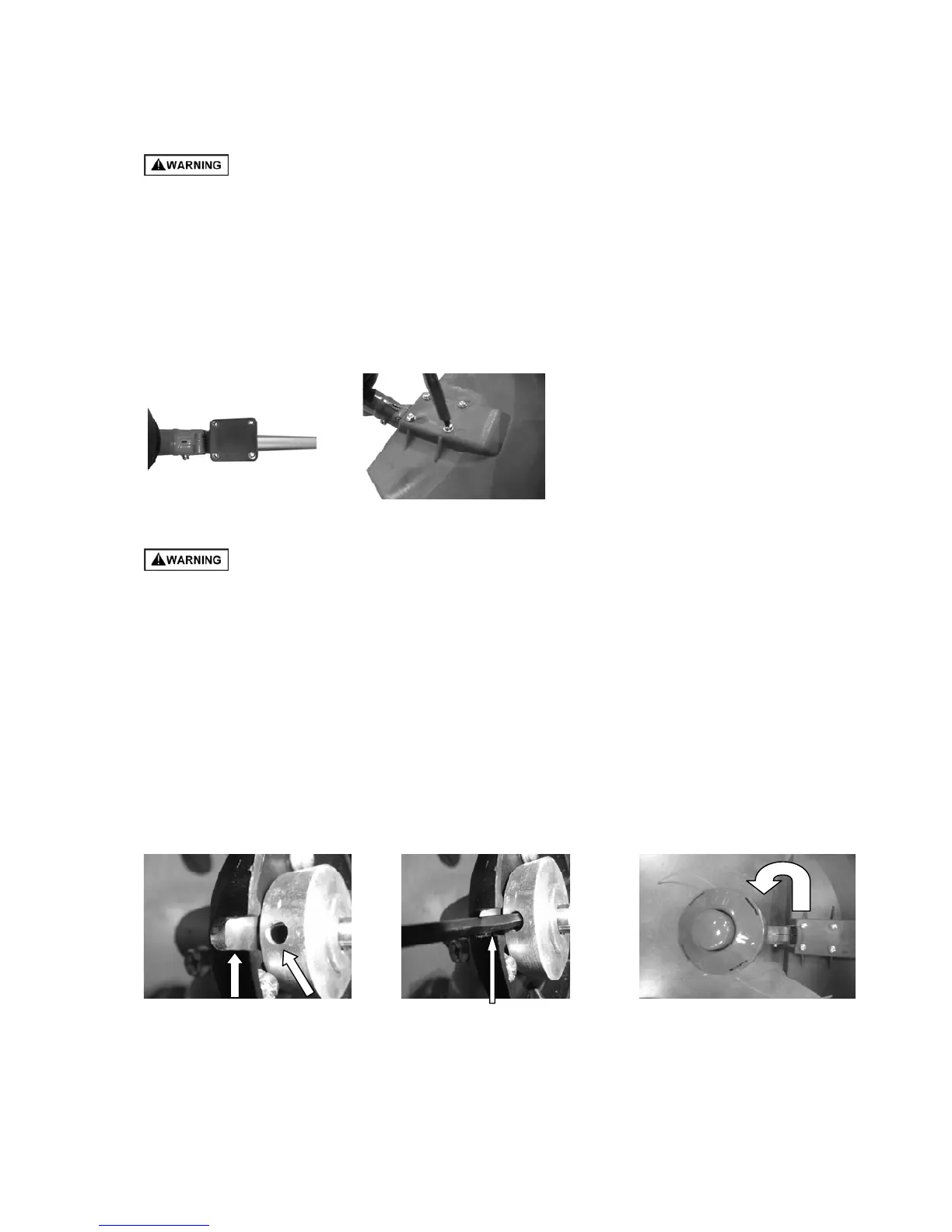

ASSEMBLY OF THE BRUSH CUTTER
The blade fitted to the guard is sharp and can cause injury, always wear gloves
INSTALLATION OF THE GUARD
• Lay the brush cutter on its back with the gearbox shaft facing up.
• Line up the 4 screw holes in the guard with the bracket on the shaft Fig 1.
• Insert 4 screws through the guard into the captive nuts in the bracket (Fig2) and tighten
The blade fitted to the guard is sharp and can cause injury, always wear gloves
INSTALLATION OF THE NYLON HEAD
• Lay the brush cutter on its back with the gearbox shaft facing up.
• Rotate the gear box shaft until the hole in the holder A lines up with the slot in the plastic guard Fig 3.
• Insert the Allen key into the hole in the gearbox cover and into holder A Fig 4.
• Screw the nylon head anti-clockwise (turn left) Fig 5 onto the threaded shaft on the end of the gearbox.
• Make sure that the nylon head is securely locked in position.
• Remove the Allen key.
Fig 1
Fig 3, PLASTIC GUARD HOLDER A
Fig 4, ALLEN KEY
Fig 5, SCREW THE HEAD ANTI-CLOCKWISE
Fig 2
