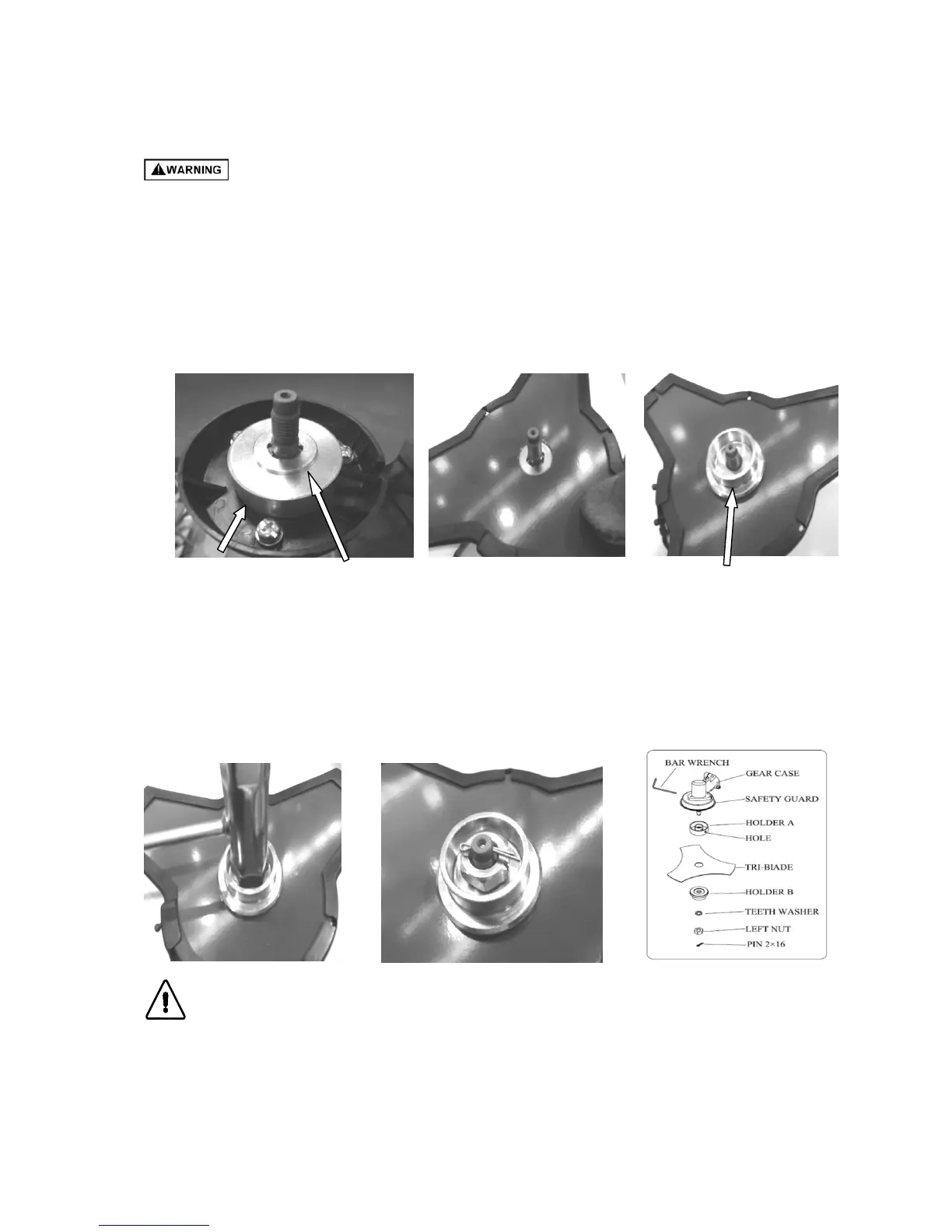

INSTALLATION OF THE 3 TOOTH BLADE
Always wear gloves when touching the blade
• Lay the brush cutter on its back with the gearbox shaft facing up.
• Rotate the gearbox shaft until the hole in the holder A lines up with the slot in the plastic guard Fig 3.
• Insert the Allen key into the hole in the gearbox cover and into holder A Fig 4.
• Place the 3 tooth blade on the holder A, centring the blade on the raised centre Fig 6 and Fig 7.
Fig 6,
HOLDER A RAISED CENTRE
Fig 7, Fig 8,
HOLDER B
.
• Fit the holder B (Fig 8) and then the washer.
• Screw the nut anti-clockwise (turn left) and tighten using the spanner provided (Fig 9).
• Make sure that the blade is completely and safely locked in position, and there is no space between the
blade and the blade holder.
• Fit split pin (fig 10).
• Remove the Allen key.
THE BLADE MUST BE CORRECTLY POSITIONED ON THE UPPER BLADE CLAMP OTHERWISE
SERIOUS DAMAGE AND INJURY TO PERSONS AND PROPERTY COULD RESULT.
Fig 9
Fig 10
