2.0 OPERATOR CONTROLS AND INDICATORS
The 9800A Series operator controls and indicators are located as follows:
Circuit breakers and contactors: Inside the module
UPS status indicators: Outside of front door

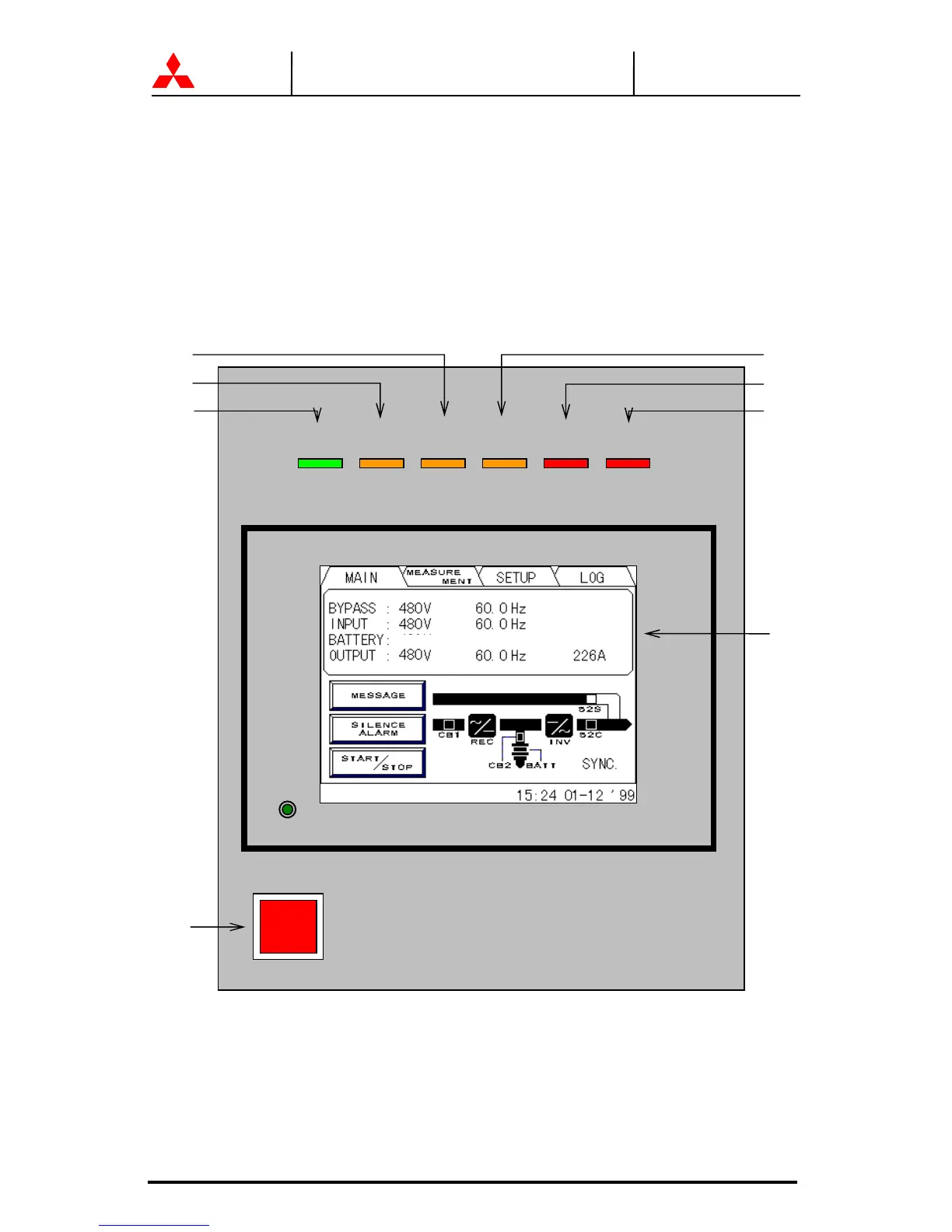

FIGURE 2.1 Operation/Display Panel (Front panel)
LOAD ON
INVERTER
BATTERY
OP.
LOAD ON
BYPASS
OVER LOA
D
LCD
FAULT
UPS
FAULT
EMRG.STOP
1
2
6
3
5
4
8
7
540V
