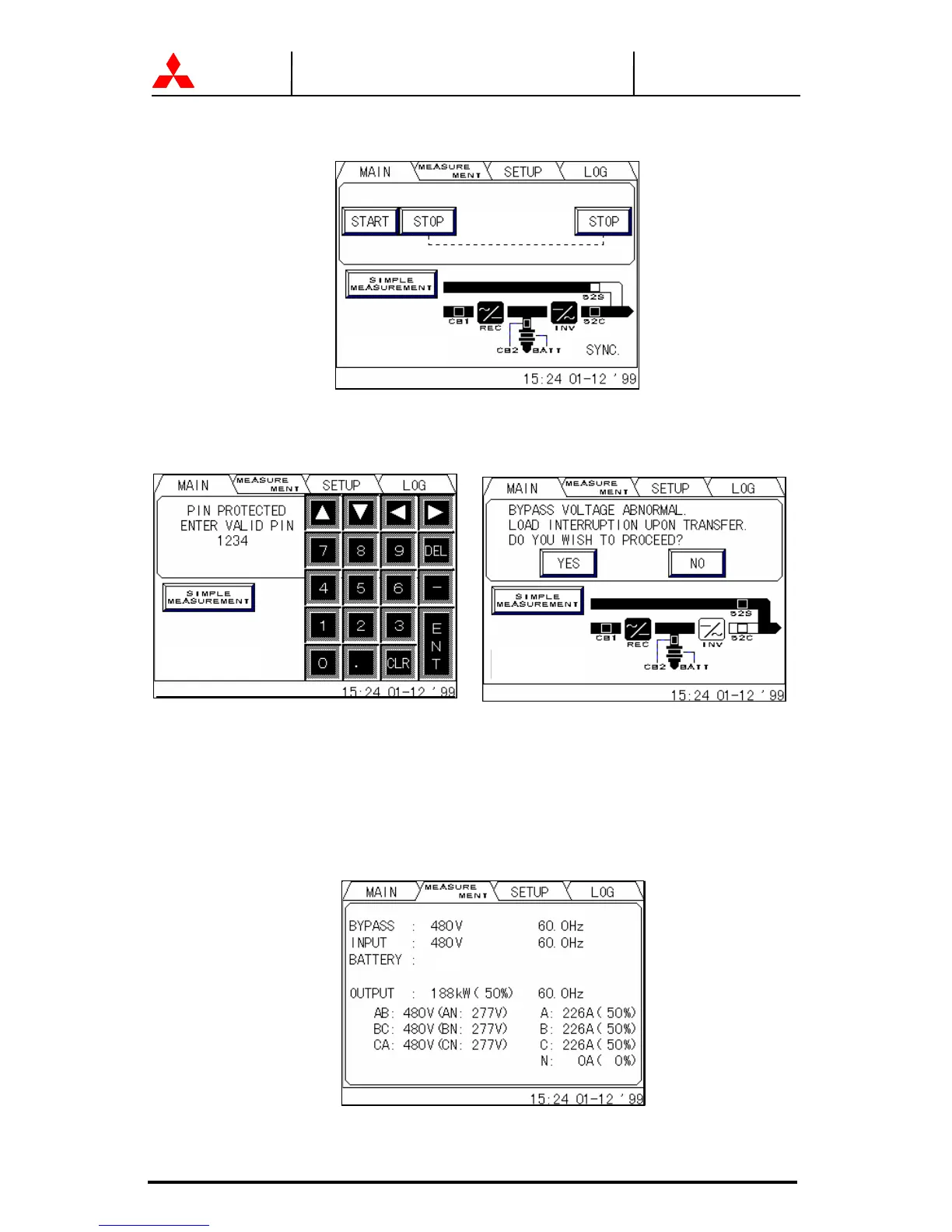

FIGURE 2.3 Start/Stop screen
FIGURE 2.4 PIN protection screen FIGURE 2.5 Bypass voltage abnormal
message screen
B) MEASUREMENT MENU (FIGURE 2.6)
This screen shows details of measured values. Bypass voltage, input voltage, output
line to line voltage and output frequency are displayed. Output currents are displayed as
RMS values.
FIGURE 2.6 Measurement screen
540V
Press both keys
in order.
