MITSUBISHI ELECTRIC 9800A SERIES UPS
MITSUBISHI
ELECTRIC
9800A SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3
-
9

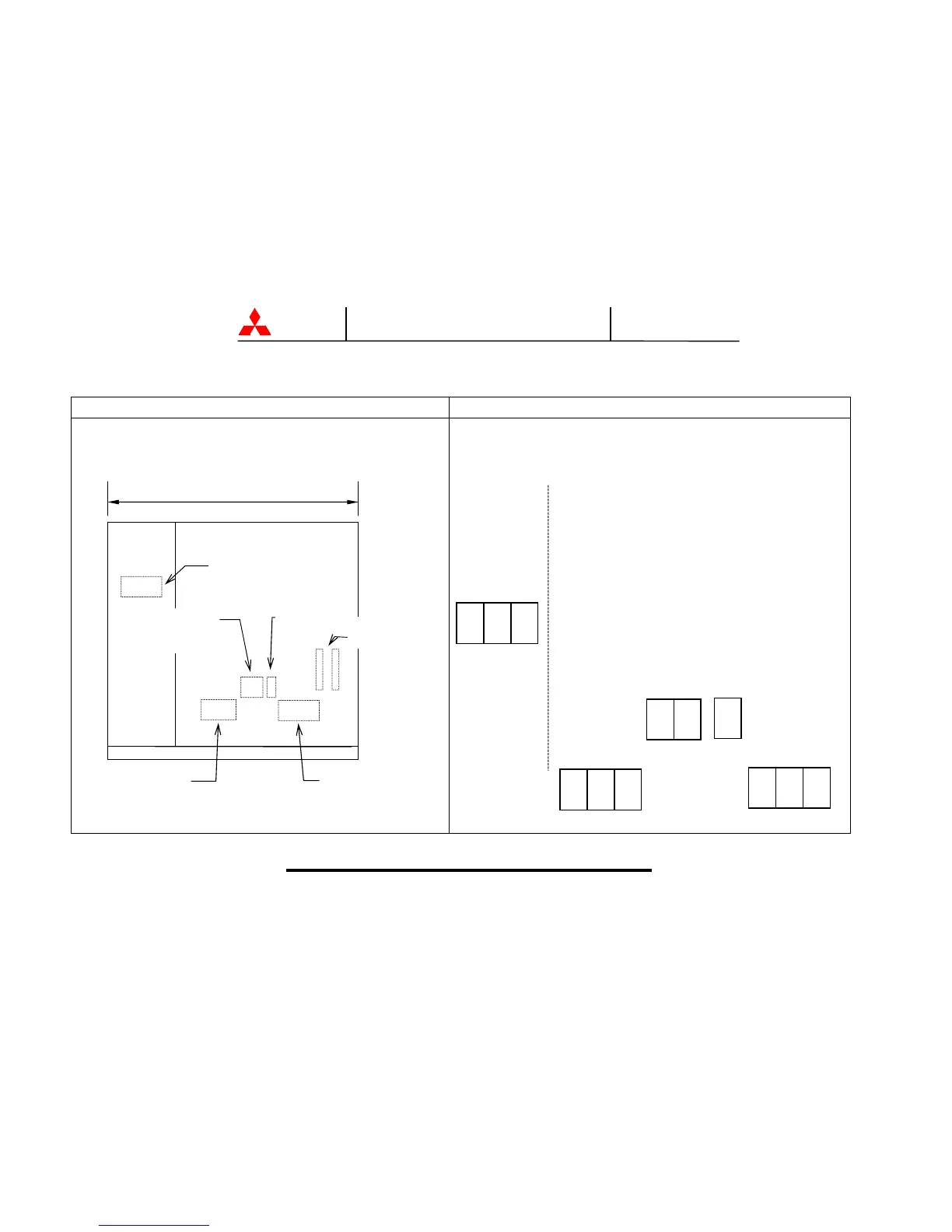

FIGURE 3.2-b-1 Diagram of input/output bus bars and terminal blocks (100kVA, 150kVA, 225kVA UPS, Input voltage 600Vac)
Location of bus bars and terminal blocks Detailed Terminals
H=79.7” (2025mm)
D=29.9” (760mm)
For power terminals, use 5/16” (8mm) Diameter bolts.
100kVA : 73.3” (2014mm)
150kVA : 79.2” (2113mm)
225kVA : 99.1” (2520mm)
AC
Input
H1,H2,H3
Input
cabinet
UPS module
Input
cabinet
AC Input
H1 H2 H3
DC Input
BN BP
N40
N50
AC Output
A50 B50 C50
Bypass Input
A40 B40 C40
UPS module
External
wiring block
Bypass
Input
A40,B40,C40
Battery
Input
BN,BP
AC
Output
A50,B50,C50
N40,N50
