MITSUBISHI ELECTRIC 9800A SERIES UPS
MITSUBISHI
ELECTRIC
9800A SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3
-
15

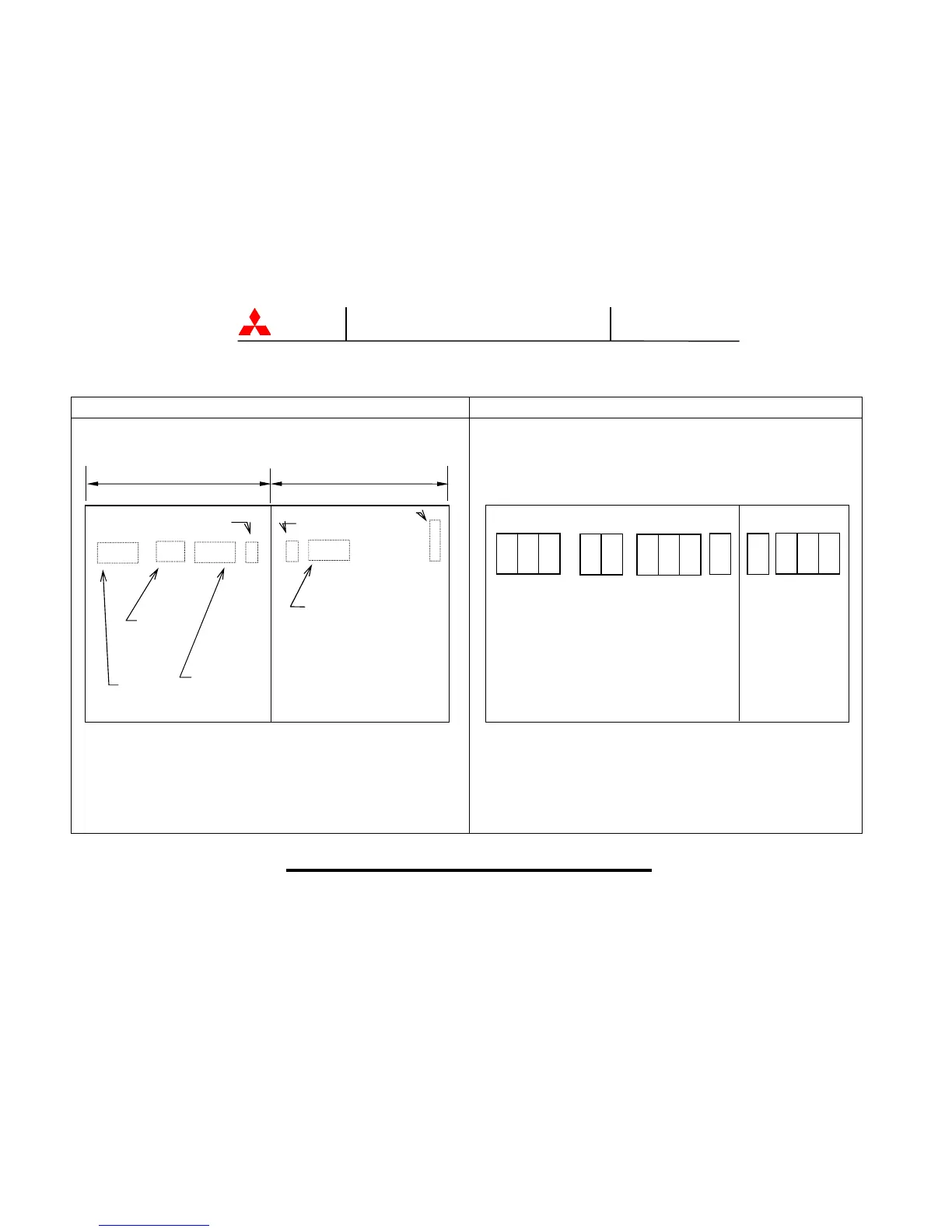

FIGURE 3.2-e-1 Diagram of input/output bus bars and terminal blocks (500kVA, 750kVA UPS, Input voltage 480Vac)
Location of bus bars and terminal blocks Detailed Terminals
H=79.7” (2025mm)
D=37.8" (960mm)
UPS Power Terminals use 1/2” (12mm) Diameter bolts.
63.0” (1600mm)
UPS module
External
wiring block
N50
Bypass Input
A40,B40,C40
Battery
Input
BN,BP
AC Output
A50,B50,C50
AC Input
A,B,C
51.2” (1300mm)
UPS module
AC Input
A B C N
40
N
50
AC Output
A
50
B
50
C
50
Bypass
Input
A
40
B
40
C
40
DC Input
BN BP
N40
