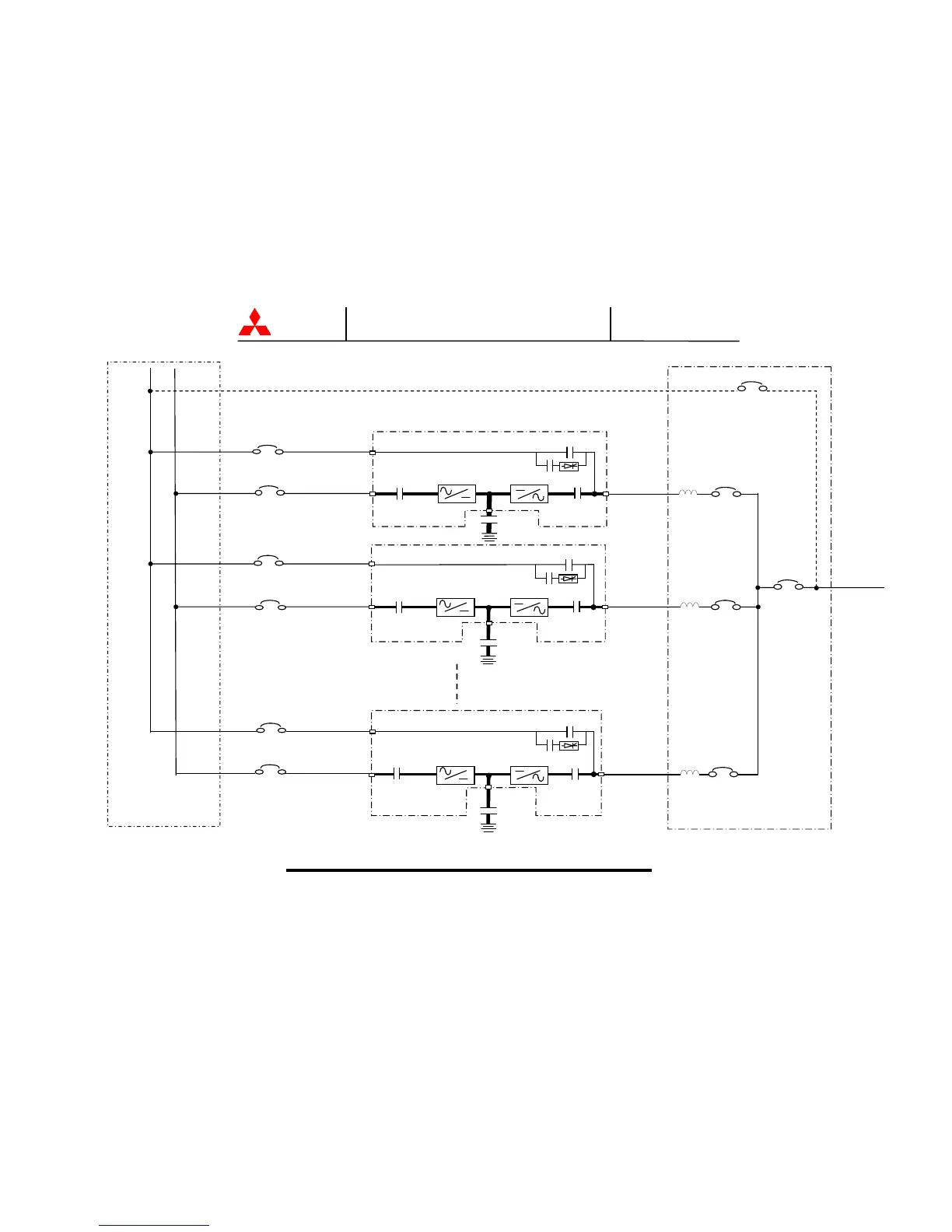

FIGURE 3.4-a Diagram of Power Wire Connect ( Parallel connection )
Bypass
CB2
52L
1
Inverter
Converter
CB1
UPS-1
Battery
52L
2
52C
CB2
Inverter
Converter
CB1
Battery
52C
UPS-2
Bypass
CRITICAL LOAD CABINET
52L
n
CB2
Inverter
Converter
CB1
Battery
52C
Bypass
*1
SMB
52L
UPS-n
*1
*1 n : Maximum = 8
52S
52S
52S
ACL 1
ACL 2
ACL n
*1
Bypass input
AC input
Bypass input
AC input
Bypass input
AC input
AC output
AC output
AC output
