2.3.2. Installing the refrigerant piping
Check the Connection Kit accessories and parts
1Pipe cover × 2
2Thermistor holder - ø9.52 × 1
3Thermistor holder - ø12.7 × 1

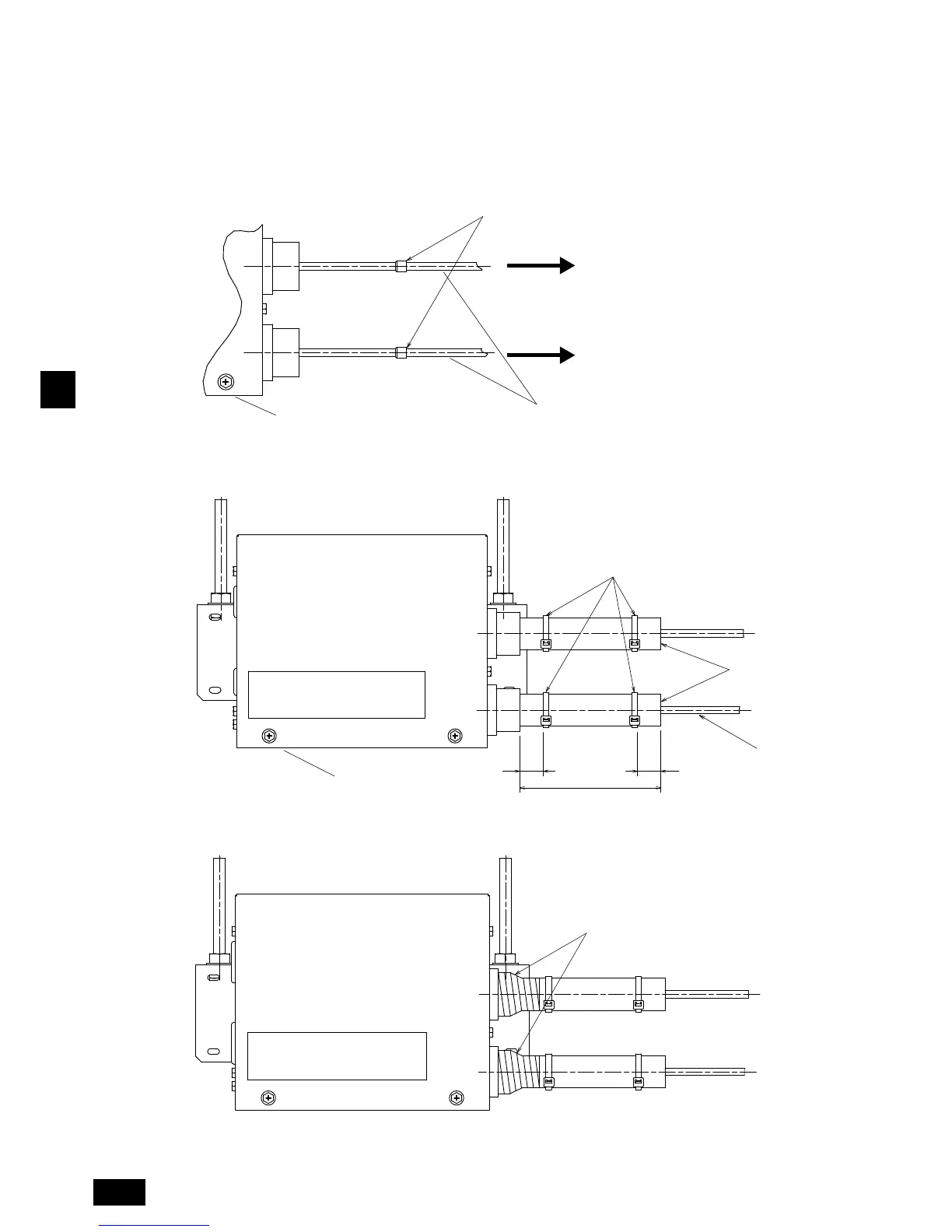

Connect Connection Kit to the liquid pipe.
When brazing the refrigerant pipes, be sure to braze, after covering a wet cloth to the insulation pipes of the units in order to prevent
it from burning and shrinking by heat.
Press the pipe cover 1 on the liquid piping against the Connection Kit and wrap it to hold it in place.
Fasten the supplied bands 20 mm from each of the pipe covers 1.
Wrap the pipe cover 1 with tape.
Connection kit
Refrigerant pipe (procure locally)
Brazing
To indoor unit
To outdoor unit
(120)
2020
Connection kit
Band (procure locally)
Refrigerant pipe
(procure locally)
1Pipe cove
