MOTION ALARM RECORDING
The Instructions for the SETUP Wizard have configured the DX TL5000E to record continuous; below
we will now cover how to program Motion Alarm Recording.
SETTING MOTION DETECTION AREA:
Two patterns independent from each other are available.
Pattern A and Pattern B.

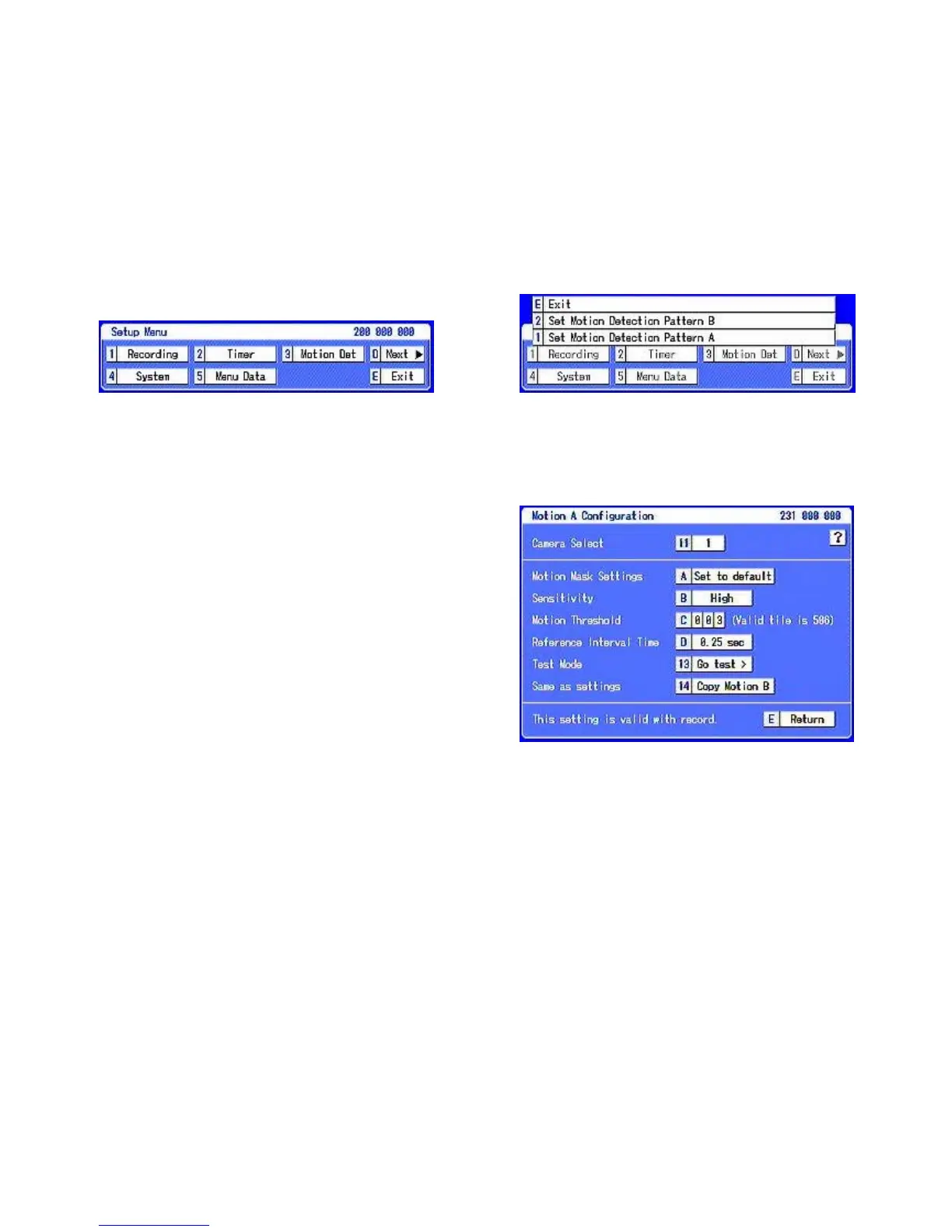

Motion A Configuration
Setup Menu
(200 000 000) Select 3 Motion Det Select 1 Set Motion Detection Pattern A
Motion A Configuration
11 Camera Select – Selects camera to be
configured for motion.
A Motion Mask Settings – Select and SET
settings:
Set to Default (as above)
Enable All
Disable All
Manual
(231 000 000)
B Sensitivity – Select Sensitivity to change
is needed to activate motion (for any of the set areas if multiple areas have been activated).
C Motion Threshold – Select number of squares which
D Reference Interval Time – Select time of how often the area set to motion will be sampled
13 Test Mode – Select Test Mode to test the set area. The colour of the dot detecting motion
changes.
14 Copy Motion B – This copies Motion B settings into the current Motion A settings.
12
To Next Page
