Basic operation Basic operation procedure (JOG operation)
FR-A800 4 - 31
4.7.2 JOG operation on the operation panel
NOTE Operate only while FWD or REV key is pressed.

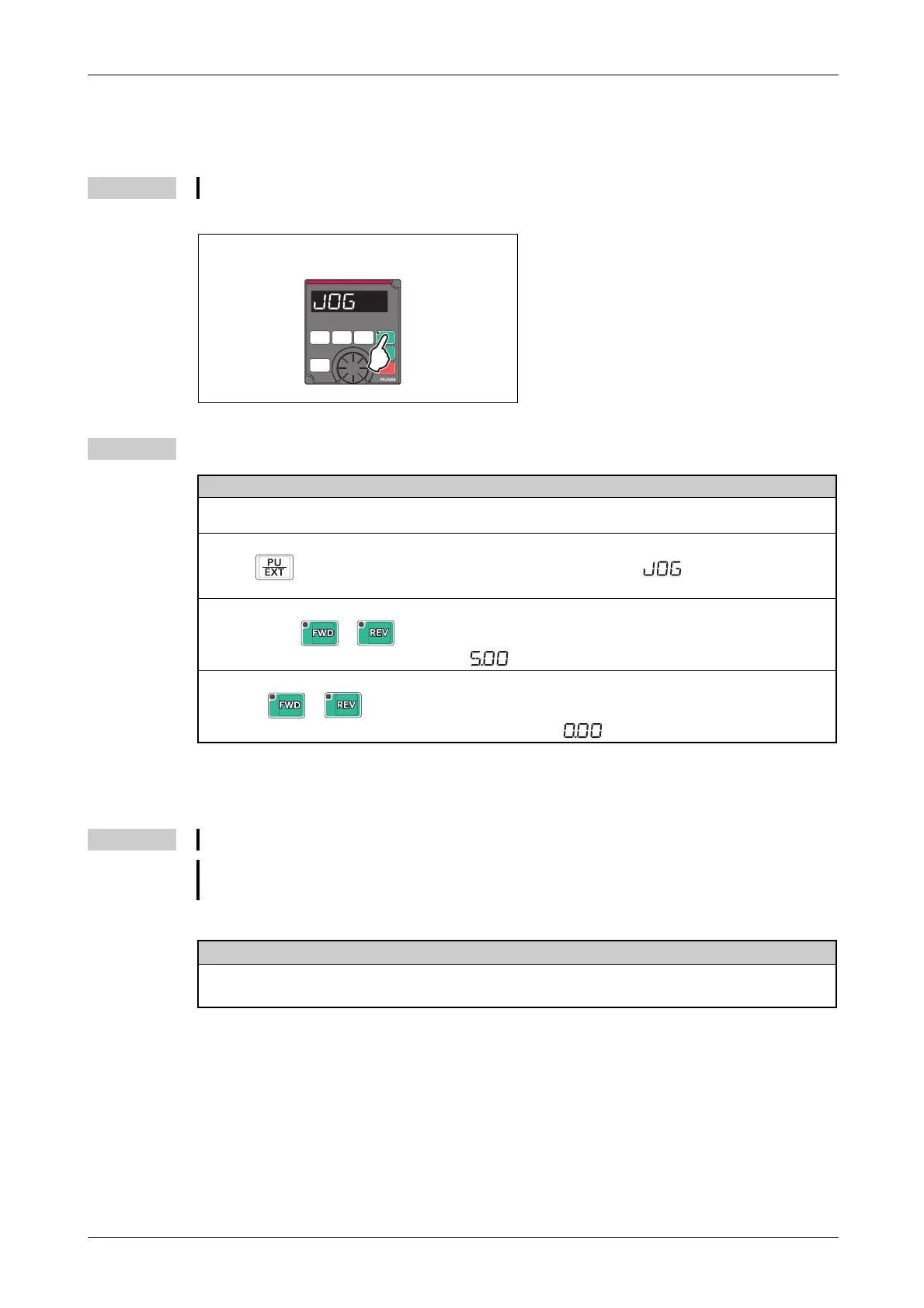

Fig. 4-13:
Jog operation performed on the operation panel
I002433E
Example Operation example: Operate at 5 Hz.
Operation
Turning ON the power of the inverter
The monitor display turns ON.
Changing the operation mode
Press twice to choose the PUJOG operation mode. The monitor displays" ", and [PU] indicator turns
ON.
Start ➔ acceleration ➔ constant speed
Keep pressing or . The frequency value indicated on the display increases for the time set in Pr. 16 "Jog
acceleration/deceleration time", andis fixed at " " (5.00 Hz).
Deceleration ➔ stop
Release or . The frequency value indicated on the display decreases for the time set in Pr. 16 "Jog
acceleration/deceleration time", and the motor stops rotating at " " (0.00 Hz).
Tab. 4-22: JOG operation performed on the operation panel
NOTES To change the running frequency, change Pr. 15 "Jog frequency" (initial value "5 Hz").
To change the acceleration/deceleration time, change Pr. 16 "Jog acceleration/deceleration time"
(initial value "0.5 s").
Parameters referred to
Pr. 15 Jog frequency => page 5-296
Pr. 16 Jog acceleration/deceleration time => page 5-296
