4-2 Setting the Basic Information and External Input Functions
Display the page needed to perform the G-50A basic setting by clicking [Initial Settings]-[Basic System] in the
setting menu pane. On this page, you perform the basic setting such as the G-50A unit name, network setting
and M-NET setting. Click [Save Settings] to send setting data to the G-50A. After the setting data are sent to
the G-50A, a message will appear asking whether or not to restart the G-50A. Click [OK] to restart the G-50A
to put the changes into effect.
Note: If the user logs in as a building manager, the operations may be prohibited.
4-2-1 G-50A Unit Setting
In Unit Setting, set the G-50A name and unit ID.
(1) Enter the G-50A unit name in the [Name] field. You may enter a maximum of 40 alphanumeric or symbol
characters. The name set here is used on the display screen of the software that controls multiple G-50A
units and for the name of the sender in the body of error messages.
Note: The following characters cannot be used in the name: < > & " '
(2) Enter the G-50A unit ID in the [Unit ID] field. You must enter 6 numeric characters. Use this setting when
you want to control multiple G-50A units with unit IDs. The unit ID that is entered here will be used on the
display screen of the software that controls multiple G-50A units and for the sender ID in the body of error
messages.
(3) When [Refresh] is clicked, the G-50A production ID will appear in the [SERIAL No.] field and the G-50A
software version will appear in the [Software Version] field.

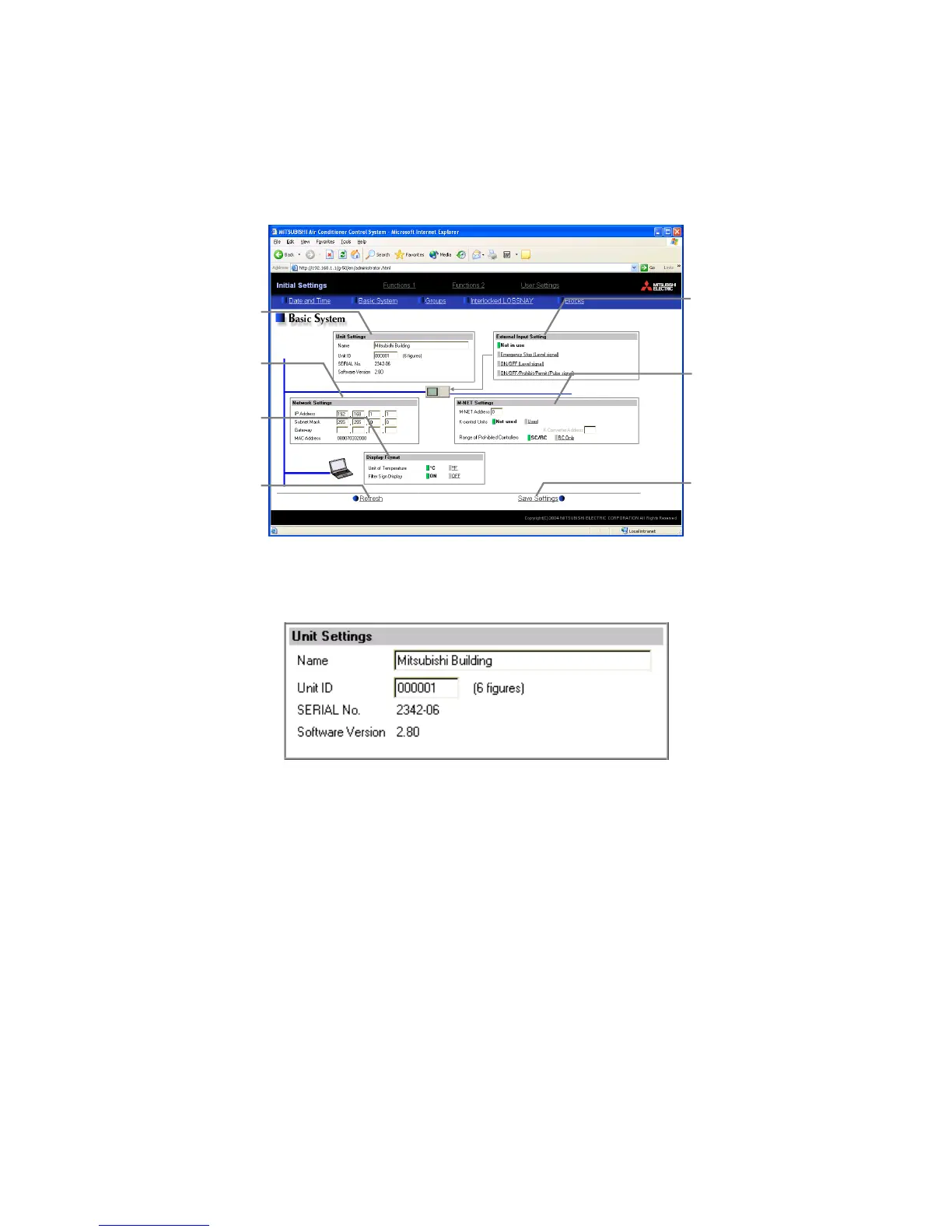

Unit Setting
Set the G-50A name and uni
t
ID.
Network Setting
Set the G-50A IP address and
subnet mask.
M-NET Setting
Set the G-50A M-NET
address, presence/absence of
K-Control units and range of
prohibited controllers.
External Input Setting
Set the G-50A external input
setting.
Display Forma
t
Used to set the display/ non-
display of the filter sign on the
G-50A or on the Web.
Save Settings
Send setting data to G-50A.
Refresh
Read setting data from G-50A.
