Mitsubishi Electric MELSEC iQ-F FX6U User Manual

218
APPX
Appendix 8 Terminal Module

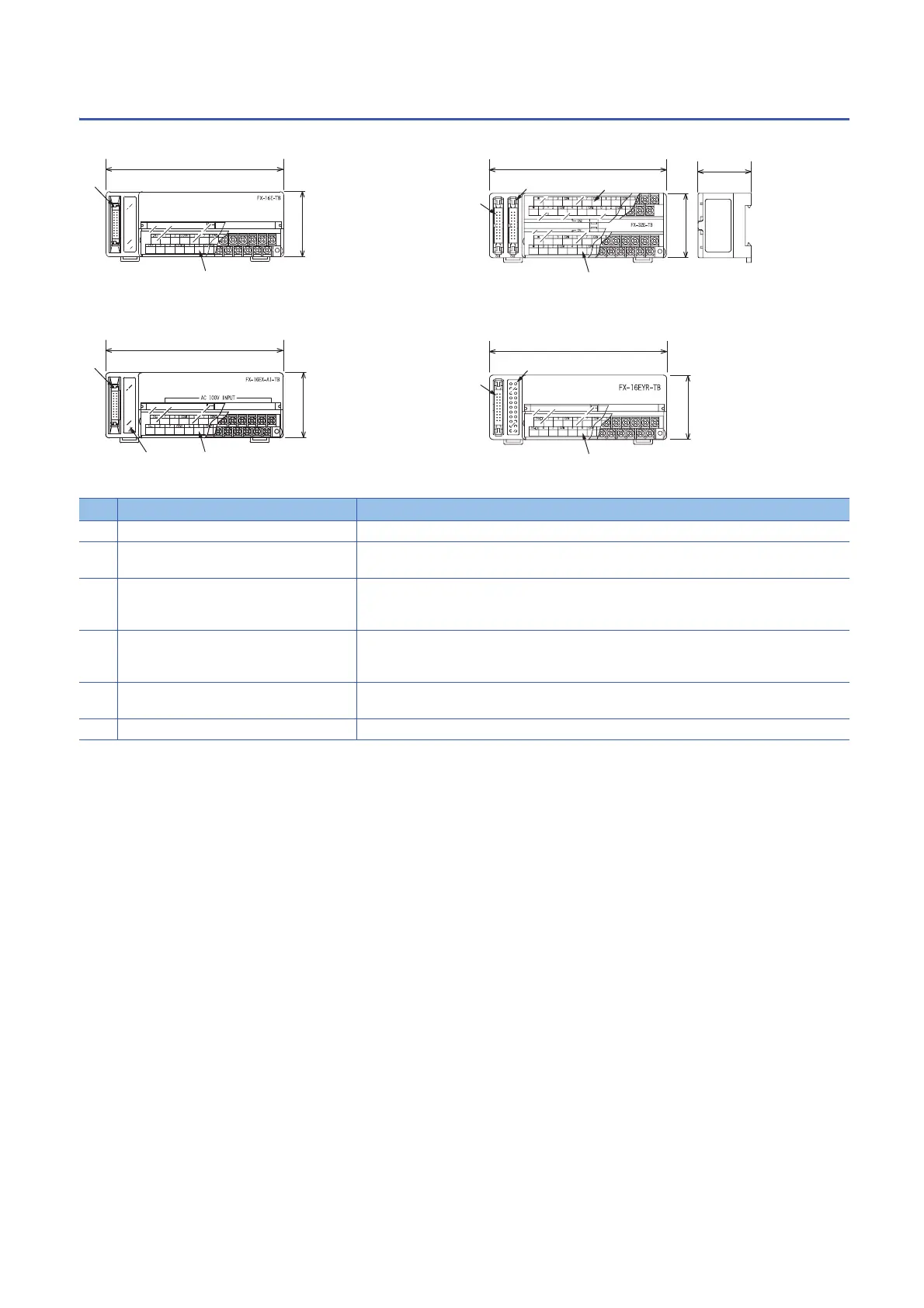

External dimensions and component names
• FX-16E-TB, FX-16E-TB/UL • FX-32E-TB, FX-32E-TB/UL
• FX-16EX-A1-TB • FX-16EYR-TB, FX-16EYR-ES-TB/UL, FX-16EYT-TB, FX-16EYT-ES-TB/UL,
FX-16EYT-ESS-TB/UL, FX-16EYS-TB, FX-16EYS-ES-TB/UL
Unit: mm (inches)
No. Name Description
[1] CN1 connector Connector for connecting input signal cables or output signal cables for CN1
[2] CN2 connector Connector for connecting input signal cables or output signal cables for CN2
(FX-32E-TB and FX-32E-TB/UL only)
[3] POWER LED Indicates the conduction status. (FX-16EX-A1-TB only)
Lit: Powered
Off: Not powered or hardware error
[4] Operation display LED Turns on when the output is on.
(FX-16EYR-TB, FX-16EYR-ES-TB/UL, FX-16EYT-TB, FX-16EYT-ES-TB/UL, FX-16EYT-ESS-TB/
UL, FX-16EYS-TB, and FX-16EYS-ES-TB/UL only)
[5] Terminal block for CN2 (M3.5 screws) Input/output terminals for CN2
(FX-32E-TB and FX-32E-TB/UL only)
[6] Terminal block for CN1 (M3.5 screws) Input/output terminals for CN1
150
[6]
[1]
55
150
45
[1]
[2]
[5]
[6]
55
150
[6]
[3]
[1]
55
150
[6]
[1]
[4]
55
