Mitsubishi Electric Mr.Slim PUHZ-P100VHA5 User Manual

8 9

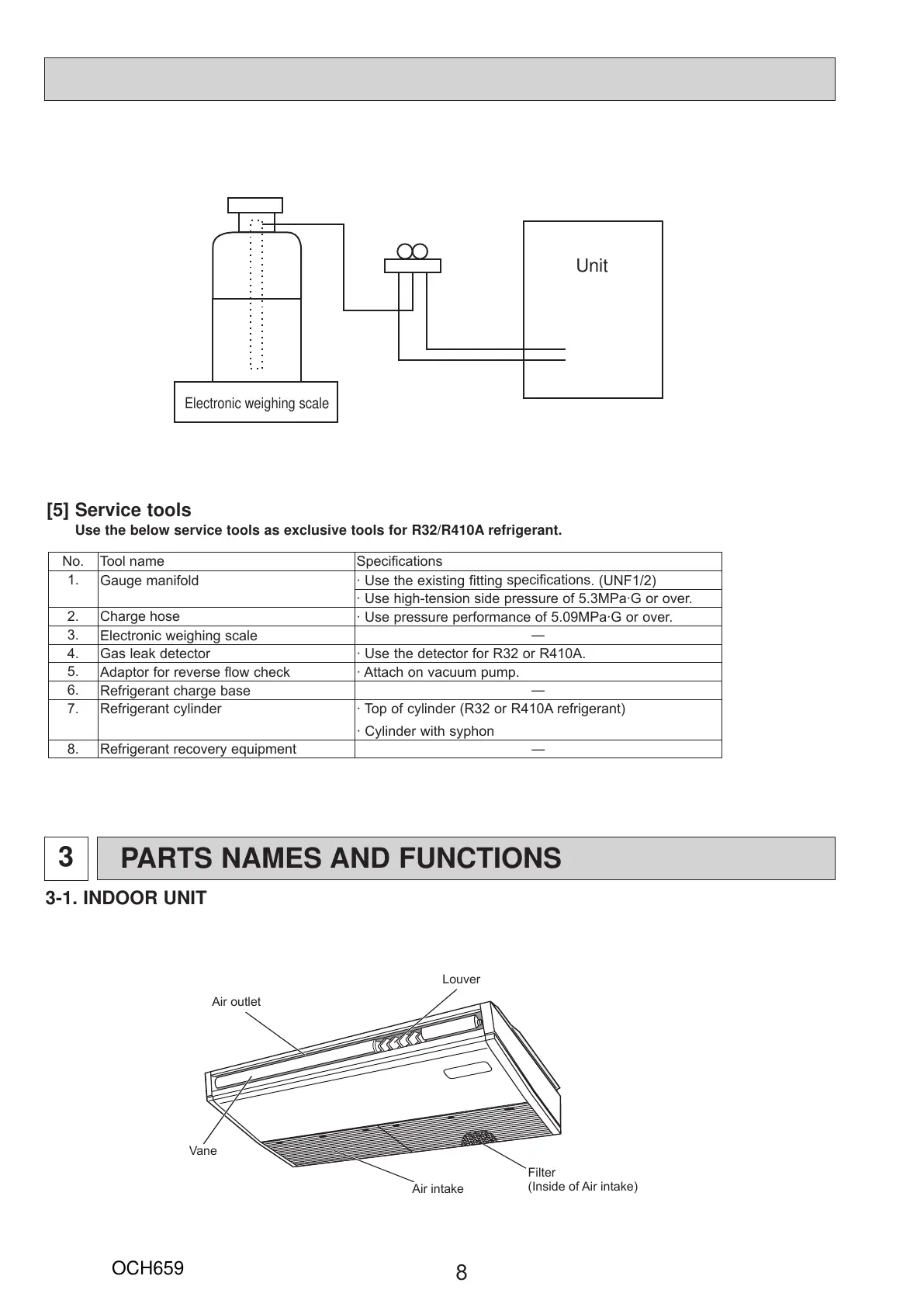

3-1. INDOOR UNIT
PARTS NAMES AND FUNCTIONS
3
Air outlet
Louver
Vane
Air intake
Filter
(Inside of Air intake)
Electronic weighing scale
Unit
[5] Service tools
Use the below service tools as exclusive tools for R32/R410A refrigerant.
No. Tool name Specications
1.
Gauge manifold · Use the existing fitting
specifications
. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2. Charge hose
· Use pressure performance of 5.09MPa·G or over.
3.
Electronic weighing scale
―
4.
Gas leak detector · Use the detector for R32 or R410A.
5.
Adaptor for reverse flow check · Attach on vacuum pump.
6.
Refrigerant charge base
―
7.
Refrigerant cylinder · Top of cylinder (R32 or R410A refrigerant)
· Cylinder with syphon
8.
Refrigerant recovery equipment
―
OCH659

Mitsubishi Electric Mr.Slim PUHZ-P100VHA5 Specifications

General

Cooling Capacity	10.0 kW
Heating Capacity	11.2 kW
Power Supply	220-240V, 50Hz
Refrigerant	R410A
Operating Temperature Range (Cooling)	-10 to 46°C
Operating Temperature Range (Heating)	-15 to 24°C
Type	Split System
Seasonal Energy Efficiency Ratio (SEER)	6.10
Dimensions (Outdoor Unit)	330 mm
