Mitsubishi Electric WD-52327 User Manual

MODEL: WD-52327 / WD-62327
Page 26
Activating & Selecting an Internal
Test Signal
1. Select an External Input with no signal.
2. Press the buttons “MENU”-“5”-“7”-“5”-“7” in
sequence. (Activates the Service Menu)
3. Select the “FPGA” function (AUDIO button)

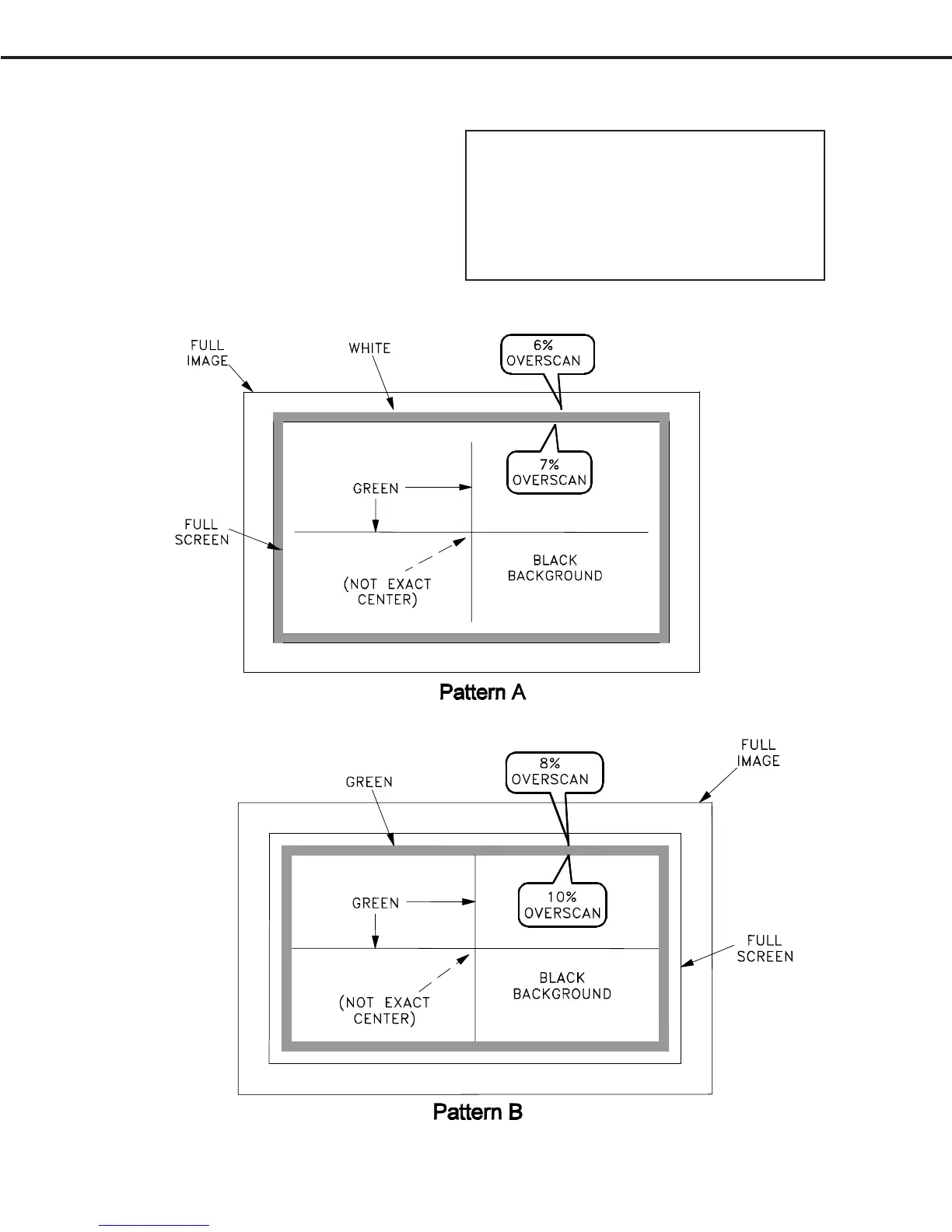

4. Press “1” for Pattern A, or “2” for Pattern B.
5. Press “9” to return to the Service Menu.
6. Press “MENU” to exit the Service Mode.
.
CAUTION
DO NOT press “MENU” (or HOME) without
pressing “9” first. (The Video Mute function will
not function properly.)
To correct the Mute function -- remove AC to
the TV, then reapply AC to reset the unit.

Mitsubishi Electric WD-52327 Specifications

General

Screen Size	52 inches
Display Technology	DLP
Contrast Ratio	5000:1
Brightness	1200 ANSI Lumens
Aspect Ratio	16:9
Number of Speakers	2
Speakers	Built-in
Inputs	HDMI, Component, Composite, S-Video
Resolution	1920 x 1080 pixels
