MODEL: WD-52327 / WD-62327
Page 29
Mechanical Adjustments
• To perform the mechanical adjustments, the TV must be on a flat level surface and a certain amount of disassembly
is required.
• Use internal Test Pattern B for all mechanical adjustments.

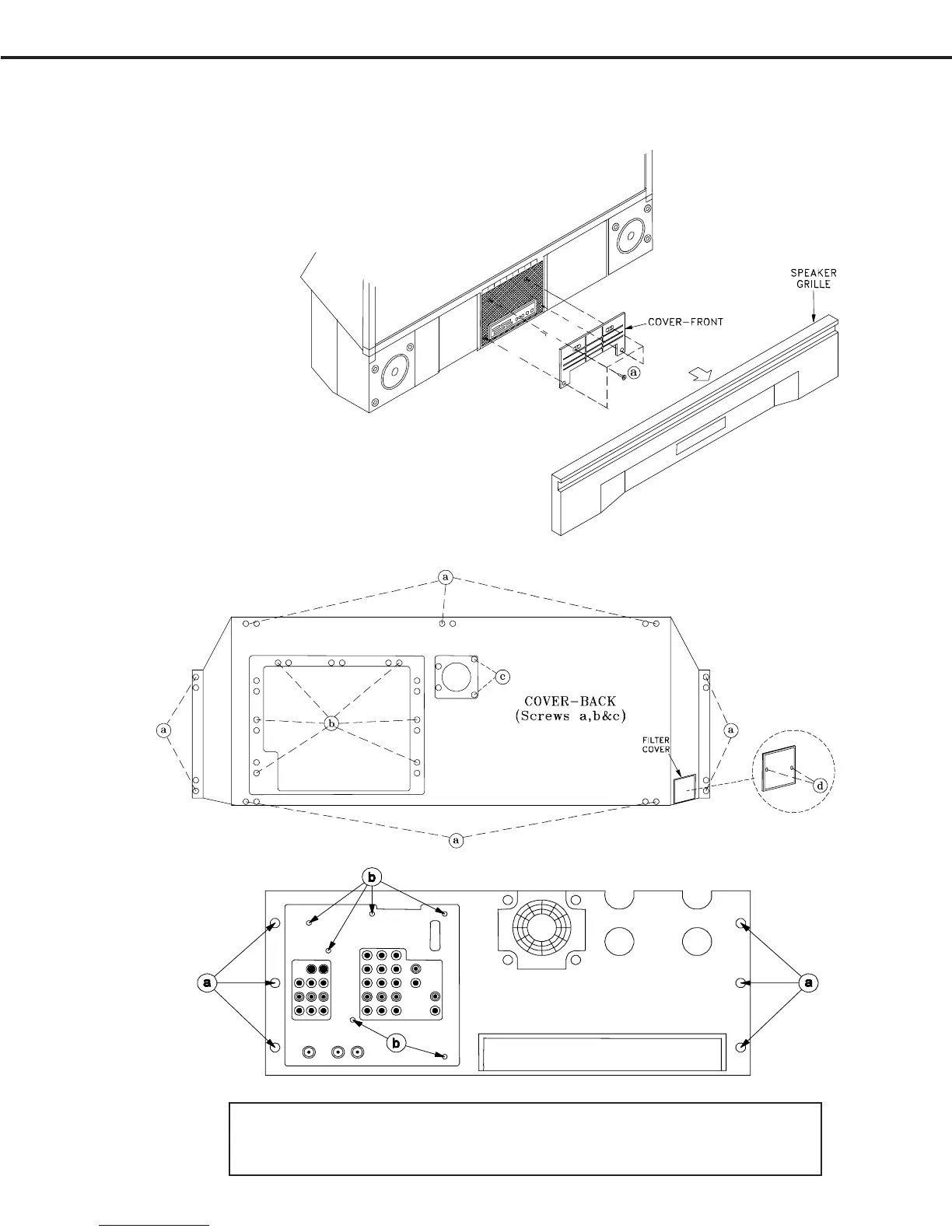

Front Disassembly
Refer to the diagram below for the Front Panel removal procedures.
Rear Disassembly
Refer to the to the diagrams below for the COVER-BACK and Rear Plate removal.
NOTE: To operate the TV with the COVER-BACK removed,
the FILTER-COVER must be reinstalled and the Exhaust Fan connected.

Mitsubishi Electric WD-52327 Specifications

General

Screen Size	52 inches
Display Technology	DLP
Contrast Ratio	5000:1
Brightness	1200 ANSI Lumens
Aspect Ratio	16:9
Number of Speakers	2
Speakers	Built-in
Inputs	HDMI, Component, Composite, S-Video
Resolution	1920 x 1080 pixels
