Page 24
MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-65638 / WD-73638 /
WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838
MIRROR REPLACEMENT

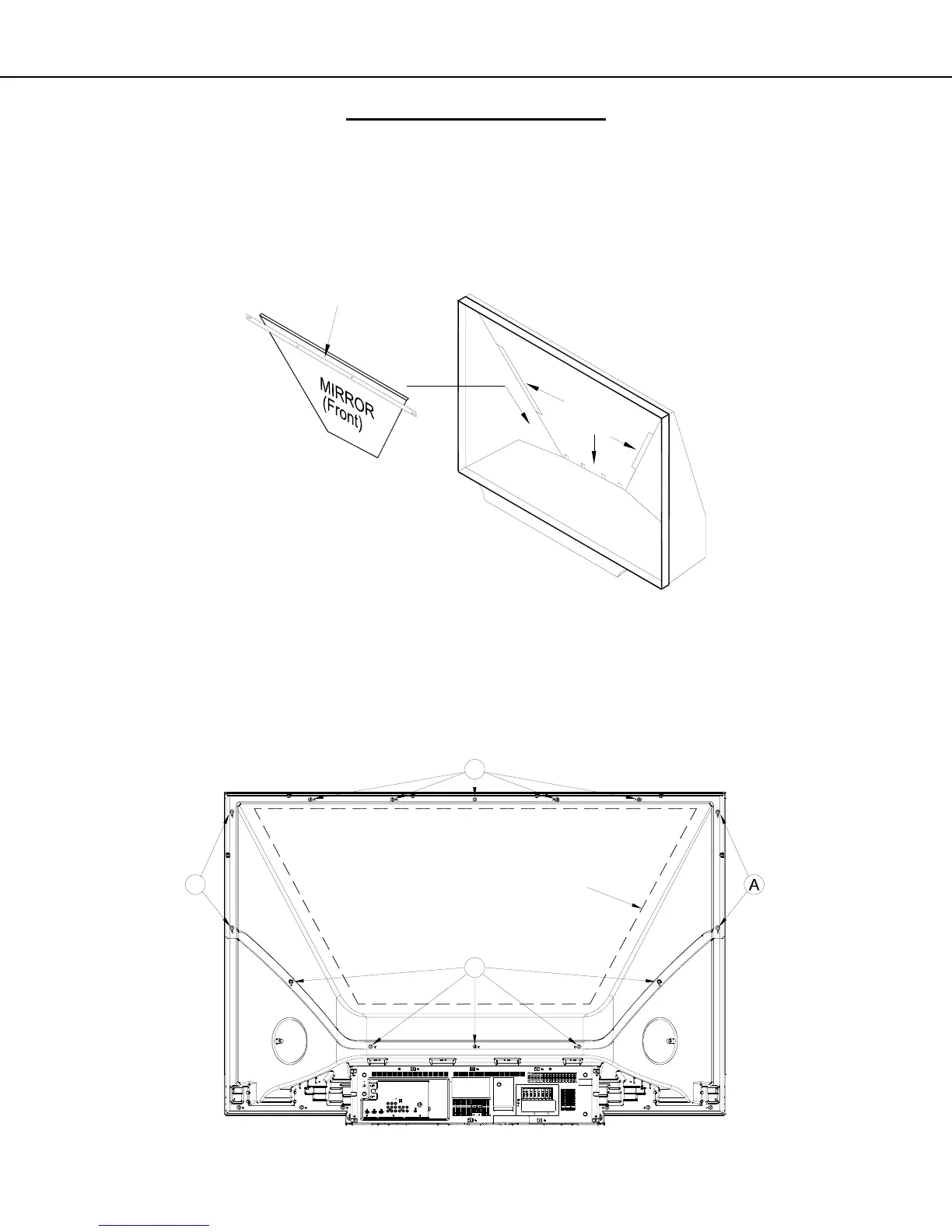

MIRROR REPLACEMENT - 60”, 65” & 73” Models
1. To access the Mirror for replacement, remove the Screen Assembly (See Screen Assembly Removal).
2. The Mirror slides down into the Left, Right and Bottom Brackets inside the cabinet.
3. For 73” models, a Top Bracket is installed.
4. See the Mirror Parts section for instructions on preparing a replacement mirror.
SUPPORT
BRACKETS
TOP BRACKET
(73" Models)
MIRROR REPLACEMENT - 82” Models
1. To access the Mirror for replacement, remove screws (A) and lift away the Mirror Cover.
2. The Mirror rests in place below the Mirror Cover.
3. See the Mirror Parts section for instructions on preparing a replacement mirror.
A
MIRROR
(Below Cover)
A
A
To Next Page
