Page 7
MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-65638 / WD-73638 /
WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838
DISASSEMBLY & PARTS REPLACEMENT
BACK COVER REMOVAL

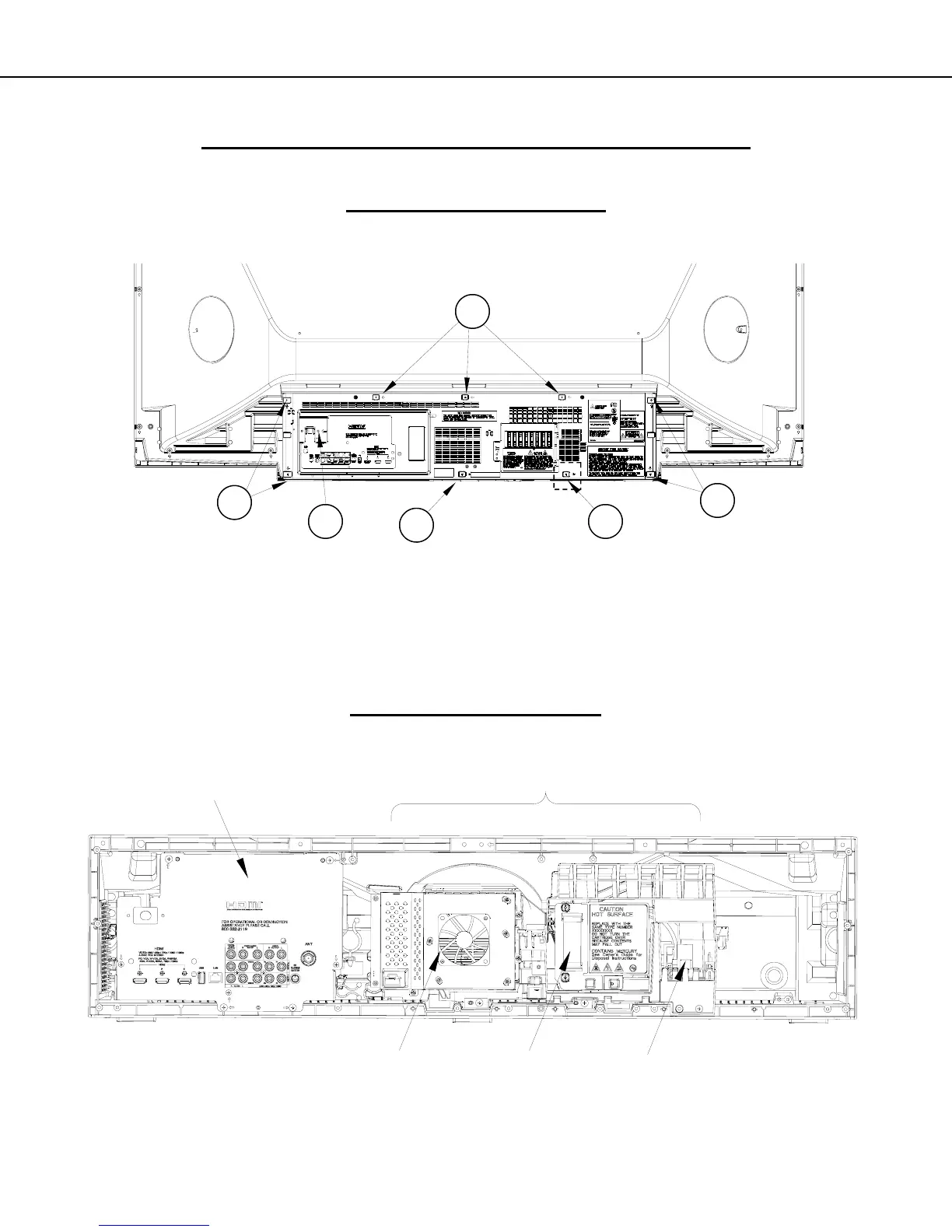

Back Cover Removal
1. Remove screws (A) from the back cover.
2. Remove the back cover from the TV.
A
A
A
A
A
A
73” & 82” Only
ASSEMBLY LOCATIONS
CHASSIS
OPTICAL ENGINE ASSEMBLY
DMD FAN LAMP PWB-BALLAST
