MODELS: WD-60C10 / WD-65C10 / WD-73C10 / WD-60638 / WD-65638 / WD-73638 /
WD-60738 / WD-65738 / WD-73738 / WD-82738 / WD-65838 / WD-73838 / WD-82838

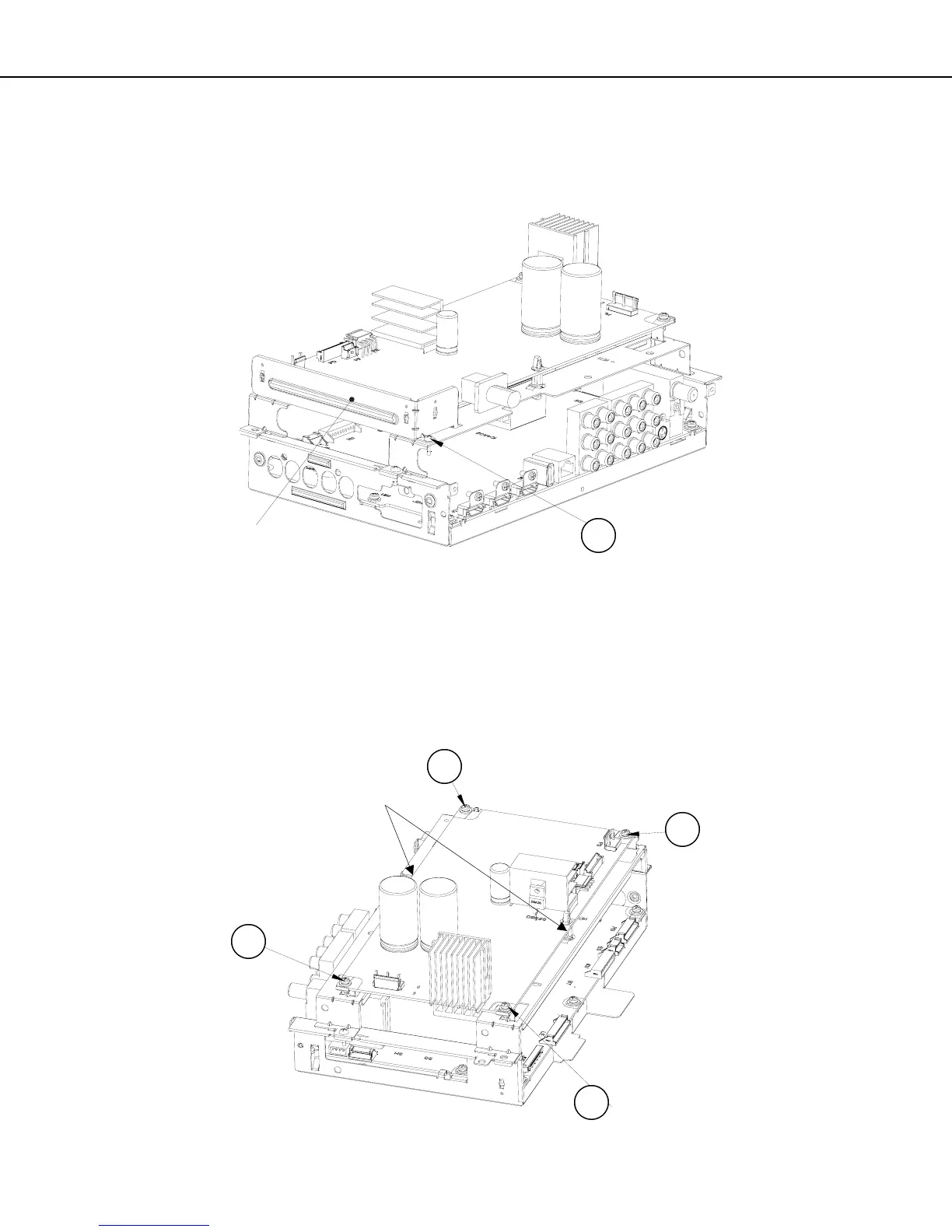

PWB-POWER Removal
1. Disconnect all cables from the PWB-POWER.
2. Remove screws (A).
3. Pinch the Retainers to release the PWB.
4. Lift the PWB-POWER from the chassis.
A
A
A
A
Power Supply Shield Removal
1. Remove screw (A).
A
POWER SUPPLY SHIELD
Retainers
(Pinch)
