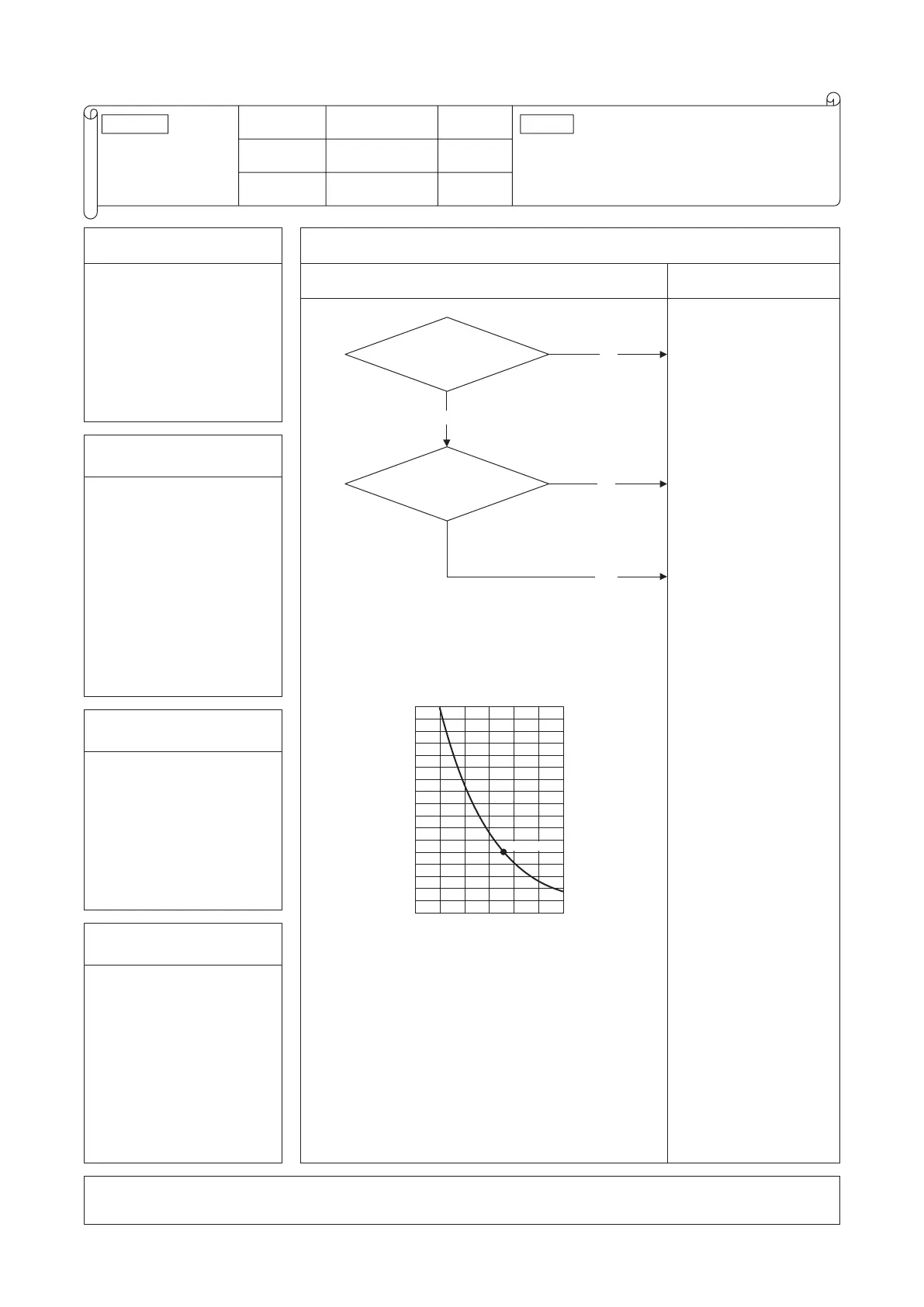

'19 • PAC-SM-309
-
126
-
Error code
Remote control:
LED Green Red
1-time flashKeeps flashing
Stays OFFKeeps flashing
Content
Indoor unit
control PCB
Outdoor unit
control PCB
E53
1. Applicable model
5. Troubleshooting
All models
Diagnosis Countermeasure
YES
NO
Are the
characteristics of suction pipe
temperature sensor OK?
YES
Is the connection
of suction pipe temperature sensor
connector OK?
NO
Temperature-resistance characteristics
Temperature sensor resistance (kΩ)
Temperature (°C)
15
10
5
010304020 50
5kΩ at 25°C
(Broken wire)
(Short-circuit)
Correct connection of
suction pipe temperature
sensor connector.
Defective suction
pipe temperature
sensor
➞
Replace.
Defective outdoor unit
main PCB
➞
Replace.
(Defective suction pipe
temperature sensor input
circuit)
2. Error detection method
When the suction pipe
temperature sensor detects
anomalously low temperature
3 .
Condition of error displayed
If the temperature sensor detects
-50°C or lower for 5 seconds
continuously within 10 minutes
to 10 minutes 20 seconds after
compressor ON, the compressor
stops. When the compressor
is restarted automatically after
3-minute delay, if this anomaly
ocuurs 3 times within 40
minute.
4. Presumable cause
• Defective suction pipe
temperature sensor
connection
• Defective suction pipe
temperature sensor
• Defective outdoor unit main
PCB
Note:
Suction pipe
temperature sensor anomaly
To Next Page
