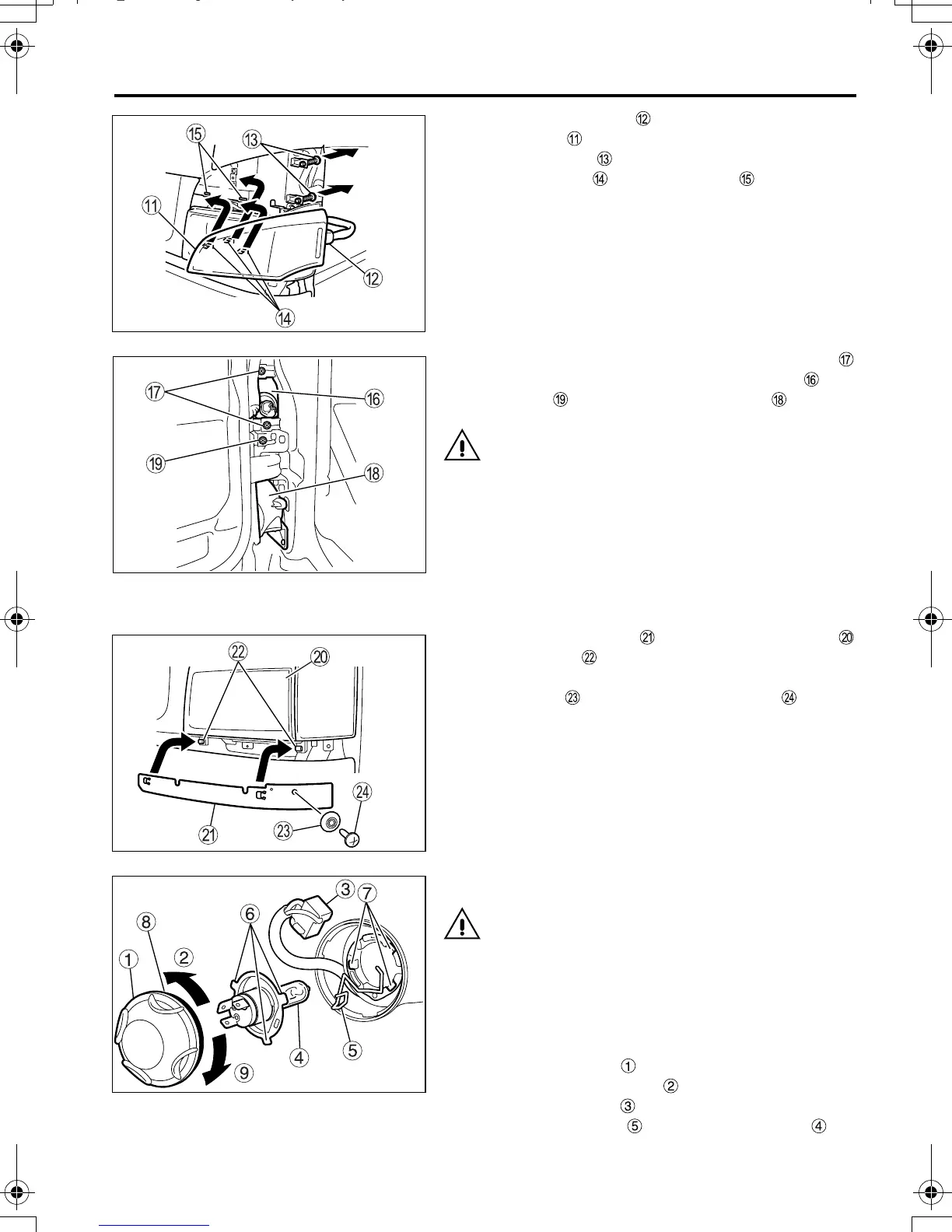

5. Install the connector on the front and side turn
signal lamp .
6. Pull out screws .
7. Align the tabs with the holes , then press
the lamp in toward the centerline of the vehicle.
8. Open the door, then tighten the screws
behind the front and side turn signal lamp and
the screw behind the dummy lamp .
CAUTION
• Press the front and side turn signal lamp
fully in toward the centerline of the vehicle. If
the lamp was not pressed fully into place
and you opened the door, the door could hit
the lamp and damage it.
• Do not tighten the screws too tightly or the
mounting could get damaged.
9. Fit the lamp rubber under the headlamp
onto the tabs by moving it toward the outside
of the vehicle.
10. Fit the rivet , then press in the screw .
1.2 Headlamp bulb replacement
CAUTION
Do not directly touch the glass part of a halogen
bulb with your fingers. Any oil and other sub-
stances contaminating the glass surface could
shorten the bulb’s service life.
• Removal
1. Remove the cover by pressing it and turning it
in the direction of arrow .
2. Pull the connector toward you to remove it.
3. Remove the spring that retains the bulb .
4. Remove the bulb.
Z11274
Z11624
Z11275
Z09155
