8 ZERO POINT RETURN CONTROL
Start time chart
Zero point absolute position underflow flag
[ Md.40 Status:b12]
Zero point absolute position overflow flag
[ Md.40 Status:b11]
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
100
OFF
OFF
V
t
ON
OFF
Positioning start signal
PLC READY signal
AD75 READY signal
Start complete signal
BUSY signal
Error detection signal
Cd.11 Positioning start No.
[Y1D]
[X0]
[X1]
[Y10]
[X4]
[XA]

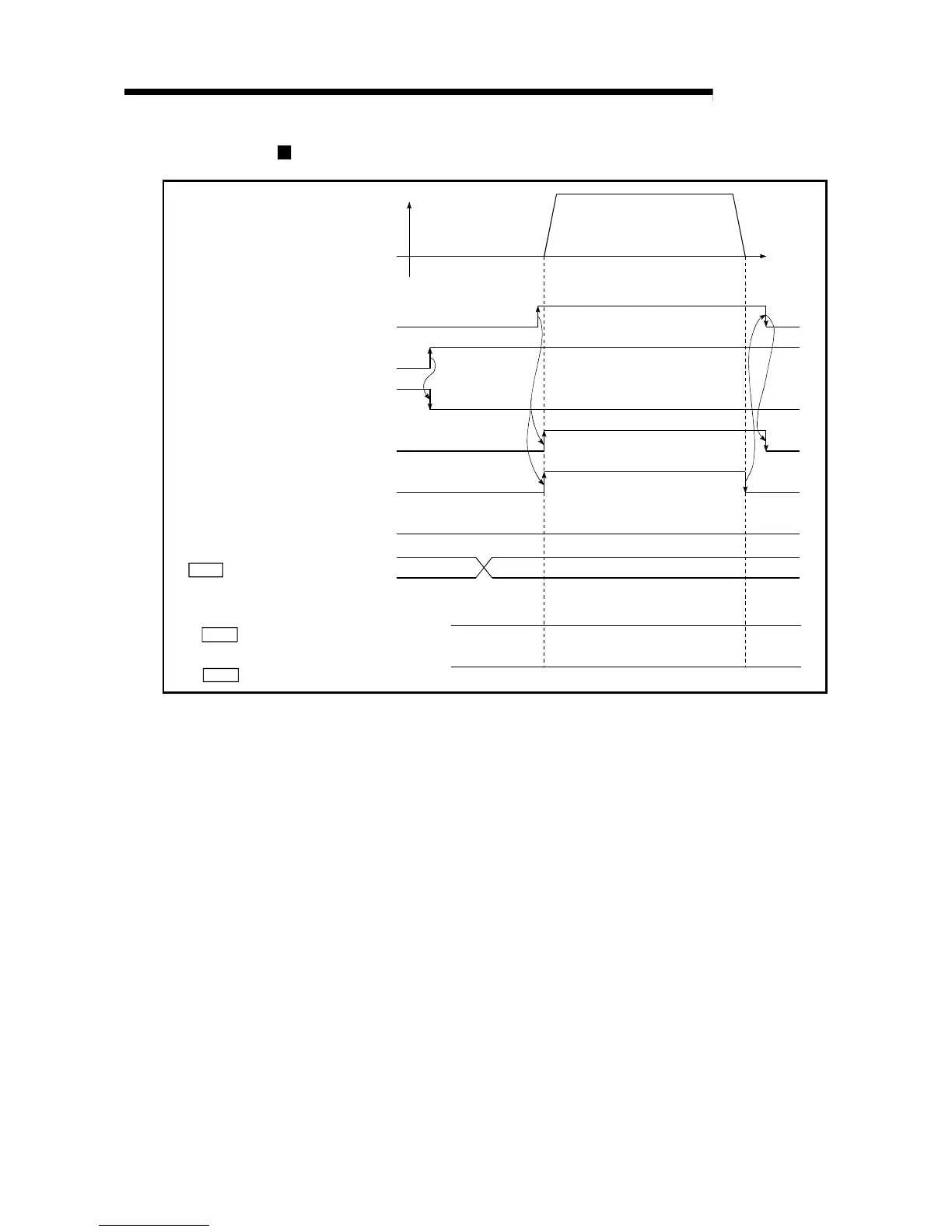

Fig. 8.14 Start time chart for positioning to the zero point
