4 - 10
MELSEC-A
4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
(11) To comply with EMC directive and low voltage directive, use shielded cables and
AD75CK cable clamp (made by Mitsubishi Electric) to ground to the panel.
AD75
20 to 30cm
AD75CK
Inside control panel

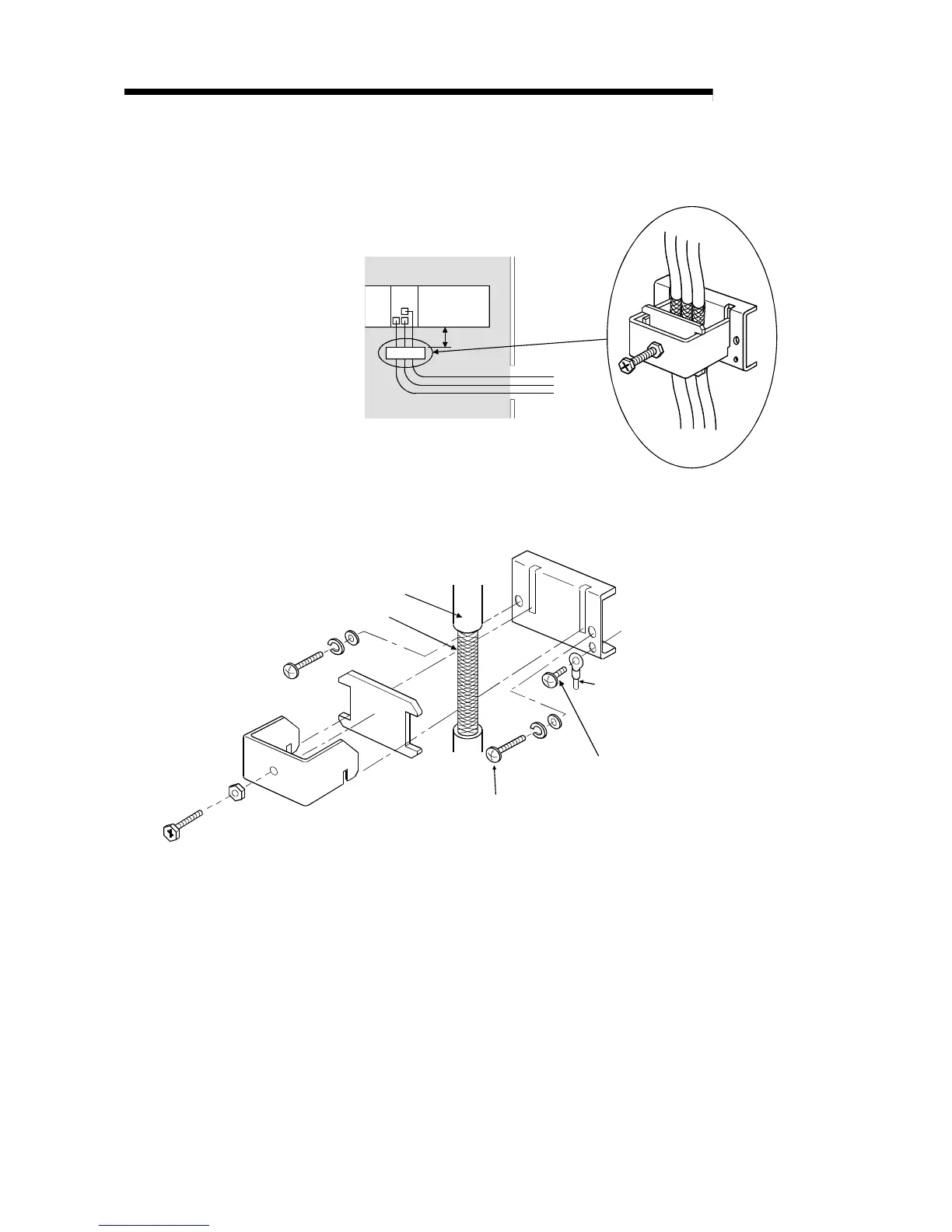

[How to ground shilded cable using AD75CK]
Shielded cable
Shielding wires
Screw for mounting to control cabinet (M4 screw)
Grounding terminal
Grounding terminal installation screw (M4x8 screw)
AD75CK can ground up to four shielded cables having about 7 mm or smaller outside
diameters. (For details, refer to AD75CK cable clamp operation manual <IB-68682>.)
