7 MEMORY CONFIGURATION AND DATA PROCESS
7.2 Data transmission process

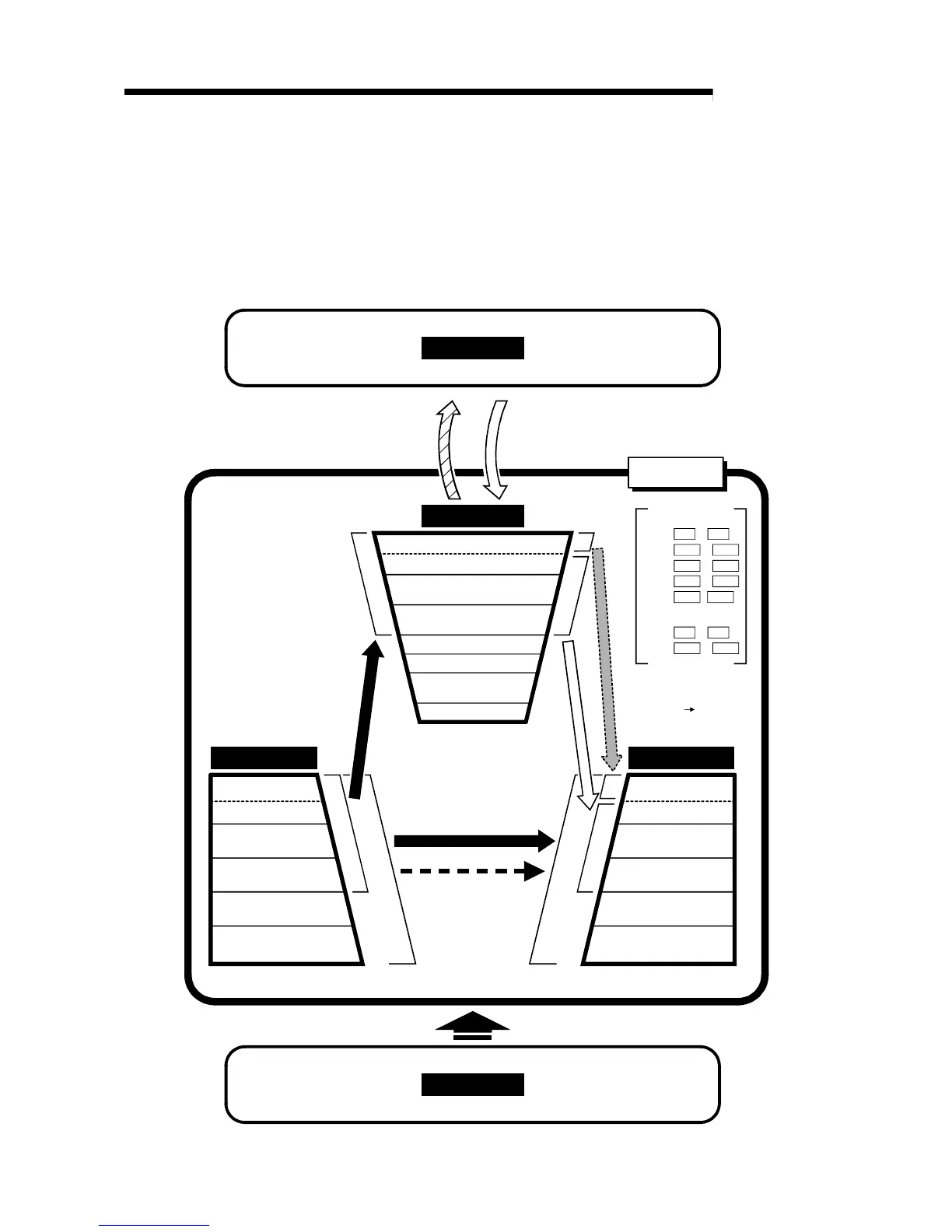

The data is transmitted between the AD75 memories with steps (1) to (11) shown
below.
• The data transmission patterns numbered (1) to (11) on the right page correspond
to the numbers (1) to (11) on the left page.
Parameter area (a)
Parameter area (b)
Positioning data area
(No.1 to 100)
Positioning data area
(No.1 to 100)
Positioning start information area
(No.7000)
Positioning start information
area (No.7000)
Positioning start information
area (No.7001 to 7010)
PLC CPU memory area
Block transmission area
Monitor data area
Control data area
Buffer memory
PLC CPU
Peripheral device
Flash ROM
ROM
Positioning data area
(No.101 to 600)
Parameter area (a)
Parameter area (b)
Positioning data area
(No.1 to 100)
Positioning start information
area (No.7000)
Positioning start information
area (No.7001 to 7010)
Positioning data area
(No.101 to 600)
Parameter area (a)
Parameter area (b)
OS memory
(5) Flash ROM read 1)
(5) Flash ROM request (read)
(1) Power ON reset
(3) TO command
(3)TO command(4)FROM command
(1) Power ON reset
AD75
Parameter area (a)
Pr.4
Pr.1
Pr.10
Pr.25
Pr.45 Pr.59
Parameter area (b)
Pr.9
Pr.7
Pr.26 Pr.44
to
to
to
to
to
(2) PLC READY signal
[Y1D] OFF ON
Pr.100
Pr.138
Pr.149
Pr.150
to
,
