8 - 20
MELSEC-A
8 ZERO POINT RETURN CONTROL
Operation timing and processing time of high-speed zero point returns
The following shows details about the operation timing and time during high-speed
zero point returns
t1
t3
t2
In position control
Standing by
Standing by
Positioning start
signal
BUSY signal
Start complete signal
Position command
Positioning operation
Md.35 Axis operation status
[Y10,Y11,Y12]
[X1,X2,X3]
[X4,X5,X6]

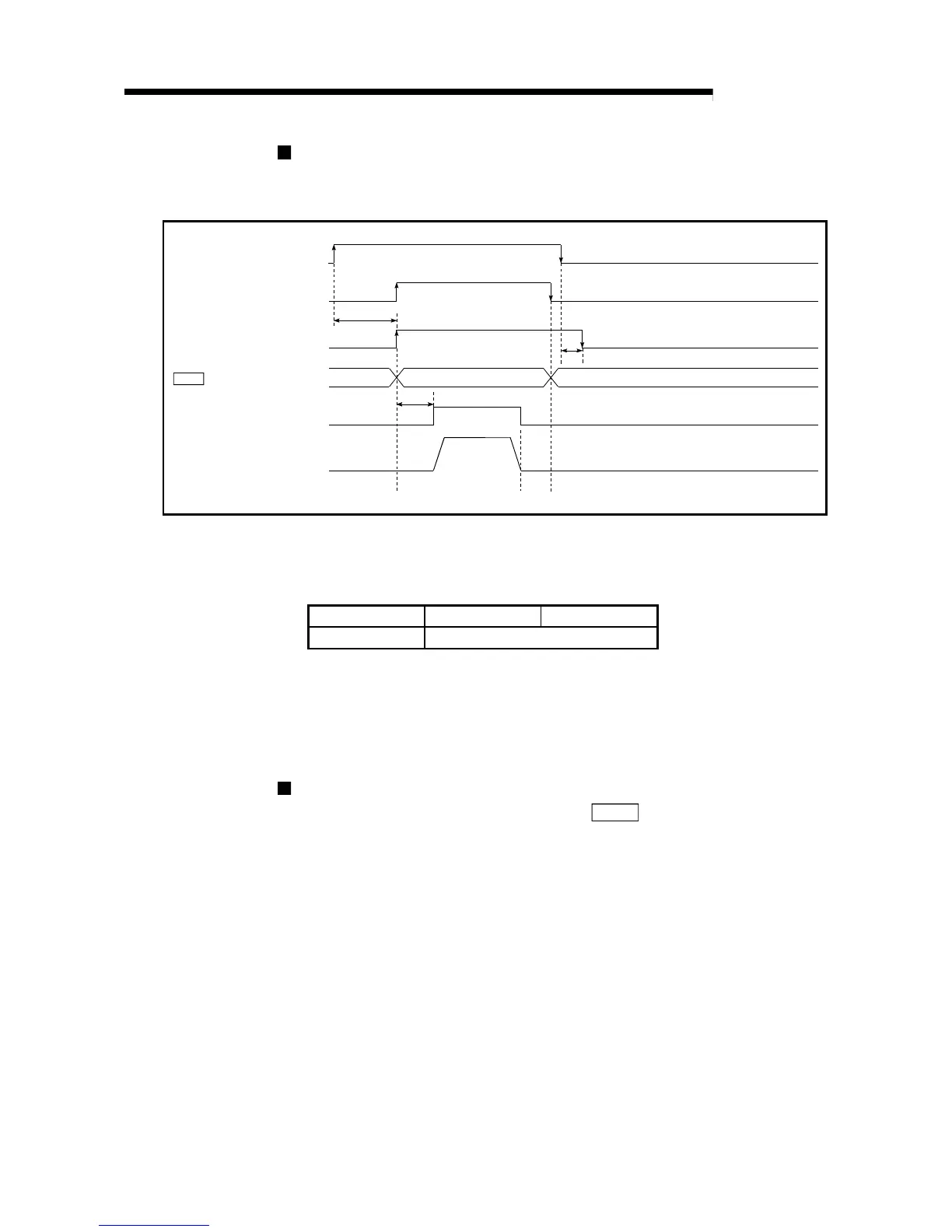

Fig. 8.13 Operation timing and processing time of high-speed zero point returns
Normal timing time Unit: ms
t1 t2 t3
5 to 15 0 to 3.5
•
The t1 timing time could be delayed by the following factors.
1) Presence of FROM/TO command execution during start process
2) Operation state of other axes
3) Presence of intervention from peripheral device during start process
4) Details of positioning data to be started
Operating restrictions
(1) When the zero point return complete flag (
Md.40
Status: b3) is ON, executing
a high-speed zero point return start will result in an error "zero point return
request ON" (error code: 207)".
(2) When the absolute position restoration mode is the "infinite length mode", an
error "outside start number range" (error code: 543) occurs at a high-speed
zero point return start.
