11 MANUAL CONTROL
Start time chart
Pulse input A phase
OFF
ON
ON
OFF
OFF
OFF
1
t
OFF
00
1
Forward run
Reverse run
ON
Pulse input B phase
BUSY signal
AD75 READY signal
PLC READY signal
Start complete signal
Error detection signal
[Y1D]
[X0]
[X1]
[X4]
[XA]
Cd. 22 Manual pulse generator
enable flag
Cd. 23 Manual pulse generator
1 pulse input magnification

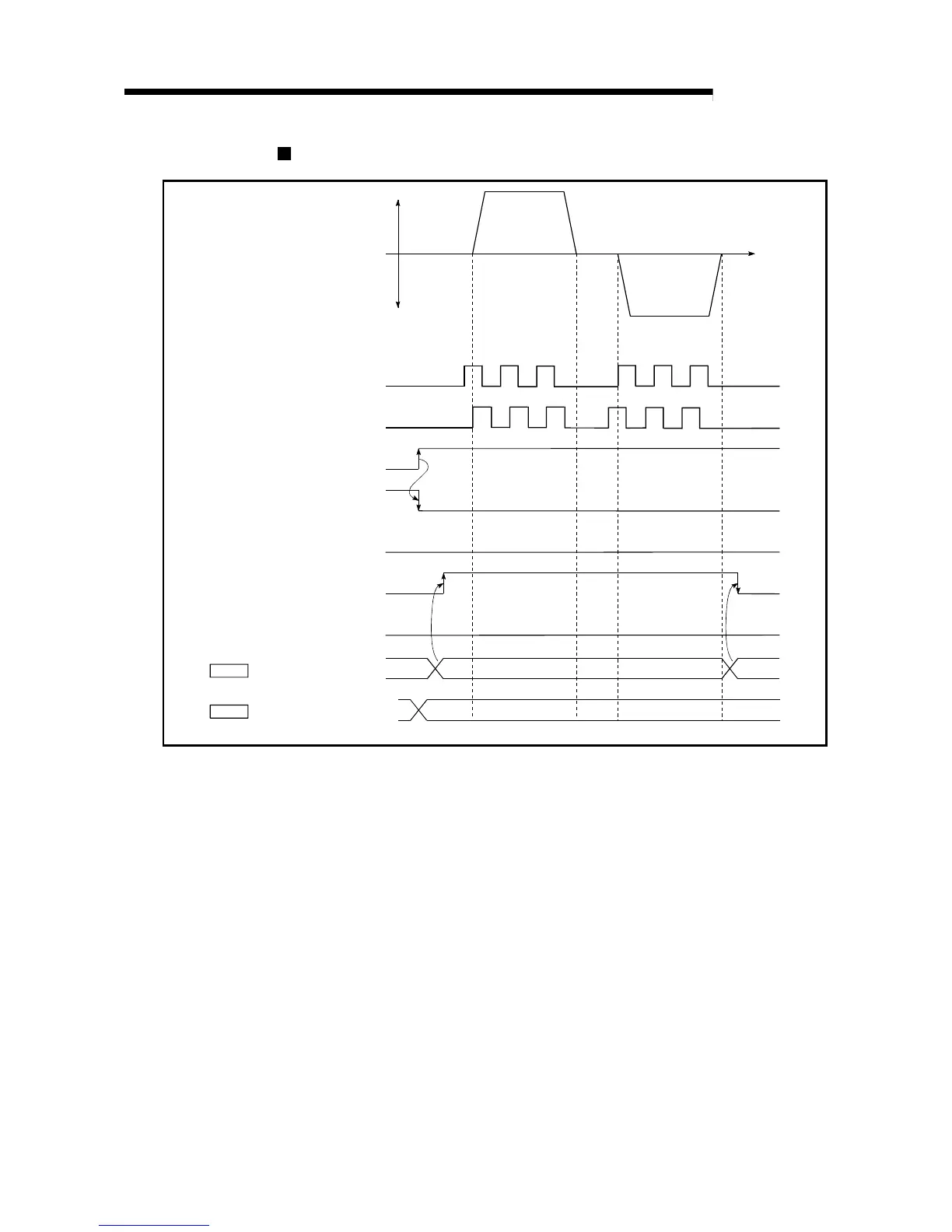

Fig. 11.13 Manual pulse generator operation start time chart
