12 - 21
MELSEC-A
12 CONTROL AUXILIARY FUNCTIONS
(1) Control details

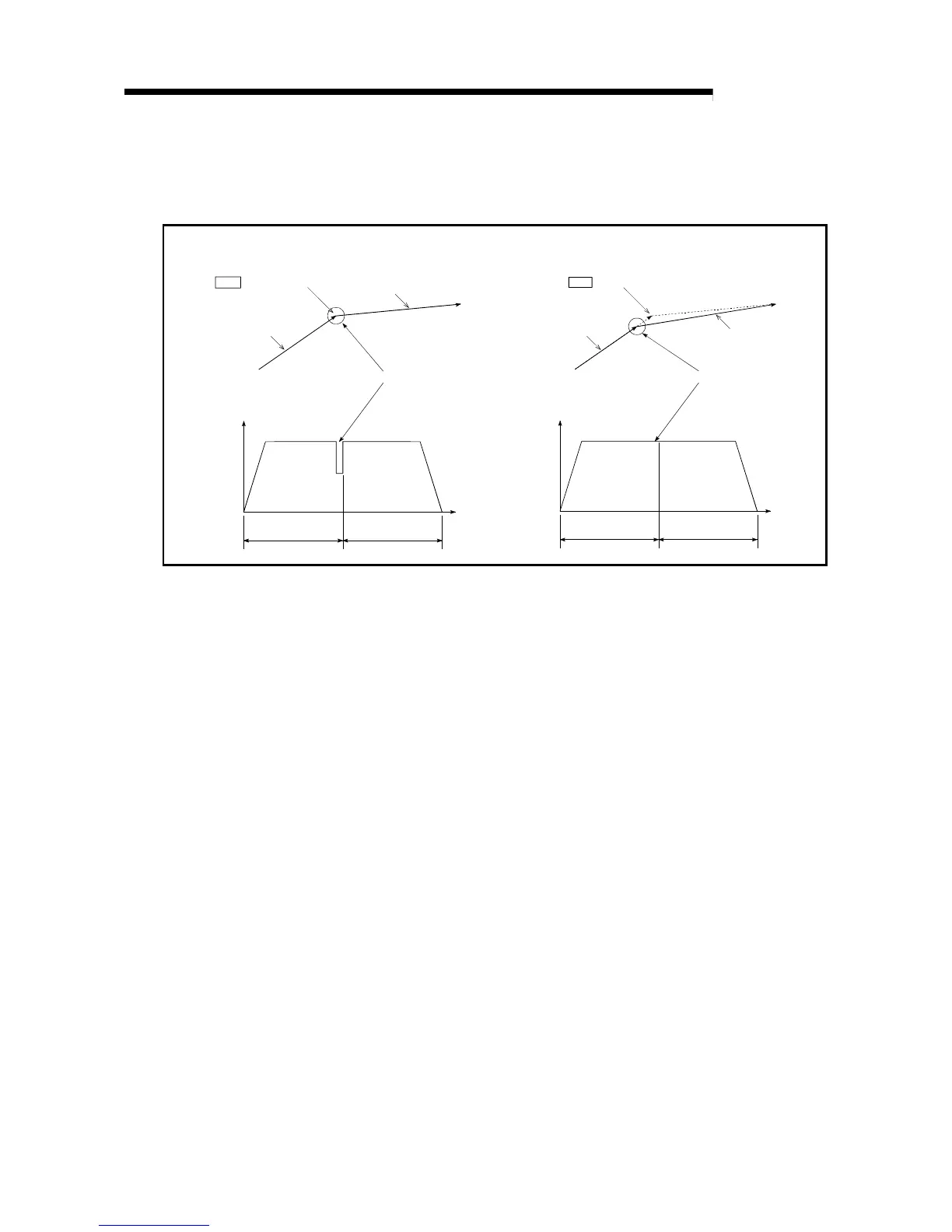

The following drawing shows the paths of the "positioning address pass mode"
and "near pass mode".
[Positioning address pass mode path] [Near pass mode path]
Da. 5 Positioning address
Path of positioning data No. 4
V
t
Positioning data No. 3
Speed dropping occurs
Path of positioning data No.3
Positioning data No. 4
Da. 5 Positioning address
Path of positioning data No.3
V
t
Positioning data No. 3
Speed dropping does not occur
Positioning data No. 4
Path of positioning data No.4
Fig. 12.11 Paths of the positioning address pass mode and near pass mode
