4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT

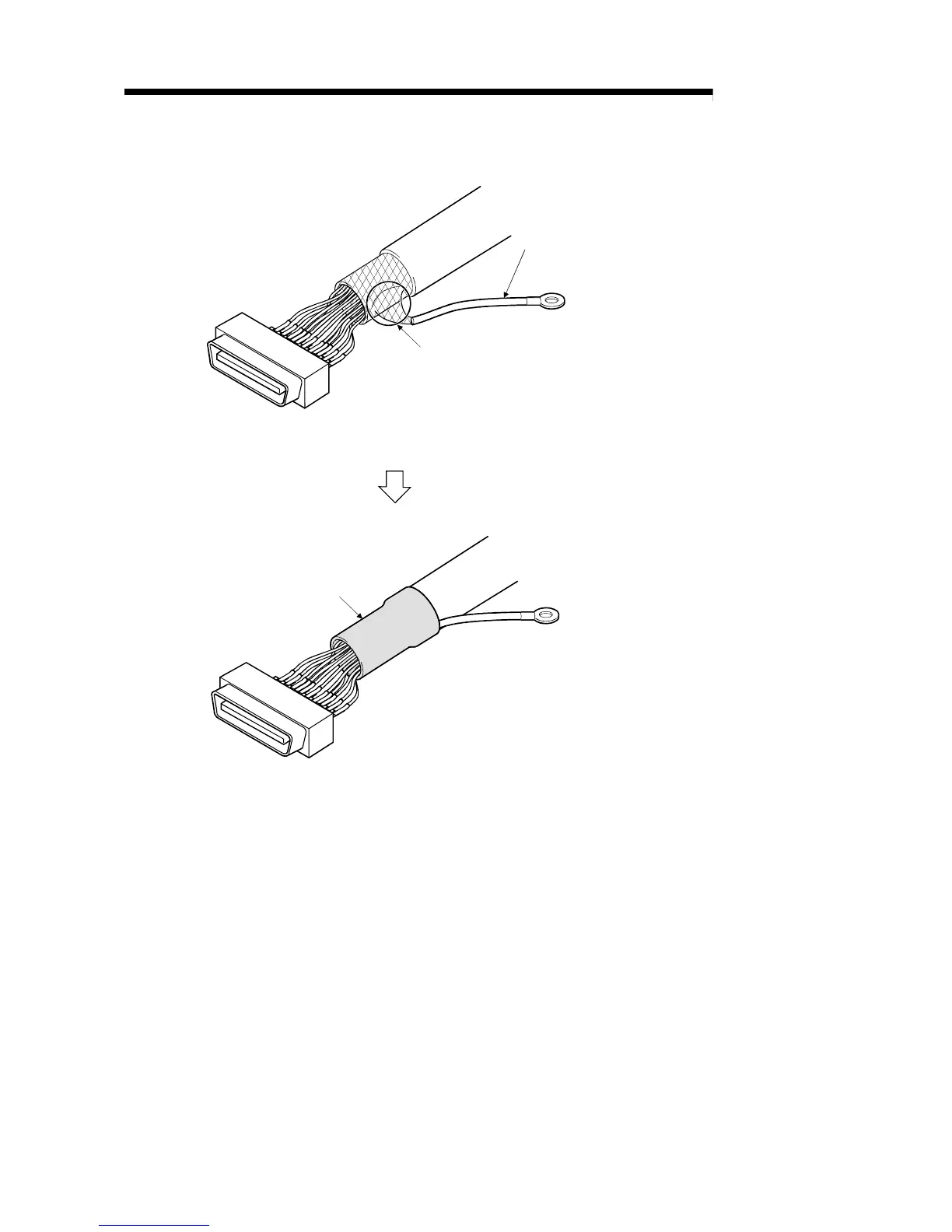

[Shielding wire processing example]
Ground a 2mm
2
or a thicker grounding wire
in the shortest path.
(Ground to the panel of the AD75 securely.
)
Strip the sheath of the shielded cable.
Remove the shielding wires from the
shielded cable and solder them to the
grounding cable.
Wrap with insulating tape.
