4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
(3) Assembling the connector section
(a) Fit the soldered connector and cable fixture into the connector
cover.
* The cable fixture acts as a stopper to protect the signal wire connection
section when the cable is pulled on. If the cable is not sufficiently
tightened with the cable fixture, wind insulation tape around the cable so
that it can be sufficiently tightened and pressed down.
(b) Sandwich the parts with the connector cover, and tigthen
screw A.

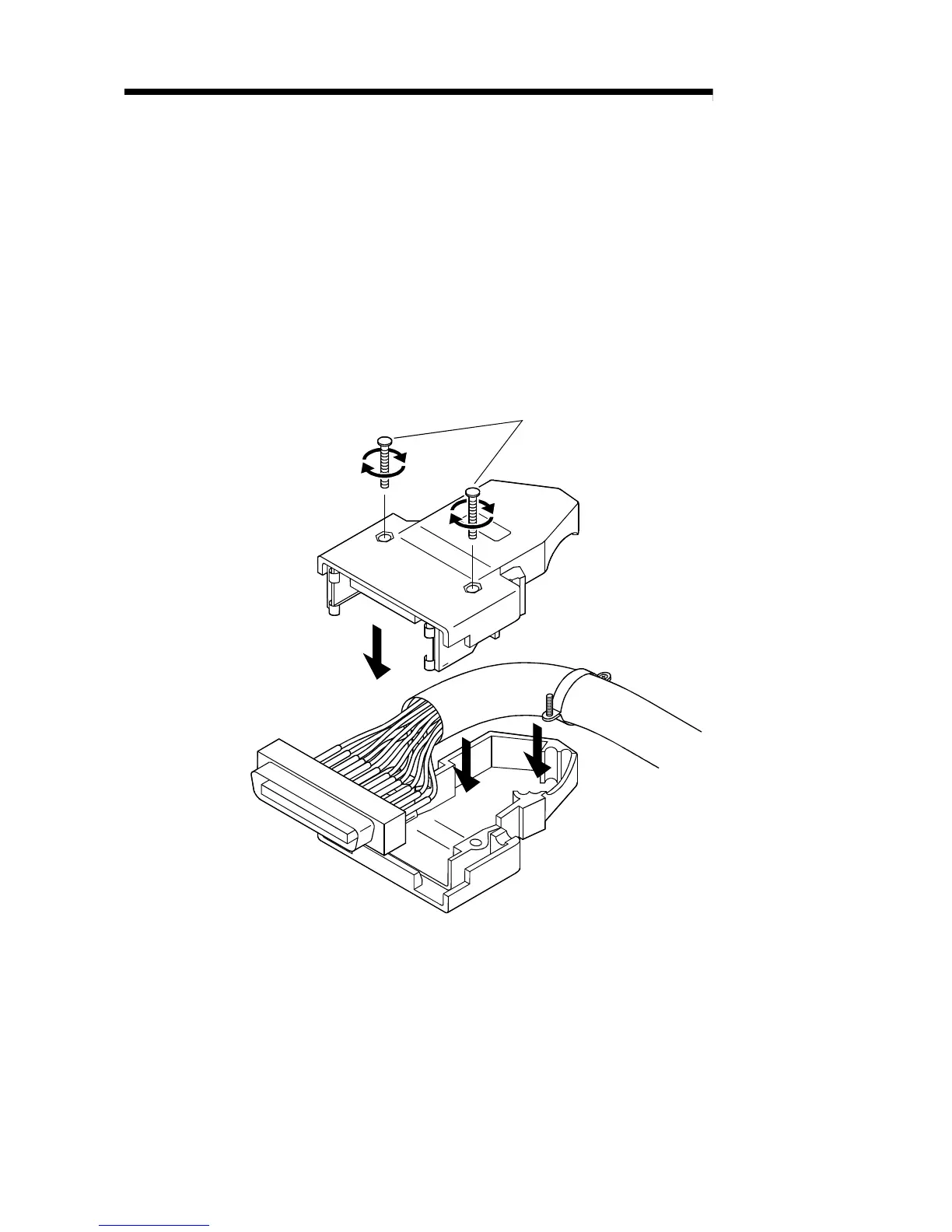

The following figure shows the case of the AD75M1/AD75M2/AD75M3.
A
* In the case of the A1SD75M1/A1SD75M2/A1SD75M3, the orientation of
the connector is opposite. (Refer to section "4.1.2 Names of each part".)
