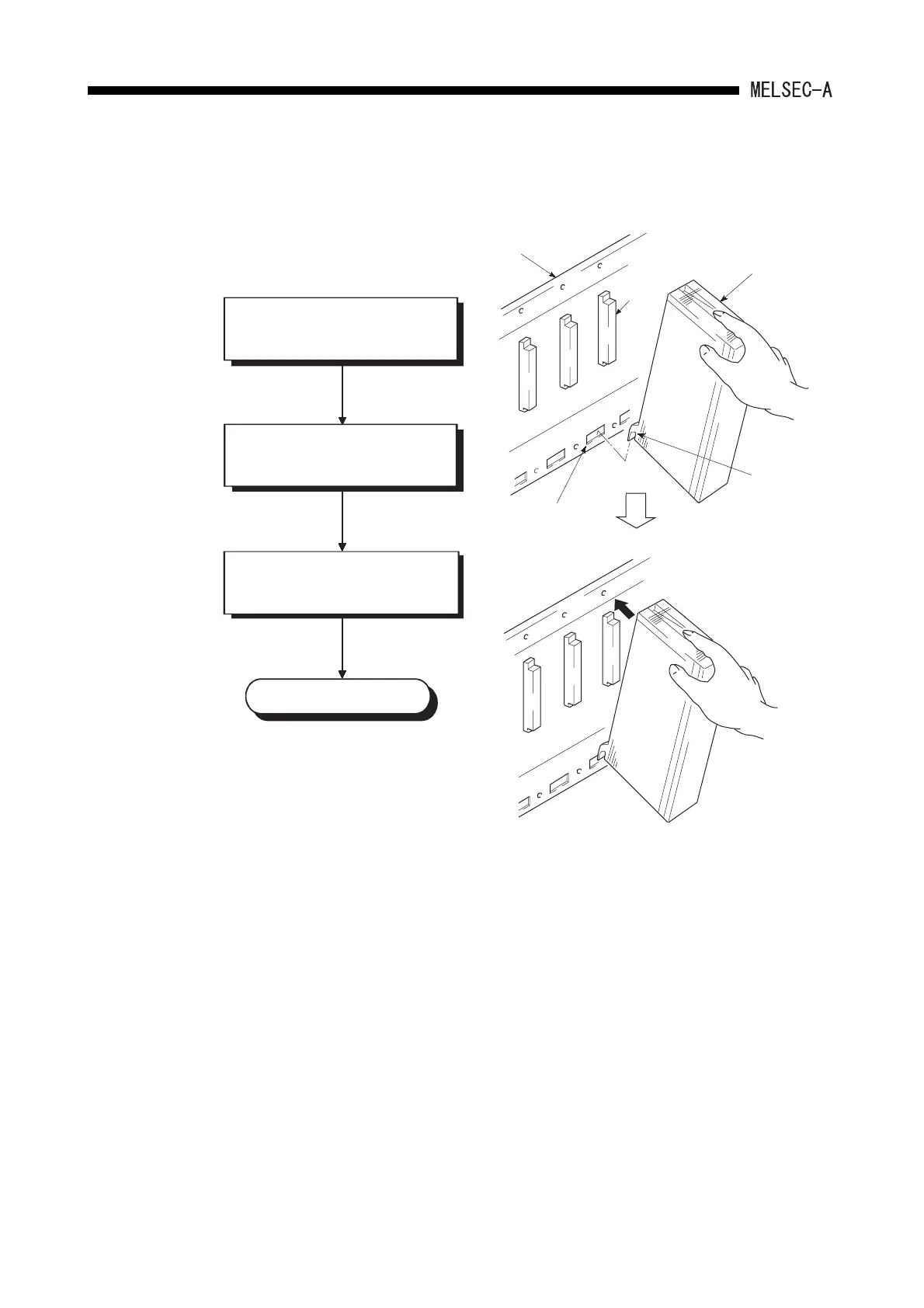

(1) Module installation
Installation procedure of the module is explained.
Insert the module fixing projection
of the module into the module fixing
hole.
Install the module to the base unit
by pushing it in the direction of the
arrow.
Confirm that the module is firmly
inserted to the base unit, then
fix it with the module fixed screw.
Complete
Base unit
Module
Module fixing hole
Projection
for fixing
the module
Module
connector
