SYSTEM CONFIGURATION2.
2.1.2 Overall configuration of A1SJHCPU(S8)

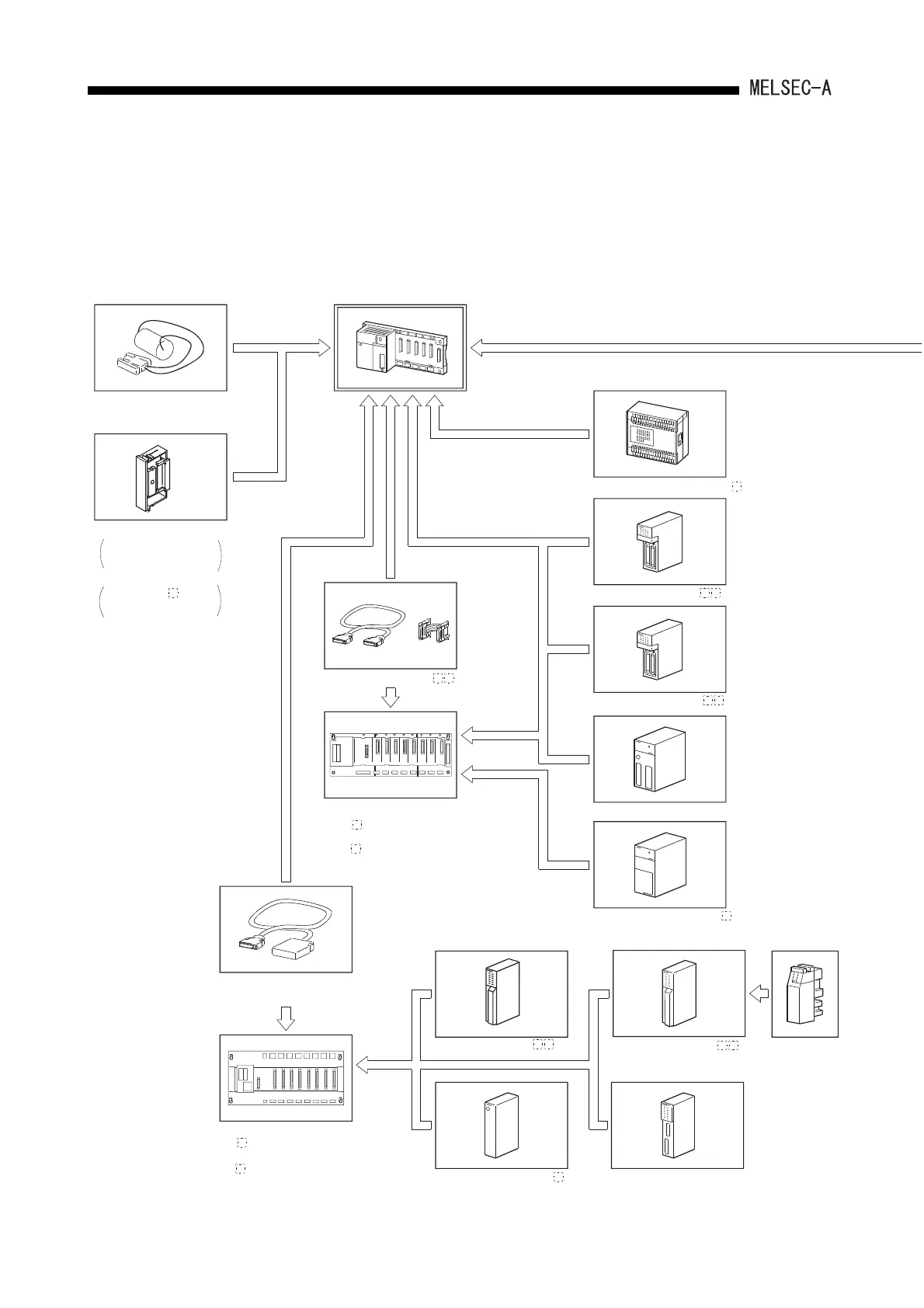

The following figure shows configurations of a A1SJHCPU(S8) stand-alone system and
peripheral device.
Battery (A6BAT)
ROM cassette
A1SJHCPU(S8)
(To peripheral device)
Thin type I/O module (A1SJ-56 )
Extension cable (A1SC05NB)
[Building block type]
Extension base
(A5 B)
:Without a power supply module
(A6 B)
:With a power supply module
Input module (AX )
Power supply module (A6 P)
Special function module
Output module (AY )
Fuse
with E PROM
A1SNMCA- KE
2
A1SNMCA-8KP
with EP-ROM
Input module (A1SX )
Output module (A1SY )
Special function module
Power supply module (A1S6 P)
Extension cable (A1SC B)
Extension base
(A1S5 B(S1))
:Without a power supply module
(A1S6 B(S1))
:With a power supply module
