Mitsubishi A1SJH(S8) - 2.1.1 Overall configuration of AnSHCPU

2 - 1
2. SYSTEM CONFIGURATION
2 SYSTEM CONFIGURATION
This chapter describes the applicable system configurations, cautions on configuring a
system, and component devices of the AnSHCPU.
2.1 Overall Configuration
2.1.1 Overall configuration of AnSHCPU

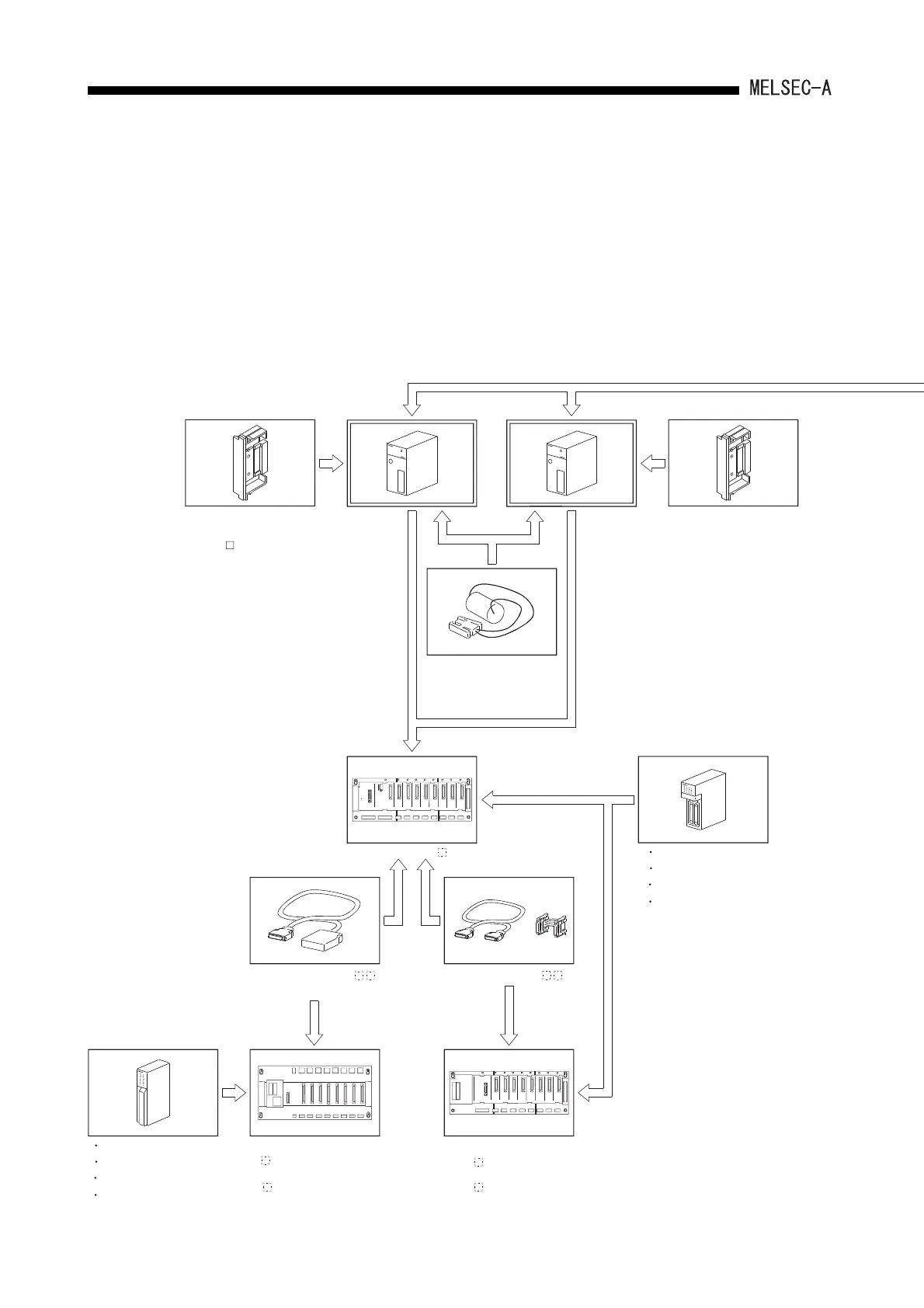

The following figure shows configurations of an AnSHCPU stand-alone system and a
peripheral device.
ROM cassette
(A1SNMCA-8KP with EP-ROM)
A1SHCPU
A2SHCPU(S1)
Main base(A1S3 B)
Extension cable (A1SC0 NB)
[Building-block type]
Extension base
(A6 B)
: with a power supply module
(A5 B)
: without a power supply module
Extension base
(A1S6 B(S1))
: with a power supply module
(A1S5 B(S1))
: without a power supply module
(To peripheral devices)
Extension cable (A1SC NB)
Battery (A6BAT)
ROM cassette
(A2SNMCA-30KE with E PROM)
2
Power supply module
Input module
Output module
Special function module
Power supply module
Input module
Output module
Special function module
(A1SNMCA- KE with E
2
PROM)
