1 - 2
MELSEC-A
1 PRODUCT OUTLINE
1.1 Positioning control
1.1.1 Features of AD75
The features of the AD75 are shown below.
(1) Connection to servo amplifier by SSCNET
(a) Having the SSCNET interface for connection to the servo amplifier (MR-H-
B (MR-H-BN), MR-J-B, MR-J2-B, MR-J2S-B, MR-J2-03B5), the AD75 can
be connected directly to the Mitsubishi servo amplifier on the SSCNET.
(b) The SSCNET cables are used for connection between the AD75 and servo
amplifier or between the servo amplifiers, saving the wiring.
(c) The servo parameters can be set on the AD75 side and transferred to the
servo amplifier by the SSCNET.
(d) The error definition that the servo has can be checked in the AD75 buffer
memory.

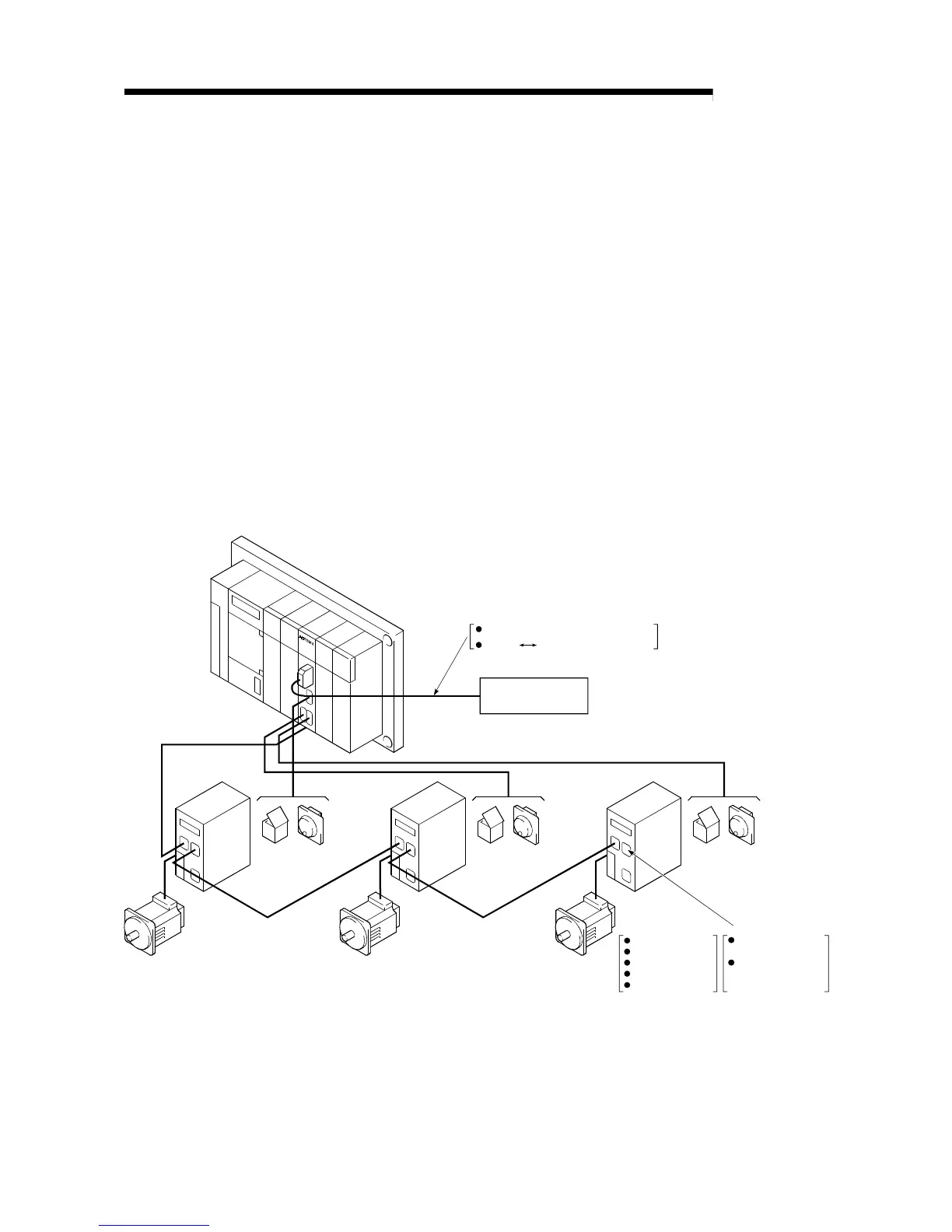

SSCNET
SSCNET
Machine system input:
6 points/axis
Manual pulse generator:
(MR-HDP-01) 1 pc./axis
Servo amplifier
corresponding SSCNET
Peripheral device
(Refer to Section 2.1)
RS-422 cable
RS-232 RS-422 conversion cable
SSCNET
Terminal connector
MR-TM (MR-H-B
(MR-H-BN), MR-J-B)
MR-A-TM (MR-J2-B,
MR-J2S-B,
MR-J2-03B5)
MR-H-B(MR-H-BN)
MR-J-B
MR-J2-B
MR-J2S-B
MR-J2-03B5
To Next Page
