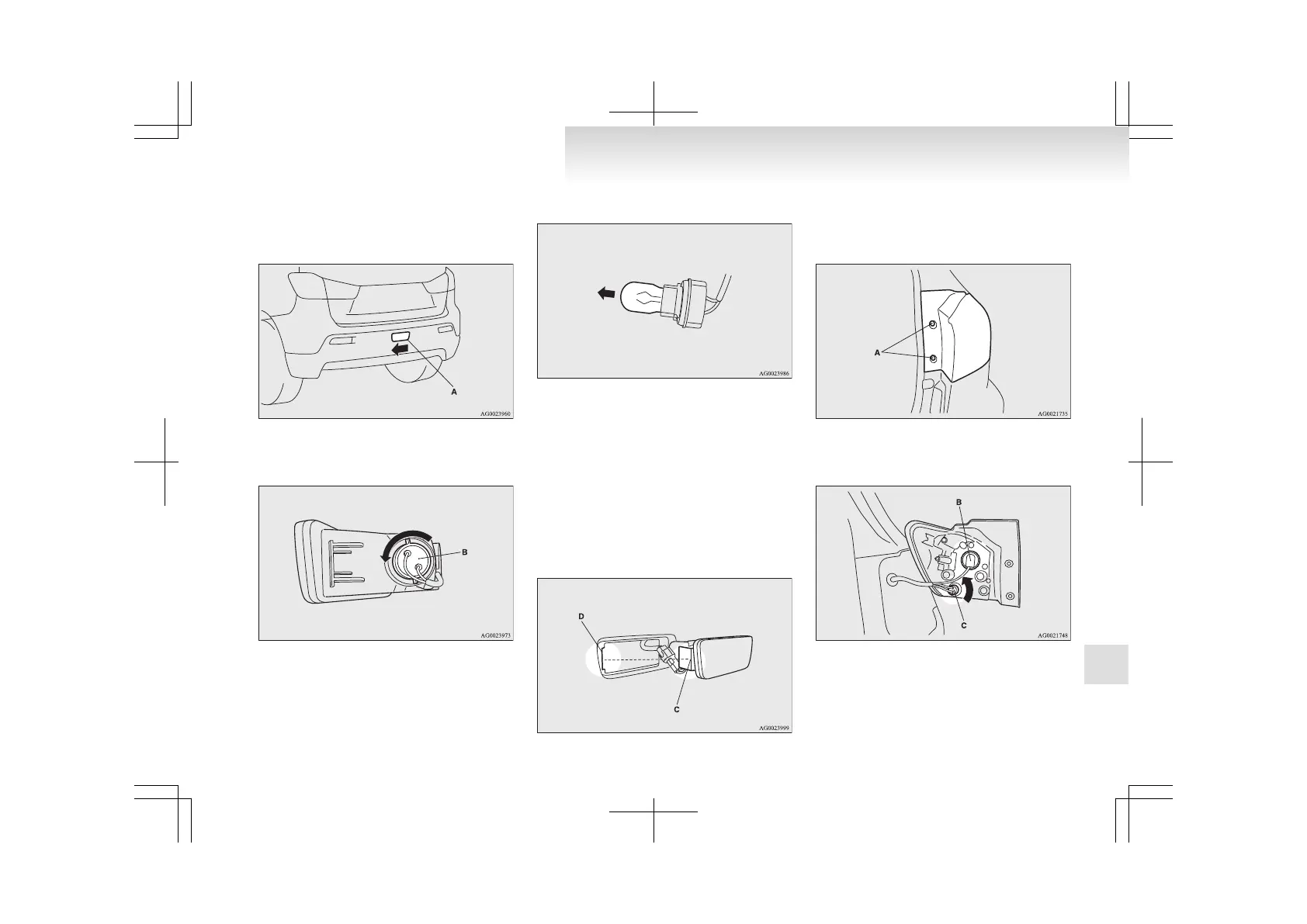

Rear fog lamp
E01004100456
1.
When removing the lamp unit (A), push it to-
wards the left side of the vehicle body.
2. Remove
the socket (B) and bulb assembly by
turning it anticlockwise.
3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
NOTE
l
If the wiring harness is pulled off the 2 har-
ness guides on the lamp unit while replacing
the bulb, make sure to secure the wiring har-
ness to the harness guides.
l
When installing the lamp unit, first insert the
tab (C) into the groove (D) on the body, and
then push on the lamp unit to fit it into place.
Rear combination lamps
E01004201366
1. Remove
the screws (A) that hold the lamp
unit and remove the lamp unit.
2. Turn the socket and bulb assembly anticlock-
wise to remove it.
B- Stop and tail lamp (LED) - cannot be replaced
C- Rear turn-signal lamp
