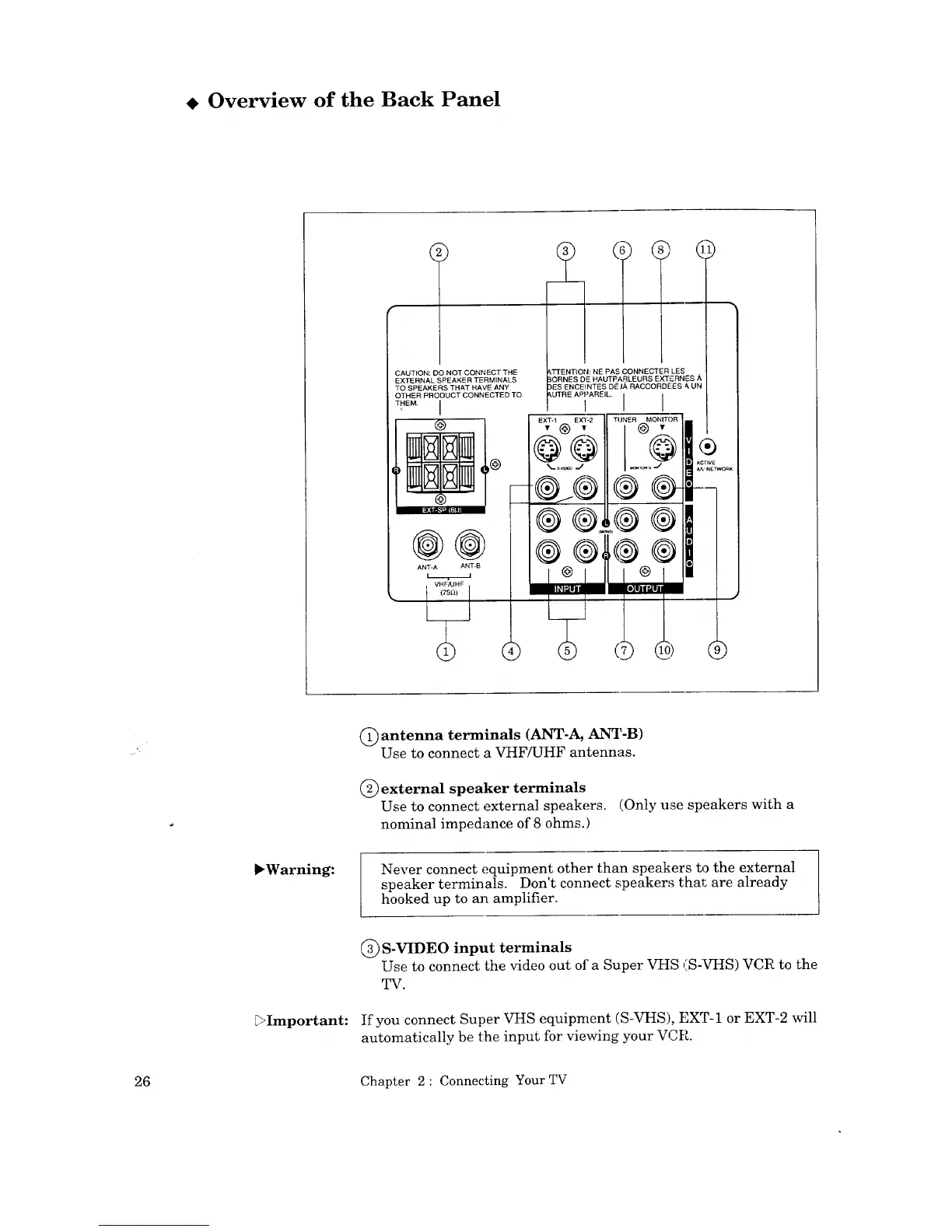

Overview of the Back Panel
CAUTION: DO NOT CONNECT THE
EXTERNAL SPEAKER TERMINALS
TO SPEAKERS THAT HAVE ANY
OTHER PRODUCT CONNECTED TO
T.EM. [
@@
ANT-A ANT-B
PAS CONNECTER LES
HAUTF_ARLEURS EXTERN_S/_
-NCEINTES DEJA RACCORDEES & UN
EX_ Ex?2 @
®
®®®®
®®,®®
"L
C) antenna terminals (ANT-A, ANT-B)
Use to connect a VHF/UHF antennas.
C) external speaker terminals
Use to connect externa] speakers. (Only use speakers with a
nominal impedance of 8 ohms.)
_Warning: Never connect equipment other than speakers to the external
speaker terminals. Don't connect speakers that are already
hooked up to an amplifier.
_Important:
(_ S-VIDEO input terminals
Use to connect the video out of a Super VHS (S-VHS) VCR to the
TV.
If you connect Super VHS equipment (S-VHS), EXT-1 or EXT-2 will
automatically be the input for viewing your VCR.
26 Chapter 2: Connecting Your TV
